90100 Dual Limit Temperature Control

With Sensor Averaging



  • Multiple Sensor Option (2 or32) (Using individual and/or dual sensor assemblies)
  • Sensor Averaging (Average operating limit, high limit or both)
  • Easy Remote Sense (Electronic sensors, wired to control)
  • Smart Manual Reset (Manual reset only if operating limit doesn’t open)
  • Serviceman reset protection (Latch-up after three consecutive lockouts) Latch-up mode shuts down the control after three consecutive lockouts and requires a special procedure to reset. This ensures the owner will call in a licensed technician to troubleshoot and correct burner problems.
  • Power-independent Lockout (Power cycling won’t reset from lockout or latch-up)
  • Diagnostic LED’s (Power, Call for Heat, Lockout/latch-up)
  • SMC Technology (Safety Monitoring Circuit) Provides two limit relays. Carlin’s Safety Monitoring Circuit monitors the contacts for both relays. Lockout occures if a limit relay contact is found closed when it should be open.)

Model 90100A
  • Dual Limit Temperature Control
  • Operating and high limit action
  • Smart manual reset on high limit
  • 2 sensors (electronically averaged)
  • 1 contact – operating limit
  • 1 contact – high limit
Power Input (Red/White Wire)
120 vac, 11 VA
Contacts
2 Independent
Contact Rating
Full Load: 120 vac, 10
AmpsLocked Rotor: 120 vac, 60 Amps
Wires
Quantity: 6120 vac
Hot/Neutral: Red-white/white Operating Limit In/Out:
Black-green/black High limit In/Out: Black-red/black-yellow
Adjustable Operating Limit Range
Any range between 50°F to 240°F
Fixed High Limit Temperature
Any value from 160°F to 240°F
Fixed Differential (Subtractive)
Any value from 5°F to 100°F
Operating Temperature Limits
+32°F to +140°F
Storage Temperature Limits
-40°F to +185°F

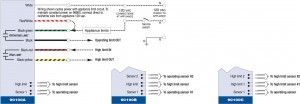

Wiring Diagram
Agencies
UL & ULC Listed or Recognized Component (US & Canada)

Model 90100B
  • Dual Limit Temperature Control
  • Operating and high limit action
  • Smart manual reset on high limit
  • 2 operating limit sensors, averaging
  • 1 high limit sensor
  • 1 contact – operating limit
  • 1 contact – high limit
Power Input (Red/White Wire)
120 vac, 11 VA
Contacts
2 Independent
Contact Rating
Full Load: 120 vac, 10
AmpsLocked Rotor: 120 vac, 60 Amps
Wires
Quantity: 6120 vac
Hot/Neutral: Red-white/white Operating Limit In/Out:
Black-green/black High limit In/Out: Black-red/black-yellow
Adjustable Operating Limit Range
Any range between 50°F to 240°F
Fixed High Limit Temperature
Any value from 160°F to 240°F
Fixed Differential (Subtractive)
Any value from 5°F to 100°F
Operating Temperature Limits
+32°F to +140°F
Storage Temperature Limits
-40°F to +185°F
Wiring Diagram
Agencies
UL & ULC Listed or Recognized Component (US & Canada)

Model 90100C
  • Dual Limit Temperature Control
  • Operating and high limit action
  • Smart manual reset on high limit
  • 1 operating limit sensor
  • 2 high limit sensors, averaged
  • 1 contact – operating limit
  • 1 contact – high limit
Power Input (Red/White Wire)
120 vac, 11 VA
Contacts
2 Independent
Contact Rating
Full Load: 120 vac, 10
AmpsLocked Rotor: 120 vac, 60 Amps
Wires
Quantity: 6120 vac
Hot/Neutral: Red-white/white Operating Limit In/Out:
Black-green/black High limit In/Out: Black-red/black-yellow
Adjustable Operating Limit Range
Any range between 50°F to 240°F
Fixed High Limit Temperature
Any value from 160°F to 240°F
Fixed Differential (Subtractive)
Any value from 5°F to 100°F
Operating Temperature Limits
+32°F to +140°F
Storage Temperature Limits
-40°F to +185°F
Wiring Diagram
Agencies
UL & ULC Listed or Recognized Component (US & Canada)
