90200E / 90200EL
Limit Temperature Control

Break on Fire, Manual Reset from Lockout

  • Microprocessor-operated (Processor coordinates limit and diagnostic functions)
  • Easy Remote Sense (Electronic sensors, wired to control)
  • Break-on-rise operation
  • Self-checking program (Control locks out on diagnostic failure)
  • Diagnostic/status LED’s (LED’s indicate power and lockout)
Model 90200E
  • Break-on-rise contact
  • Lockout on diagnostic failure and limit action
  • Manual reset from lockout
  • No reset from power interruption

Power Input
(Red-White Wire)

 120 vac, 11 VA
Contacts
 1 Break-on-Rise
Contact Rating
 Full Load: 120 vac, 10 AmpsLocked Rotor: 120 vac, 60 Amps
Wires
 Quantity: 3
120 vac Neutral: White
Hot & Limit In: Red-white
Limits Out: Black
Adjustable Operating Limit Range
 Any range between 100°F to 250°F
Fixed Differential (Subtractive)
 Any value from 5°F to 100°F
Operating Temperature Limits
 +32°F to +140°F
Storage Temperature Limits
 -40°F to +185°F

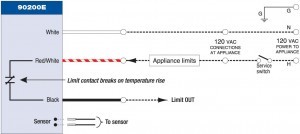

Wiring
Diagram
Agencies
 UL & ULC Recognized Component (US & Canada)
Model 90000EL
  • UL Listed Manual Reset High Limit Temperature Control
  • Break-on-rise contact
  • Lockout on diagnostic failure and limit action
  • Manual reset from lockout
  • No reset from power interruption

Power Input

(Red-White Wire)

 120 vac, 11 VA
Contacts
 1 Break-on-Rise
Contact Rating
 Full Load: 120 vac, 10 AmpsLocked Rotor: 120 vac, 60 Amps
Wires
 Quantity:3
120 vac Neutral: White
Hot & Limit In: Red-white
Limits Out: Black
Adjustable Operating Limit Range
 Any range between 100°F to 250°F
Fixed Differential (Subtractive)
 Any value from 5°F to 100°F
Operating Temperature Limits
 +32°F to +140°F
Storage Temperature Limits
 -40°F to +185°F
Agencies
 UL & ULC Listed Component (US & Canada)
