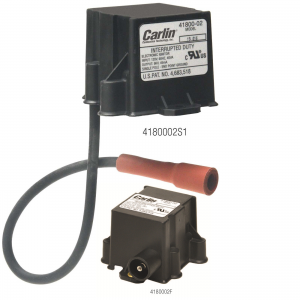

Electronic Ignitors 41800 & 42800

9-KV Intermittent Duty Ignitor

9,000 volt output for smooth gas ignition
Solid state technology yields high performance, long life and durability
Constant-duty rated
Low current draw saves electricity
Epoxy sealant provides water resistance and heat dissipation
Consistent voltage output across a wide range of imput voltages
Model 42800 models can be mounted on standard 4×4 j-box
Model 42800 model primary power wires can be routed through bottom or side of housing

Model
41800
Power
Input
120
vac, 60 Hz, 40 VA
Ignitor
Output
9
KV, 45 mA RMS

#16 AWG Style 3239, 150°C, 25 KVDC; exit bottom or side

Secondary
Grounding
Single-pole
Endpoint Grounding
Operating
Temperature Limits
+
32°F to + 140°F
Storage
Temperature Limits
-40°F
to +185°F
Agencies
UL
Recognized (US), CSA Certified (Canada)
Model
42800
Power
Input
120
vac, 60 Hz, 40 VA
Ignitor
Output
9
KV, 45 mA RMS

Rajah connector, housing side

Secondary
Grounding
Single-pole
Endpoint Grounding
Operating
Temperature Limits
+
32°F to + 140°F
Storage
Temperature Limits
-40°F
to +185°F
Agencies
ULRecognized
(US), CSA Certified (Canada)
