Electronic Ignitors 41000, 40700 & 40900

14-KV & 20KV Continuous Duty Ignitor

14,000 volt and 20,000 volt output for smoother ignition. Solid state technology yields high performance, long life and durability constant-duty rated. Low current draw saves electricity. Epoxy sealant provides water resistance and heat dissipation Consistent voltage output across a wide range of imput voltages. Easy testing 41000 ignitor spark can jump 1/2″ gap.

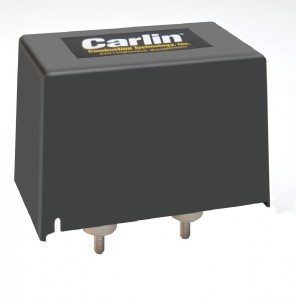

Model 41000
Power Input
120 vac, 60 Hz, 40 VA
Ignitor Output
14KV, 35 mA RMS
Secondary Grounding
Midpoint
Operating Temperature Limits
+32°F to + 140°F
Storage Temperature Limits
-40°F to +185°F
Agencies
UL Recognized (US), CSA Certified (Canada)



Model 40700
Power Input
208-240 vac, 50/60 Hz, 60 VA
Ignitor Output
14 KV, 35 mA RMS
Secondary Grounding
Midpoint
Operating Temperature Limits
+ 32°F to + 140°F
Storage Temperature Limits
-40°F to +185°F
Agencies
NA



Model 40900
Power Input
12 vdc, 50 VA
Ignitor Output
20 KV, 28 mA RMS
Secondary Grounding
Midpoint
Operating Temperature Limits
+ 32°F to + 140°F
Storage Temperature Limits
-40°F to +185°F
Agencies
NA
