1050FFD

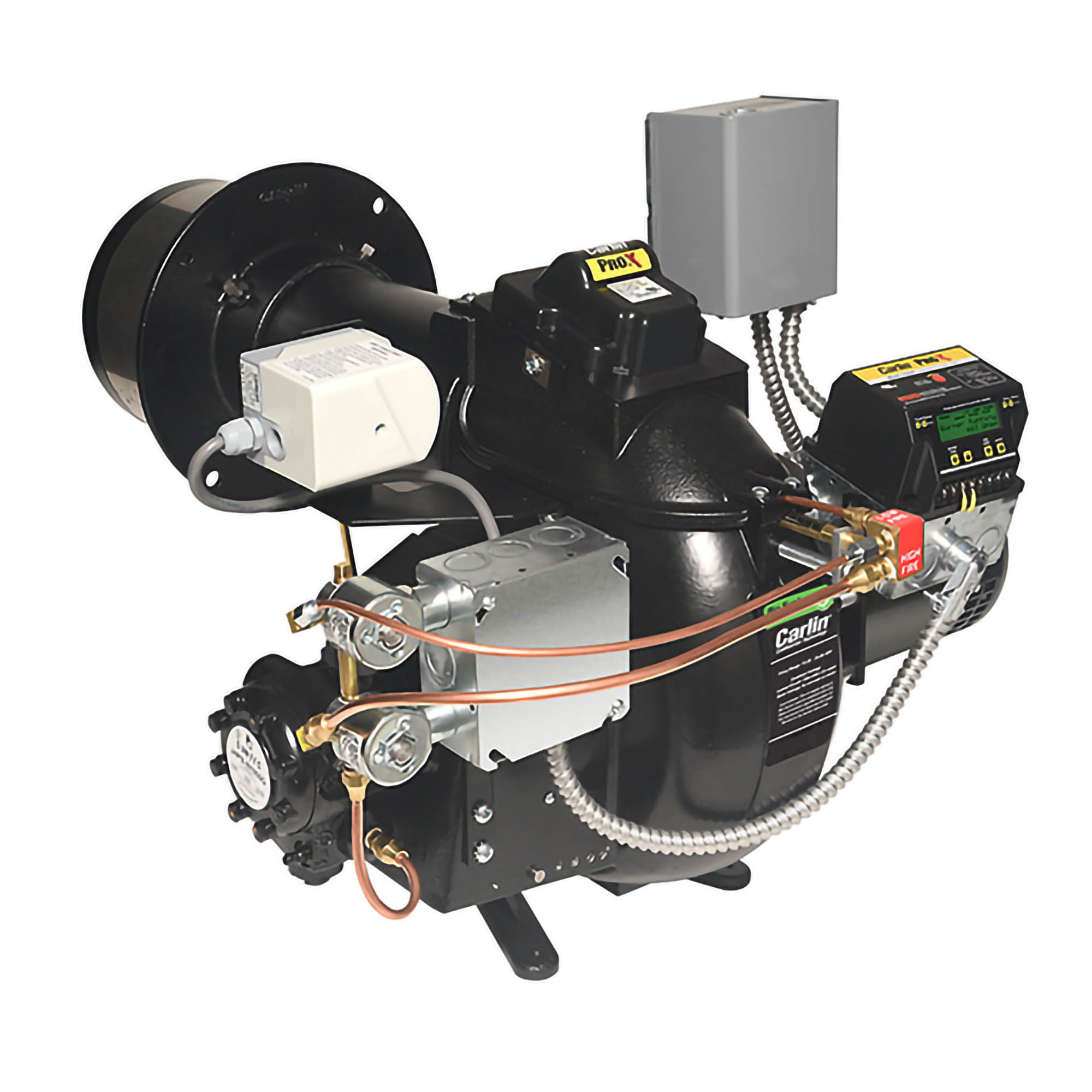

The1050FFD advanced oil burner features Carlin’s flame-funnel combustion head design – for unmatched fuel/air mixing, smooth light-offs and quiet running. The automatically-closed air damper and low-high-low step modulation (approximately 2:1 turndown) improve efficiency by closer matching of output of demand. Typically, a savings of 15-20% in seasonal fuel usage is seen when compared to single-stage flame retention burners. Proven for years in the field and in extensive boiler and furnace testing, these burners will meet your needs for commercial oil-burning applications.
Standard Equipment

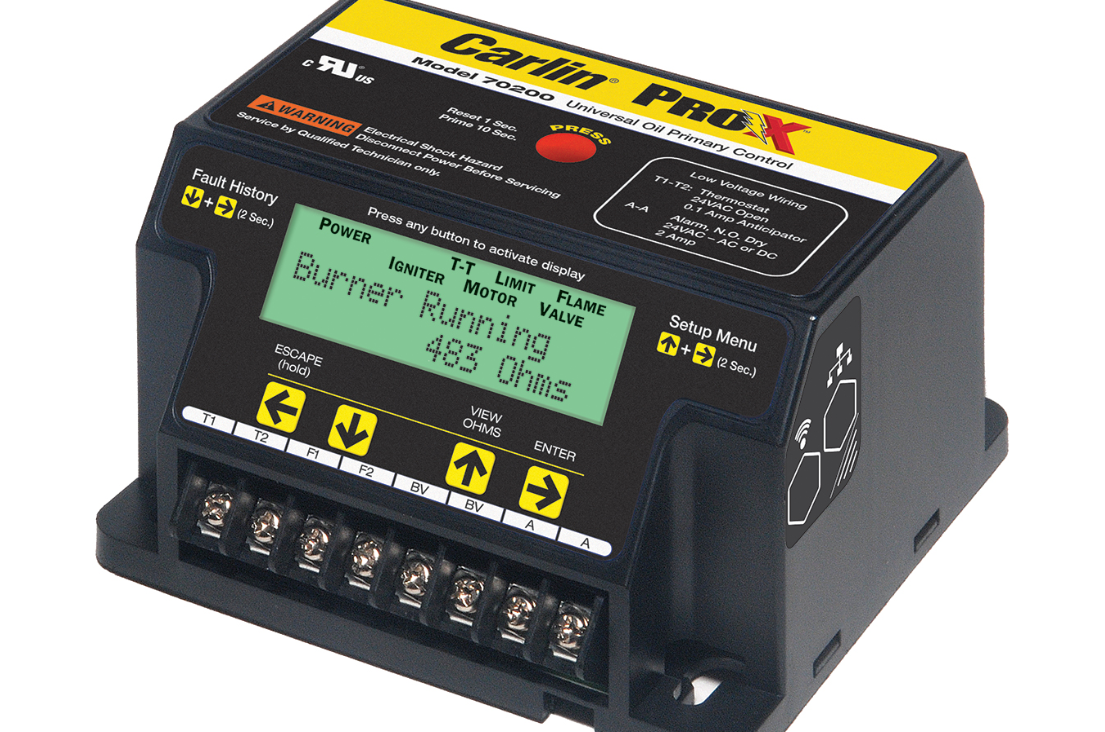

Carlin EZ Burners are fitted with the Pro-X 70200 universal oil primary control. The superior technology in this control boasts built-in alarm contacts, last fault alert, an LCD screen to easily view and change settings. Its standard settings have been optimized to perform with biodiesel blends up to and including B100.

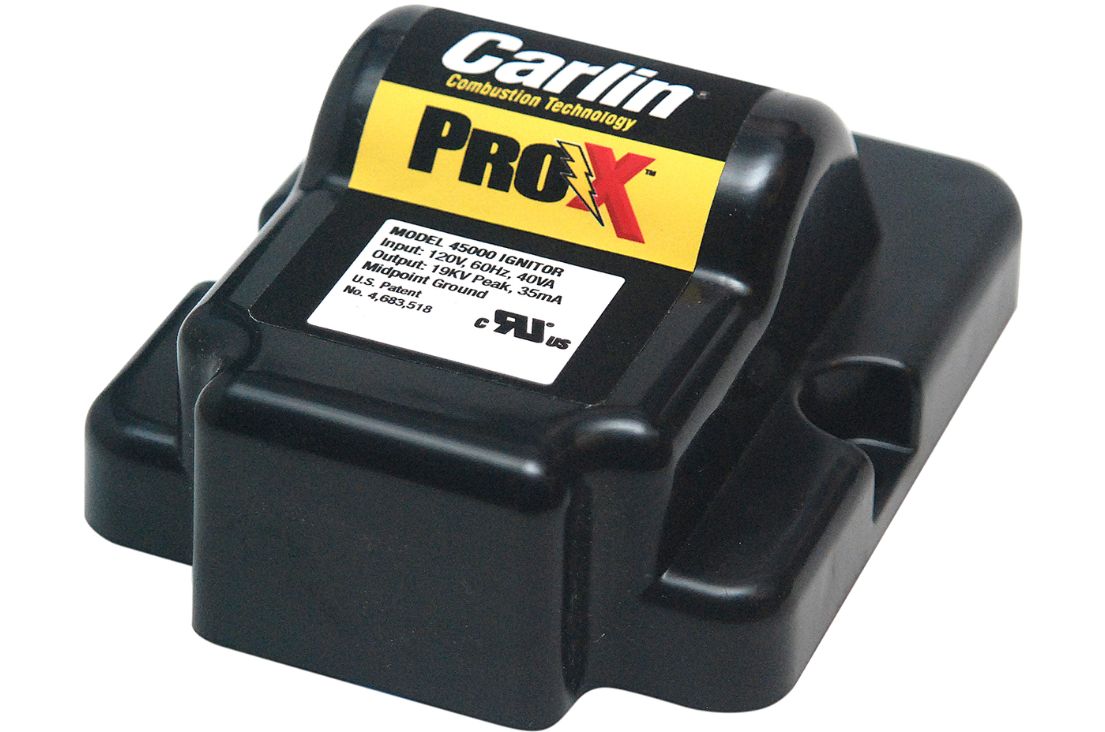

The Pro-X 45000 universal ignitor is Carlin’s most durable ignitor, ever. Tested through hundreds of thousands of on/off cycles at high temperatures at maximum temperature, you can be sure this ignitor has been built to last.
Tech Specs
| GPH | Low Fire: 9.00 to 12.00 GPH High Fire: 15.00 to 25.00 GPH |
| Fuels | U.S. – No.1 or No. 2 fuel oil, biofuel blends up to and including B20 Canada – No. 1 oil or No. 2 furnace oil |
| Electrical | Oil Valve Power: 120 VAC / 60 Hz Low and High-Fire Oil Valve: 120 V, 60 Hz Damper Actuator: 120 V, 60 Hz |
| Motor | Motor: 1 HP, 3450 RPM, 60 Hz Motor Frame: 56C-Frame |
| Motor Volts | 1-Phase: 115/208-230 3-Phase: 208-230/460 |
| Motor Amps | 115 V, 1-Phase: 16.4 230 V, 1-Phase: 8.2 230 V, 3-Phase: 4.0 460 V, 3-Phase: 2.0 |
| Ignition | Carlin Pro-X 45000 solid state electronic ignition. Ignition Voltage: 19,000 volts |
| Control | Carlin Pro-X 70200 microprocessor control |
| Blower Wheel Diameter x Width | 7″ x 5″ |
| Flame Retention Ring, O.D. | 3 13/16″ |
| 2-Stage Fuel Unit Pressure | 100 psi |
| Agencies | UL Listed: U.S. & Canada |
