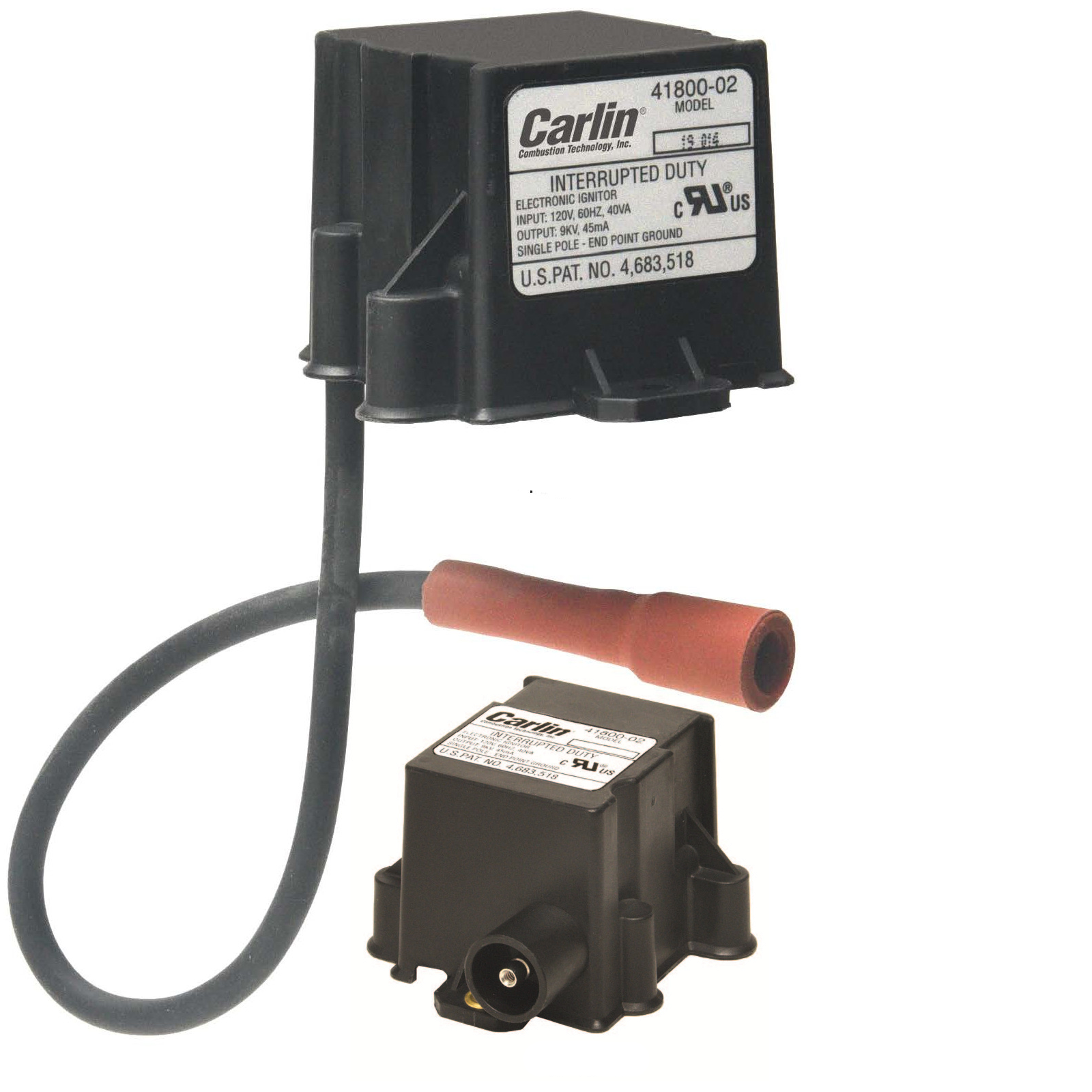

41800 Interrupted Ignitor

The 41800 is Carlin’s 9-kv interrupted duty electronic ignitor. It utilizes solid state technology to yield high performance, long life and durability. Additionally, it has been designed with a low current draw for increased energy efficiency.

Tech Specs

Power Input 120 vac, 60 Hz, 40 VA
Ignitor Output 9 kv, 45 mA RMS
Secondary Grounding Single pole endpoint Grounding
Operating Temperature Limits 0°F to 140°F
Storage Temperature Limits 32°F to 140°F

418002F: -40°F to 185°F
Part Number & Model Information 4180002S

  • Spark Connection: High voltage suppression ignition cabled with booted 1/4″ female Rajah connection
  • Cable Length: 14″ (Used on Carlin 301GAS burners)

4180002S1

  • Spark Connection: High voltage suppression ignition cabled with booted 1/4″ female Rajah connection
  • Cable Length: 12″ (Used on Carlin EZGas burners)

4180002S2

  • Spark Connection: High voltage suppression ignition cabled with booted 1/4″ female Rajah connection
  • Cable Length: 6″ (Used on Carlin 201GAS burners)

4180002SF

  • Spark Connection: 1/4″ male Rajah connection
  • Cable Length: n/a
Agencies UL Recognized in the United States and Canada
