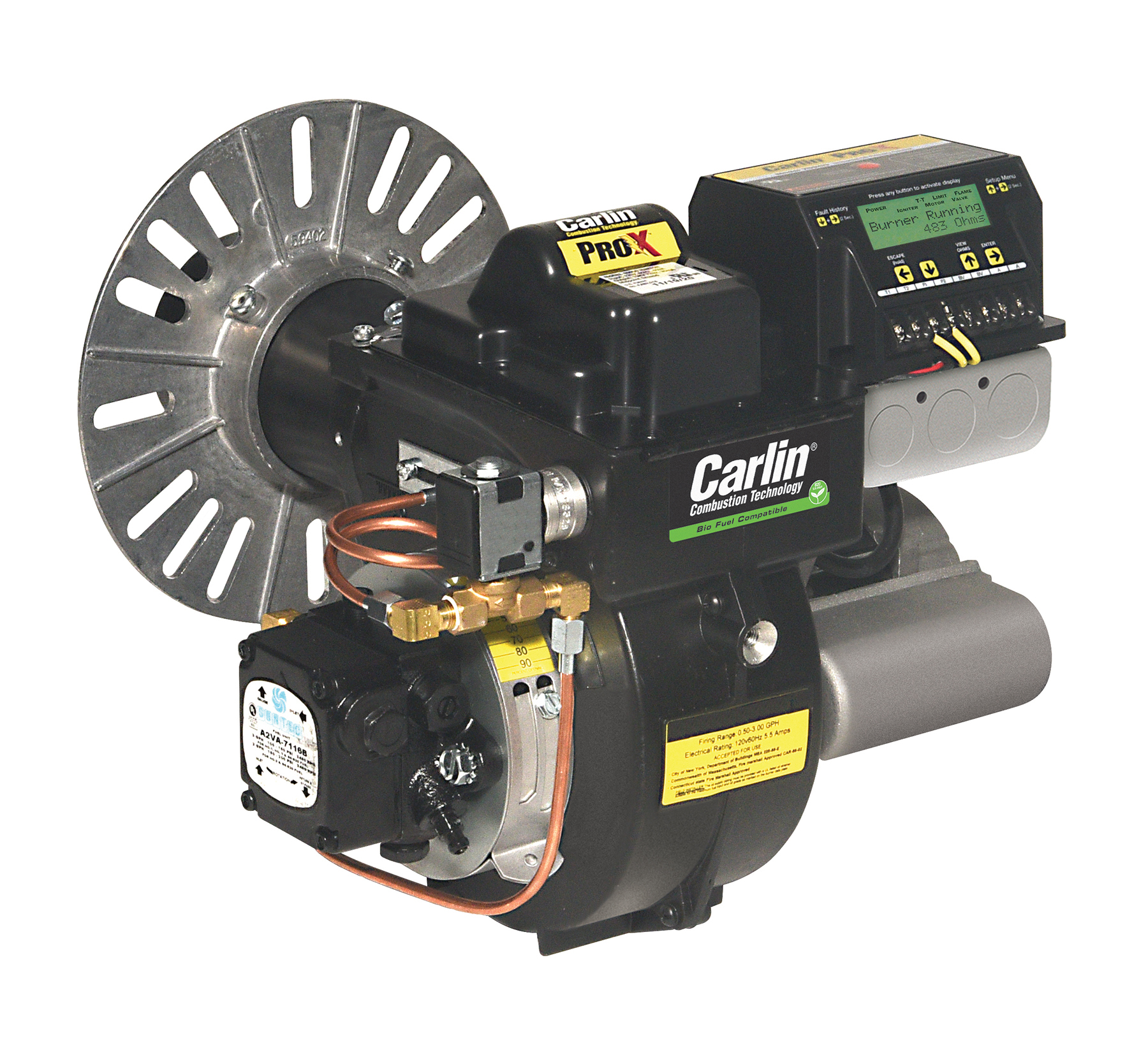

99FRD & 102CRD
The 99FRD, 102CRD and EZ-66 residential oil burners feature Carlin’s adjustable head assembly for unmatched fuel/air mixing, smooth light-offs and quiet running. Proven for years in the field and in extensive boiler and furnace testing, these burners cover the range from residential to semi-commercial, to meet your needs for oil-burning applications.
Standard Equipment
Carlin EZ Burners are fitted with the Pro-X 70200 universal oil primary control. The superior technology in this control boasts built-in alarm contacts, last fault alert, an LCD screen to easily view and change settings. Its standard settings have been optimized to perform with biodiesel blends up to and including B100.
The Pro-X 45000 universal ignitor is Carlin’s most durable ignitor, ever. Tested through hundreds of thousands of on/off cycles at high temperatures at maximum temperature, you can be sure this ignitor has been built to last.
UL Listed B100 Suntec Pump
All burners are equipped with the industry-leading Suntec 3006 pump with integral valve.
*Some burners are fitted with the Suntec 7116 pump with UL rated external valve.
Tech Specs
| Models & GPH | 99FRD / EZ66: 0.5 – 3.00 GPH 102 CRD with 2 5/8″ Air Cone: 2.00 to 3.50 GPH 102 CRD with 3″ Air Cone: 3.00 to 4.50 GPH |
| Fuels | U.S. – No.1 or No. 2 fuel oil, biofuel blends up to and including B100 Canada – No. 1 oil or No. 2 furnace oil |
| Electrical | Power: 120 VAC, 60Hz, 1-Phase Current: Approximately 2.5 Amps Limit Circuit Input: 120 VAC, 60Hz Motor (PSC): 1/6 HP, 3450 RPM Oil Valve Power: 120 VAC, 60Hz Alarm Contacts (Isolated): 24 VAC/VDC. 2 Amps |
| Ignition | Carlin Pro-X 45000 solid state electronic ignition. Ignition Voltage: 19,000 volts |
| Control | Carlin Pro-X 70200 microprocessor control |
| Operating Temperature Limits | Maximum Ambient: 140°F (60°C) |
| Agencies | UL Listed: U.S. & Canada |
Homeowner Information
Annual Maintenance
We recommend a tune-up of your HVAC system at least once a year to keep everything running at peak efficiency. Ideally, this should be scheduled in the summer months to confirm your system is ready to go before heating season (October-February) arrives.
Freeze Protection
Central heating systems are prone to shut down as a result of power or fuel outages, safety related fault conditions or equipment failure. Installation of freeze protection monitoring or other precautions is recommended for unattended dwellings in climates subject to sustained below-freezing temperatures.
