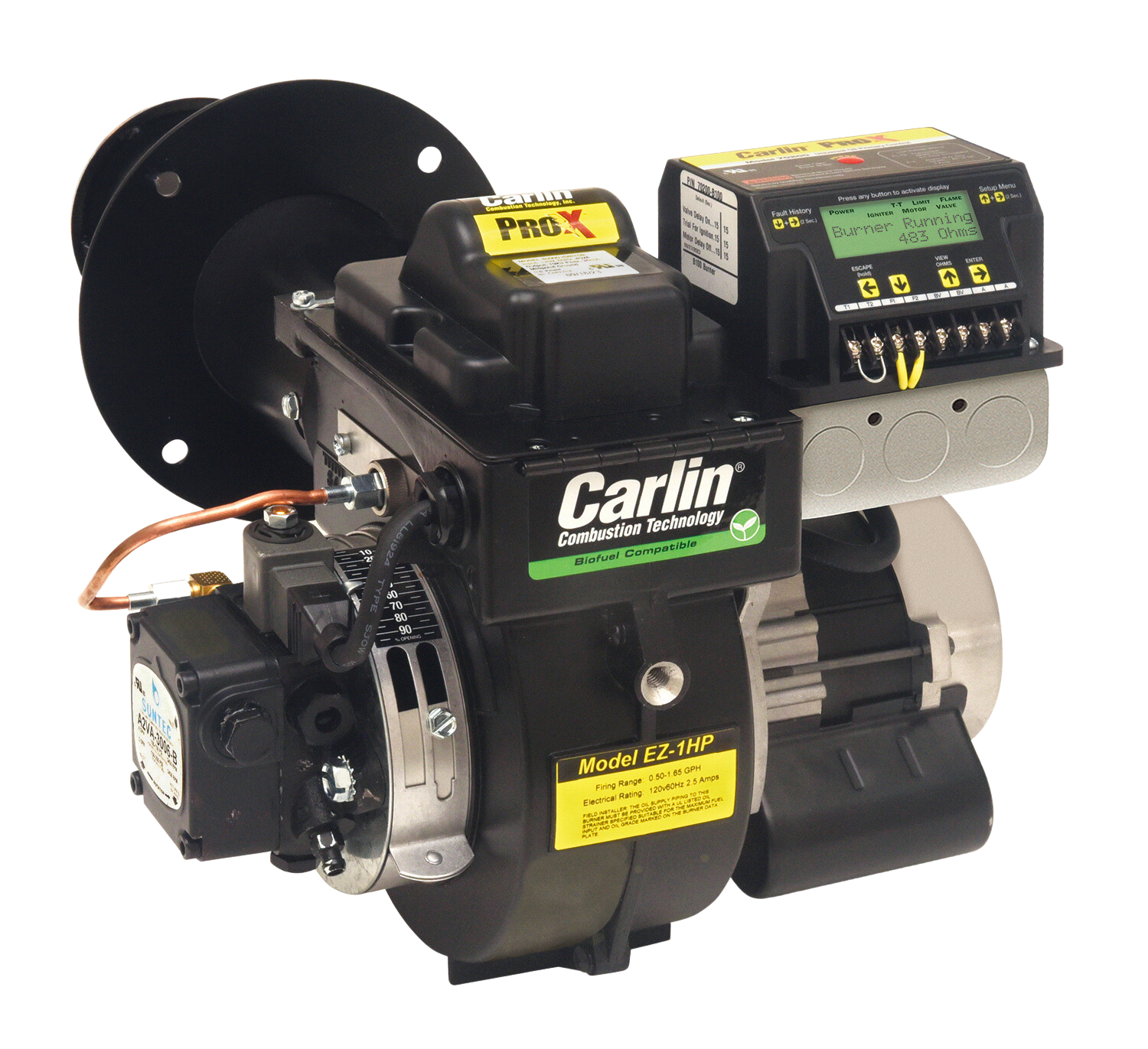

EZ Series Liquid Fuel Burner
The EZ-Series advanced liquid fuel burners combine state of the art components with the proven range and reliability of a Carlin burner. Confidently burn #2 and B5-B100. Available in any of three configurations: EZ-1, EZ-2, or EZ-3.
Standard Equipment
Carlin EZ Burners are fitted with the Pro-X 70200 universal oil primary control. The superior technology in this control boasts built-in alarm contacts, last fault alert, an LCD screen to easily view and change settings. Its standard settings have been optimized to perform with biodiesel blends up to and including B100.
The Pro-X 45000 universal ignitor is Carlin’s most durable ignitor, ever. Tested through hundreds of thousands of on/off cycles at high temperatures at maximum temperature, you can be sure this ignitor has been built to last.
UL Listed B100 Suntec Pump
All burners are equipped with the industry-leading Suntec 3006 pump with integral valve.
*Some burners are fitted with the Suntec 7116 pump with UL rated external valve.
Tech Specs
| Models & GPH |
EZ-1: 0.5 – 1.65 GPH
EZ-2: 1.50 – 2.25 GPH
EZ-3: 2.00 – 2.50 GPH
|
| Fuels |
U.S. – No.1 or No. 2 fuel oil, biofuel blends up to and including B100
Canada – No. 1 oil or No. 2 furnace oil
|
| Electrical |
Power: 120 VAC, 60Hz, 1-Phase
Current: Approximately 5.8 Amps
Limit Circuit Input: 120 VAC, 60Hz
Motor (PSC): 1/6 HP, 3450 RPM
Motor Frame: 48-Frame, “M” Flange
Oil Valve Power: 120 VAC, 60Hz
Alarm Contacts (Isolated): 24 VAC/VDC. 2 Amps
|
| Ignition |
Carlin Pro-X 45000 solid state electronic ignition.
Ignition Voltage: 19,000 volts
|
| Control | Carlin Pro-X 70200 microprocessor control |
| Operating Temperature Limits | Maximum Ambient: 140°F (60°C) |
| Agencies | UL Listed: U.S. & Canada |
