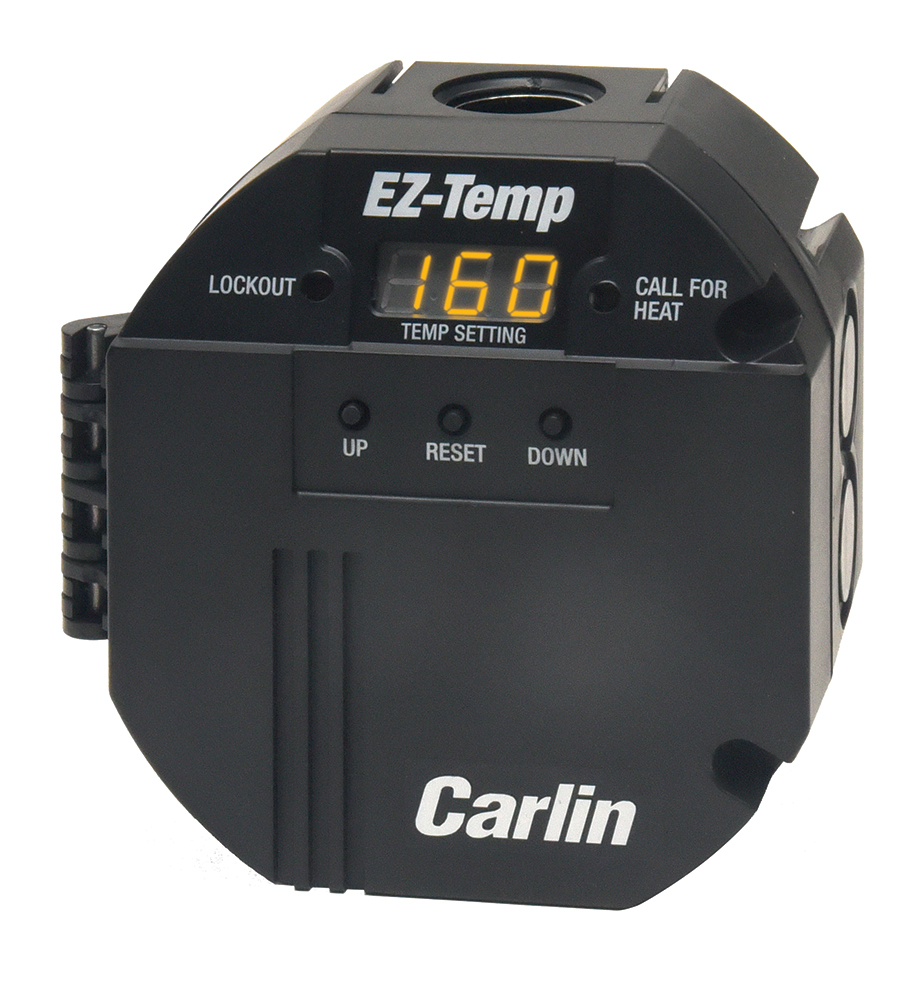

EZ-Temp 90300
The EZ-Temp 90300 is a dual limit temperature control that has 3-sensor options.
- Sensor Redundancy (Higher temperature of two operating sensors used)
- Easy Remote Sense (Electronic sensors are wired to control)
- Smart Manual Reset (Manual reset only if operating limit does not open)
- Serviceman Reset Protection (Latch-up after three consecutive lockouts)
- Power-Independent Lockout (Power cycling won’t reset from lockout or latch-up)
- Diagnostic LEDs (Power, Call for Heat, Lockout/Latch-up)
- Safety Monitoring Circuit (SMC) Technology provides Two Limit Relays – Carlin’s SMC monitors the contacts for both relays. Lockout occurs if a limit relay contact is found closed when it should be open.
Tech Specs
Model 90300B
| Power Input (Red/White Wire) | 120 VAC, 11 VA |
| Contacts | 2 In Series |
| Contact Rating | Full Load: 120 VAC, 10 Amps Locked Rotor: 120 VAC, 60 Amps |
| Wires | Quantity: 3 120 VAC Hot / Neutral: Red-White / White Limits Out: Black |
| Adjustable Operating Limit Range | Any range between 50°F and 240°F |
| Fixed High Limit Temperature | Any value from 160°F to 240°F |
| Fixed Differential (Subtractive) | Any value from 5°F to 100°F |
| Operating Temperature Limits | 32°F to 140°F |
| Storage Temperature Limits | -40°F to 185°F |
| Model Features |
|
| Agencies | UL Recognized in the United States and Canada |
