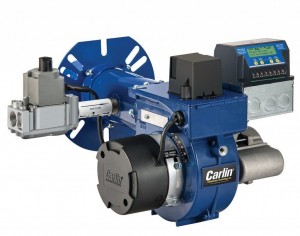

EZGas Pro Burner
Power Gas Burner 50,000-275,000 BTUH
Input
|
50,000 to 275,000 BTUHs |
Fuels
|
Natural Gas or Propane Gas
Maximum Supply Pressure: 14 inches w.c. Minimum Supply Pressure: 5.0 inches w.c. Manifold Pressure: 3.5 inches w.c. |
Control
|
Carlin 60200FR Microprocessor Control
4 sec. Trial for Ignition (TFI)1.3 Sec. FFRT Pre-purge and post-purge Serviceman Reset Protection Latch-up after three consecutive lockouts Interrupted Duty Ignition Recycle on Flame Failure |
Electrical
|
Power: 120 vac, 60Hz, 1-Phase
Current: Approximately 2.0 Amps Limit Circuit Input: 120 vac, 60 Hz Motor: 1/15 HP, 3450 RPM, 60 Hz Motor Frame: 48 Frame, “M” Flange Fuel Valve Power: 120 vac, 60 Hz |
Ignition
|
Carlin Model 41800 Solid State Electronic Ignition
Ignition Voltage: 9,000 volts |
Orifice
Selection |
|
Agencies
|
UL Listed: US & Canada – US per ANSI Z21.17, Canada per CSA 2.7 |
