EZ-Series



Advanced Residential Oil Burners
0.5 to 2.6 GPH

B-Ready for Bio with Carlin

Always looking to set the standard, all Carlin Residential Oil Burners are UL Listed for B100*. Reliably burn #2 and B5 through B100 with this burner so you can be ready for biofuel on your own terms.  This marks the next step in the industry’s commitment to a clean carbon-free environment that we are very proud to play a role in. Get the same Carlin burner you’ve come to rely on, now UL Listed for B100!

*B100 if manufactured after 11/20/2023

*B20 if manufactured after 02/16/2021 but before 11/20/2023

What you get with your EZ-Series Burner:

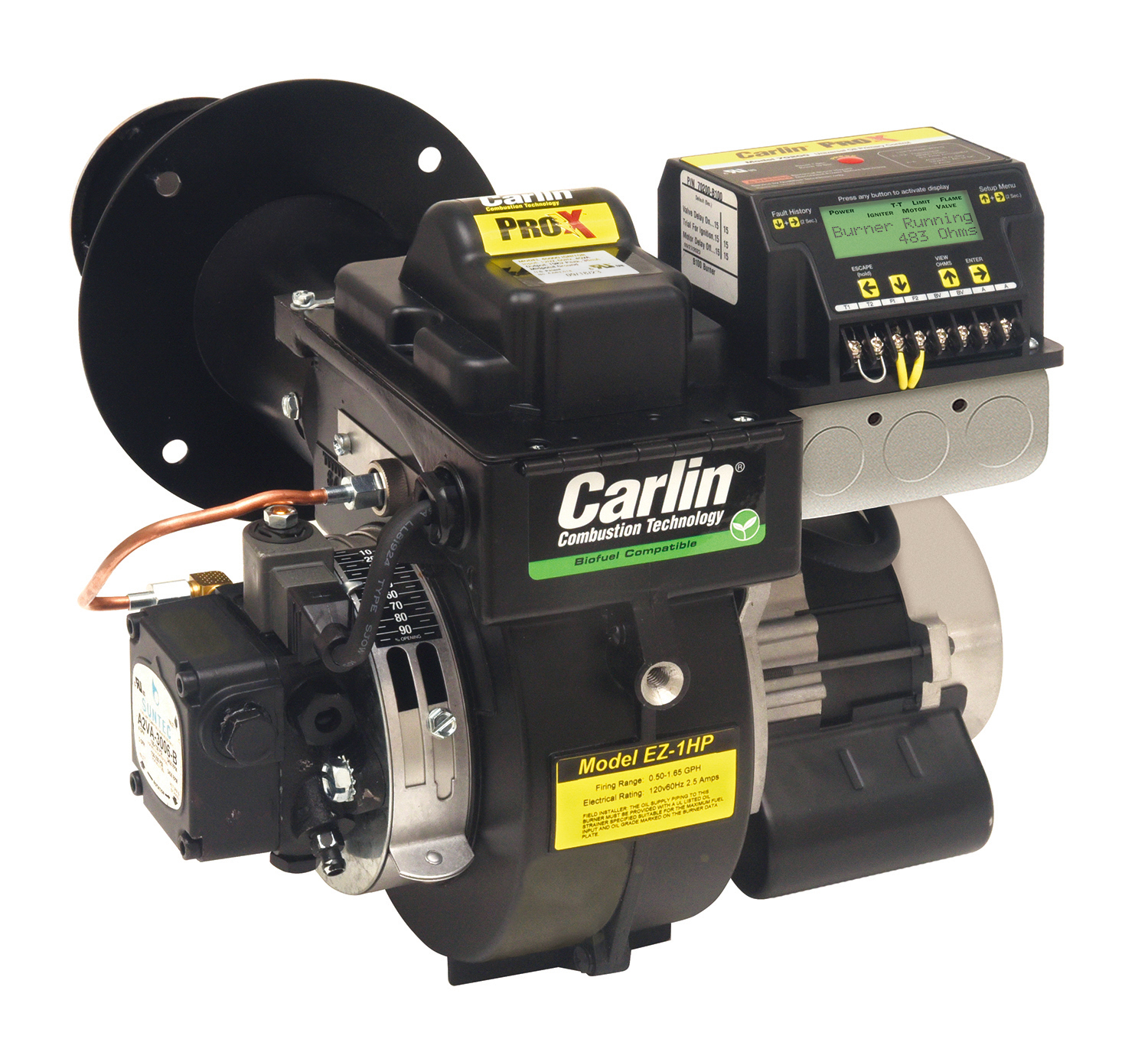

The EZ-Series advanced oil burners combines state of the art components with the proven range and reliability of a Carlin burner. Available in any of three configurations: EZ-1, EZ-2, or EZ-3 (Specify tube length when ordering).

State-of-the-Art Technology

Unmatched Performance

    • EZ Design – Developed with the Tech in mind for simplified setup and servicing
    • OEM Specifications – Factory set to individual OEM requirements for optimal appliance performance and efficiency
    • Quiet Operation – Engineered for smooth light-off, combustion and minimal burner noise

Highest Quality Components & Attention to Detail:

    • Stainless steel nozzle lines mated with custom formed oil lines, for strip-proof alignment
    • Suntec “B” fuel pumps with latest advancements for optimal performance with today’s fuels
    • PSC Motor provides required torque with reduced energy consumption
Input
 EZ-1: 0.5 to 1.65 GPH
EZ-2: 1.50 to 2.25 GPH
EZ-3: 2.00 to 2.50 GPH
Fuels
 U.S. – No. 1 or No. 2 Fuel Oil, including Bio Blends not exceeding B20
Canada – No. 1 Oil or No. 2 Furnace Oil
Electrical
 Power: 120 vac, 60Hz, 1-Phase
Current: Approximately 5.8 Amps
Limit Circuit Input: 120 vac, 60 Hz
Motor (PSC): 1/6 HP, 3450 RPM
Motor Frame: 48-Frame, “M” Flange
Oil Valve Power: 120 vac, 60 Hz
Alarm Contacts (Isolated): 24 VAC/VDC, 2 Amps
Ignition
 Carlin Model 41000 solid state electronic ignition
Ignition Voltage: 19,000 volts
Control
 Carlin Model 70200 Microprocessor Control
Operating Temperature Limits
 Maximum Ambient: 140° F (60° C)
Agencies
 UL Listed: US & Canada



Parts Breakdown

Annual Maintenance

We recommend a tune-up of your HVAC system at least once a year to keep everything running at peak efficiency. Ideally, this should be scheduled in the summer months to confirm your system is ready to go before heating season (October – February) arrives.

Freeze Protection

Central heating systems are prone to shut down as a result of power or fuel outages, safety related fault conditions or equipment failure. Installation of freeze protection monitoring or other precautions is recommended for unattended dwellings in climates subject to sustained below-freezing temperatures.
