201Gas Commercial Gas Burner
Power Gas Burner 150,000-399,000 BTUH

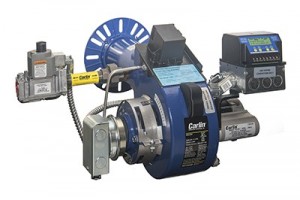

![[Photo] 201GAS burner](https://carlincombustion.com/wp-content/uploads/201-GAS-300x200.jpg)
The 201GAS burner converts from propane to natural gas with just an orifice change. No conversion kit needed. Factory packed with combustion control and gas fuel train.
Does not require a refractory liner fires with or without a combustion chamber. Proven in extensive boiler and furnace testing, these burners will meet your needs for residential gas burning applications.
Does not require a refractory liner fires with or without a combustion chamber. Proven in extensive boiler and furnace testing, these burners will meet your needs for residential gas burning applications.
|
Input
|
150,000 to 399,000 Btuh |
|
|
Fuels
|
Natural Gas or Propane Gas |
|
| Maximum Supply Pressure: 14 inches w.c. |
||
| Minimum Supply Pressure: 5.0 inches w.c. |
||
| Manifold Pressure: 3.5 inches w.c. |
||
|
Control
|
Carlin 60200FR Microprocessor Control 4 sec. Trial for Ignition (TFI) 1.3 Sec. FFRT Pre-purge and post-purge Serviceman Reset Protection Latch-up after three consecutive lockouts Interrupted Duty Ignition Recyle on Flame Failure |
|
|
Electrical
|
Power: 120 vac/60Hz/1-Phase |
|
| Current: Approximately 2.5 or 4.4 amps |
||
| Limit Circuit Input: 120 vac/60 Hz |
||
| Motor: 1/6 or 1/4 HP, 3450 RPM, 60 Hz |
||
| Motor Frame: 48 Frame, “N” Flange |
||
Fuel Valve Power: 120 vac/60 Hz |
||
|
Ignition
|
Carlin Model 41800 solid state electronic ignition |
|
| Ignition Voltage: 9,000 volts |
||
|
Orifice
Selection |
 |
|
|
Agencies
|
UL Listed: US & Canada – US per ANSI Z21.17, Canada per CSA 2.7 |
