201CRD & 301CRD
Commercial Burners
Advanced Oil Burners
2.5 to 5.5 GPH & 3.0 to 7.0 GPH

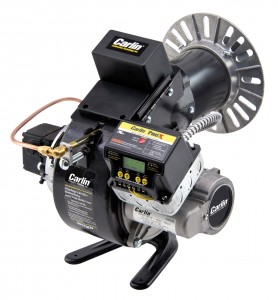

![[Photo] 201CRD Commerical Oil Burner](https://carlincombustion.com/wp-content/uploads/201CRD-1-278x300.jpg)
201CRD and 301CRD advanced oil burners feature Carlin’s adjustable combustion head assembly for unmatched fuel/air mixing, smooth light-offs and quiet running. Proven for years in the field and in extensive boiler and furnace testing. These burners will meet your needs for commercial oil-burning applications.
|
Input
|
201CRD: 2.50 to 5.00 GPH 301CRD (3¼” air cone): 3.00 to 6.00 GPH 301CRD (3½” air cone): 4.00 to 7.00 GPH |
|
| Fuels | U.S: No. 1 or No. 2 Fuel oil Canada: No. 1 Stove oil or No. 2 Heating oil |
|
| Nozzles | (3) 45° “SS” Hago | |
|
Fuel
Unit |
Suntec 100 to 150 psig nozzle pressure Factory set at 150 psig |
|
| Electrical | Power: 120V/60 Hz/1-Phase Motor: Carlin PSC, 1/4 HP, 3450 RPM Total current at 120V/60 Hz/1-Phase: 201CRD : Approx. 3.2 amps 301CRD : Approx. 3.2 amps |
|
| Ignition | Carlin Model 41000 electronic — 14,000 volts | |
|
Agencies
|
UL Listed: US & Canada |
