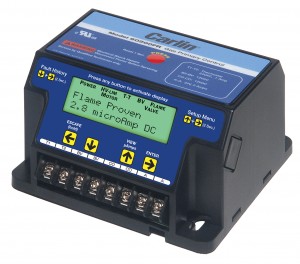

60200FR Flame Rod Microprocessor Gas Primary Control
|
Features & Benefits
|
Interrupted Duty Ignition | |
| Recycle on Flame Failure | ||
| Serviceman Reset Protection ( Latch-up after three consecutive lockouts) | ||
| Diagnostic & Flame Indicator LED’s | ||
| Pre-Purge and Post-purge (contact Carlin for available timings) | ||
| 2 Second Ignition Establishment Period | ||
| 4 Second Trial for Ignition (TFI) Other Timings Available | ||
| 1.3 Second Flame Failure response time (FFRT) | ||
| Alarm Contacts | ||
| Thermostat/aquastat Compatible | ||
| SMC (Safety Monitoring Circuit) Technology | ||
|
Power (Red/White Wire) |
120 vac, 60 Hz, 9 VA | |
|
Limit (Black Wire) |
120 vac, 60 Hz | |
|
Motor
Load |
120 vac, 60 Hz, 10 FLA, 60 LRA |
|
|
Ignitor
Load |
120 vac, 60 Hz, 500 VA | |
|
Valve
Load |
120 vac, 60 Hz, 2.0 Amps | |
|
Alarm
Contacts |
24V, AC/DC, 2 Amps | |
|
Operating
Temperature Limits |
+32°F to + 140°F | |
|
Storage
Temperature Limits |
-40°F to +185°F | |
|
Thermostat
Anticipator Current |
0.2A, AC | |
|
Flame Current (Minimum)
|
0.8 Microamp DC | |
|
Wiring
Diagram |
 |
|
|
Agencies
|
UL Recognized (US), CUL Recognized (Canada) | |
