Pressure Washer Burner
Built for optimal performance with diesel fuel and biofuels.
Standard Equipment
The Pro-X 45000 universal ignitor is Carlin’s most durable ignitor, ever. Tested through hundreds of thousands of on/off cycles at high temperatures at maximum temperature, you can be sure this ignitor has been built to last.
The PSC Motor is efficient and reliable for both starting and running. It boasts auto-reset thermal overload, quiet sealed ball bearings and eliminates the centrifugal start switch.

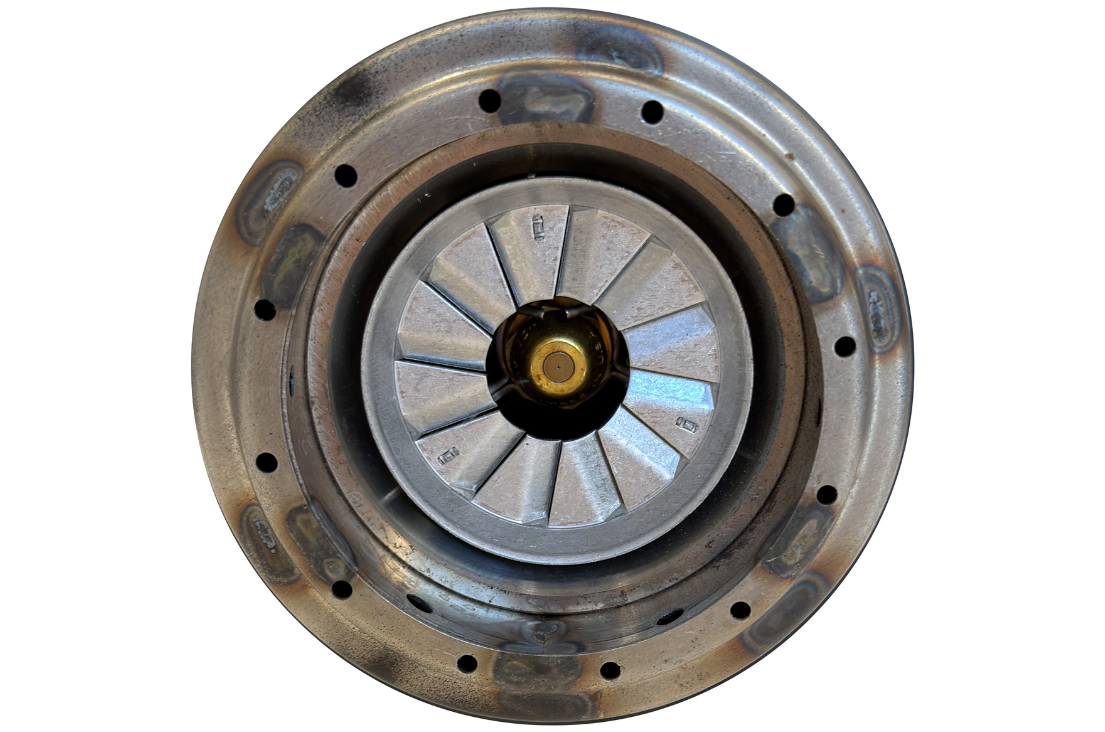

Innovative Head Design
The Carlin EZ combustion tube has a unique head design with tertiary air delivery system. This allows for changing fuel viscosities without the need to make air adjustments.

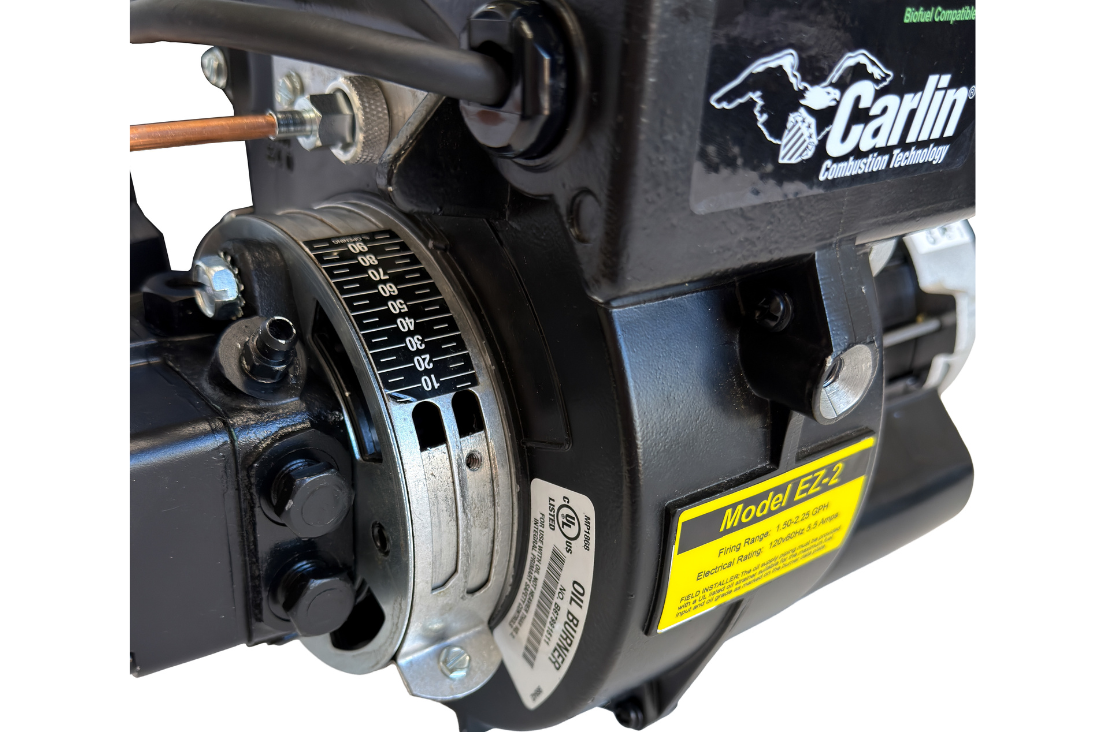

EZ-to Adjust Air Settings
Quickly adjust the air settings to compensate for changes in altitude and oxygen levels.
Tech Specs
| Models & GPH |
EZ LF: 0.35 – 1.45 GPH
EZ-1, EZ-1 HP: 0.5 – 1.65 GPH
EZ-2, EZ-2 HP: 1.50 – 2.25 GPH
EZ-3, EZ-3 HP: 2.00 – 2.60 GPH
|
| Fuels |
U.S. – No.1 or No. 2 fuel oil, biofuel blends up to and including B100
Canada – No. 1 oil or No. 2 furnace oil
|
| Electrical |
Power: 120 VAC, 60Hz, 1-Phase
Current: Approximately 5.8 Amps
Limit Circuit Input: 120 VAC, 60Hz
Motor (PSC): 1/6 HP, 3450 RPM
Motor Frame: 48-Frame, “M” Flange
Oil Valve Power: 120 VAC, 60Hz
|
| Ignition |
Carlin Pro-X 45000 solid state electronic ignition.
Ignition Voltage: 19,000 volts
|
| Operating Temperature Limits | Maximum Ambient: 140°F (60°C) |
| Agencies | UL Listed: U.S. & Canada |
