102CRD Residential Oil Burner
Specs At A Glance
Ready When You Are:
Always looking to set the standard, all Carlin Residential Oil Burners are now UL Listed for B100*. This marks the next step in the industry’s commitment to a clean carbon-free environment that we are very proud to play a role in. Get the same Carlin burner you’ve come to rely on, now UL Listed for B100! Confidently burn #2, B5, B100 or any biofuel blend in between.
*B20 manufactured between 2/16/2021 and 11/17/2023
*B100 manufactured after 11/20/2023
What you get with a Carlin Residential Oil Burner
The 99FRD, 102CRD and EZ-66 residential oil burners feature Carlin’s adjustable head assembly for unmatched fuel/air mixing, smooth light-offs and quiet running. Proven for years in the field and in extensive boiler and furnace testing, these burners cover the range from residential to semi-commercial, to meet your needs for oil-burning applications.
Input
99FRD, EZ-66: 0.50 to 3.00 GPH
102CRD: (2 5/8″ air cone): 2.00 to 3.50 GPH
102CRD: (3″ air cone): 3.00 to 4.50 GPH
Fuels
Canada – No. 1 Stove oil or No. 2 Heating oil
Electrical
Motor: Carlin PSC, 1/6 HP, 3450 RPMCurrent:
99FRD, EZ-66: Approx. 5.5 amps
102CRD: Approx. 6.0 amps
Ignition
Control
Operating Temperature Limits
Agencies

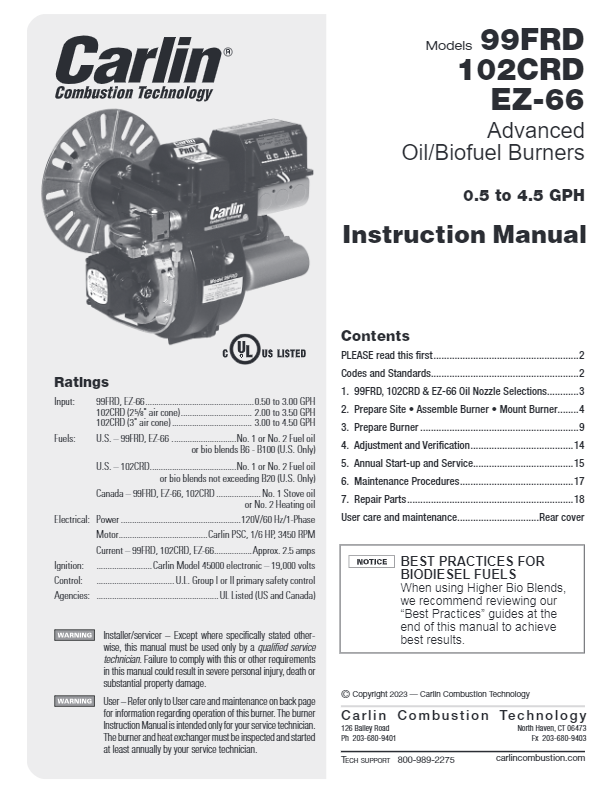

99FRD / 100CRD / EZ-66 Advanced Oil Burners Instruction Manual
Annual Maintenance
We recommend a tune-up of your HVAC system at least once a year to keep everything running at peak efficiency. Ideally, this should be scheduled in the summer months to confirm your system is ready to go before heating season (October – February) arrives.
Freeze Protection
Central heating systems are prone to shut down as a result of power or fuel outages, safety related fault conditions or equipment failure. Installation of freeze protection monitoring or other precautions is recommended for unattended dwellings in climates subject to sustained below-freezing temperatures.
-
102CRD Residential Oil Burner 97403
Firing Range (GPH) 2.00 - 4.50Fuels #2 B20Control 40200Ignition 41000Air Tube N/A
