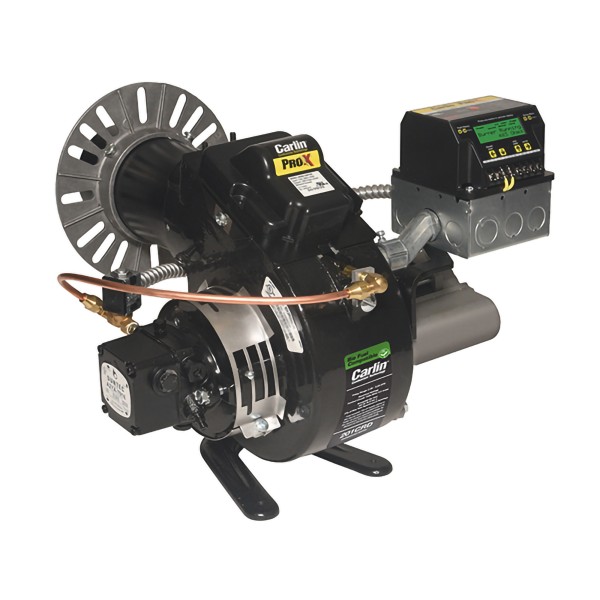

301CRD Commercial Oil Burner
Specs At A Glance
Min output (GPH) 3
Max output (GPH) 7
Fuels #2 B20
Control Varies
Ignition Varies
201CRD and 301CRD advanced oil burners feature Carlin’s adjustable combustion head assembly for unmatched fuel/air mixing, smooth light-offs and quiet running. Proven for years in the field and in extensive boiler and furnace testing. These burners will meet your needs for commercial oil-burning applications.
Input
201CRD: 2.50 to 5.00 GPH
301CRD (3_” air cone): 3.00 to 6.00 GPH
301CRD (3_” air cone): 4.00 to 7.00 GPH
301CRD (3_” air cone): 3.00 to 6.00 GPH
301CRD (3_” air cone): 4.00 to 7.00 GPH
Fuels
U.S: No. 1 or No. 2 Fuel oil
Canada: No. 1 Stove oil or No. 2 Heating oil
Canada: No. 1 Stove oil or No. 2 Heating oil
Nozzles
(3) 45¡ “SS” Hago
Fuel Unit
Suntec 100 to 150 psig nozzle pressure Factory set at 150 psig
Electrical
Power: 120V/60 Hz/1-Phase
Motor: Carlin PSC, 1/4 HP, 3450 RPM
Total current at 120V/60 Hz/1-Phase: 201CRD : Approx. 3.2 amps 301CRD : Approx. 3.2 amps
Motor: Carlin PSC, 1/4 HP, 3450 RPM
Total current at 120V/60 Hz/1-Phase: 201CRD : Approx. 3.2 amps 301CRD : Approx. 3.2 amps
Ignition
Carlin Model 41000 electronic Ñ 14,000 volts
Agencies
UL Listed: US & Canada
201CRD / 301CRD Oil Burner Instruction Manual
-
301CRD Commercial Oil Burner 916520033JBN
Min output (GPH) 3Max output (GPH) 7Fuels #2 B20Control 70200Ignition 45000 -
301CRD Commercial Oil Burner 916520033JN
Min output (GPH) 3Max output (GPH) 7Fuels #2 B20Control 70200Ignition 45000 -
301CRD Commercial Oil Burner 9165200B02B
Min output (GPH) 3Max output (GPH) 7Fuels #2 B20Control 70200Ignition 45000 -
301CRD Commercial Oil Burner 91652B01
Min output (GPH) 3Max output (GPH) 7Fuels #2 B20Control 40200Ignition 41000 -
301CRD Commercial Oil Burner 91652B02
Min output (GPH) 3Max output (GPH) 7Fuels #2 B20Control 70200Ignition 45000
