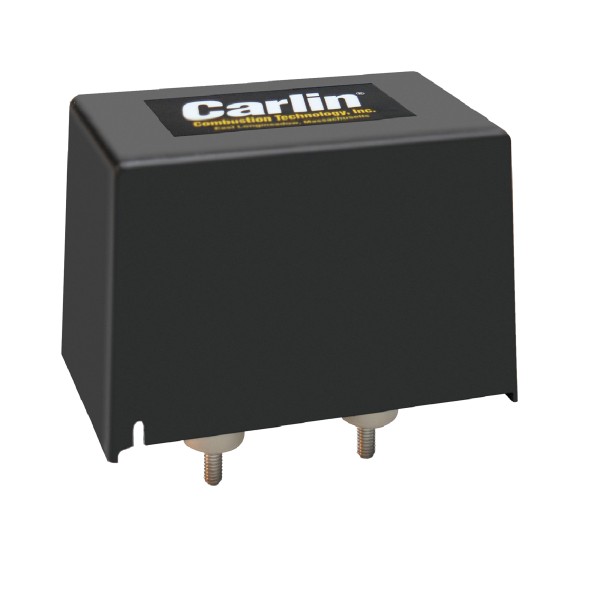

41000 Ignitor
14,000 volt and 20,000 volt output for smoother ignition. Solid state technology yields high performance, long life and durability constant-duty rated. Low current draw saves electricity. Epoxy sealant provides water resistance and heat dissipation Consistent voltage output across a wide range of imput voltages. Easy testing 41000 ignitor spark can jump 1/2_ gap.
Model 41000
PowerInput
120vac, 60 Hz, 40 VA
IgnitorOutput
19KV, 35 mA RMS
SecondaryGrounding
Midpoint
OperatingTemperature Limits
+32 ºF to + 140 ºF
StorageTemperature Limits
-40 ºF to +185 ºF
Agencies
ULRecognized (US), CSA Certified (Canada)
41000 Ignitor Data Sheet
Ignitor Test Procedure
-
41000 Ignitor 41000SOCAS
Power input 120VPower output 19000VSecondary Grounding MidpointBaseplate YesBaseplate Compatability Carlin Residential -
41000 Ignitor 41000SOSC
Power input 120VPower output 19000VSecondary Grounding MidpointBaseplate YesBaseplate Compatability Carlin 201CRD - 301CRD -
41000 Ignitor 41000SOWA1
Power input 120VPower output 19000VSecondary Grounding MidpointBaseplate YesBaseplate Compatability Wayne HS -
41000 Ignitor 41000SOWA2
Power input 120VPower output 19000VSecondary Grounding MidpointBaseplate YesBaseplate Compatability Wayne E -
41000 Ignitor 41000S
Power input 120VPower output 19000VSecondary Grounding MidpointBaseplate No -
41000 Ignitor 41000SOBK1
Power input 120VPower output 19000VSecondary Grounding MidpointBaseplate YesBaseplate Compatability Beckett AF, AFG -
41000 Ignitor 41000SOLC
Power input 120VPower output 19000VSecondary Grounding MidpointBaseplate YesBaseplate Compatability Carlin Large Comm. Oil + Comm Gas
