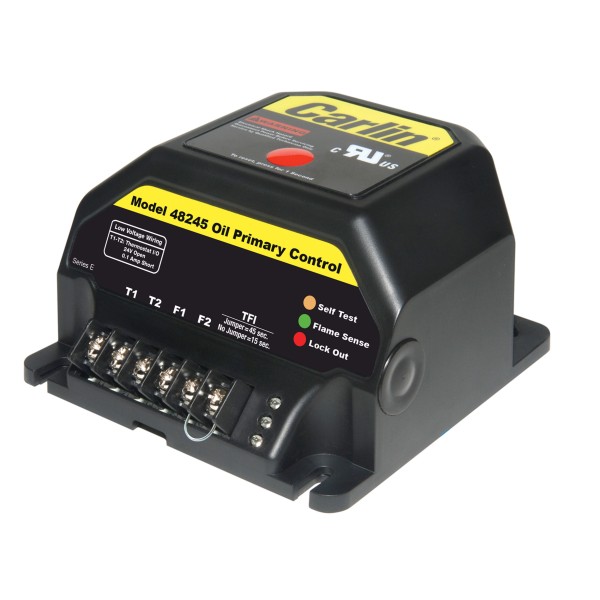

48245 PrimaryControl
Specs At A Glance
TFI (secs) Selectable 45 or 15
Pre purge N/A
Post purge N/A
Recycles Yes
Ignition Type Intermittent Smart Ignition
Features & Benefits:
- Now with 45 or 15 second trial for ignition (TFI)
- LED indicators
- Thermostat/aquastat compatible
- Optional Smart Ignitiontechnology
Power Input(From Limit Circuit)
120 vac, 60 Hz, 10 VA
Motor Load
10 FLA, 60 LRA
Ignitor Load
120 vac, 60 Hz, 500 VA
Operating Temperature Limits
+32ºF to +140ºF
Storage Temperature Limits
-40ºF to +185ºF
Thermostat Anticipator Current
0.1 A, AC
Agencies
UL & ULC Recognized Component United States & Canada
