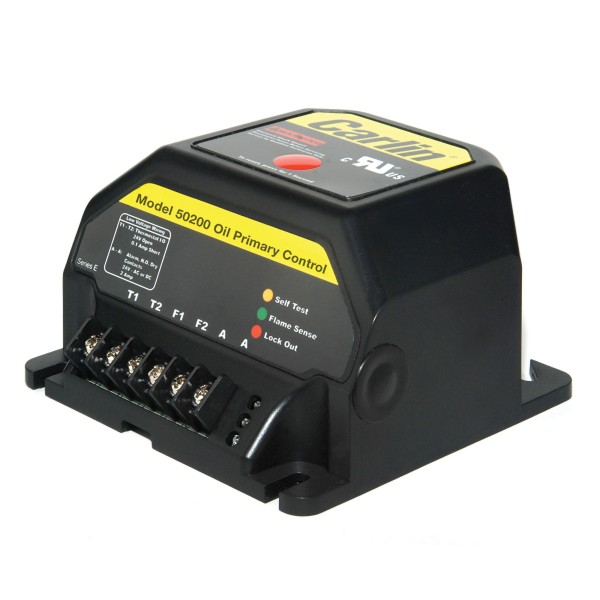

50200 Primary Control
Specs At A Glance
TFI (secs) Fixed 15
Pre purge N/A
Post purge N/A
Recycles Yes
Ignition Type Interuptted
- Interrupted Duty Ignition
- Recycle on Flame Failure
- Serviceman Reset Protection ( Latch-up after three consecutive lockouts)
- Diagnostic LED’s
- 15 Second Trial for Ignition (TFI) Other Timings Available
- 1.3 Second Flame Failure response time (FFRT)
- Alarm Contacts
- Thermostat/ Aquastat Compatible
- SMC (Safety Monitoring Circuit) Technology
Power Input(From Limit Circuit)
120 vac, 60 Hz, 9 VA
Motor Load
10 FLA/60 LRA
Ignitor Load
120 vac, 60 Hz, 500 VA
Alarm Contacts
24 V, AC/DC, 2 A
Operating Temperature Limits
+ 32ºF to + 140ºF
Storage Temperature Limits
-40ºF to +185ºF
Thermostat Anticipator Current
0.1 A, AC
Agencies
UL & ULC Recognized Component United States & Canada
