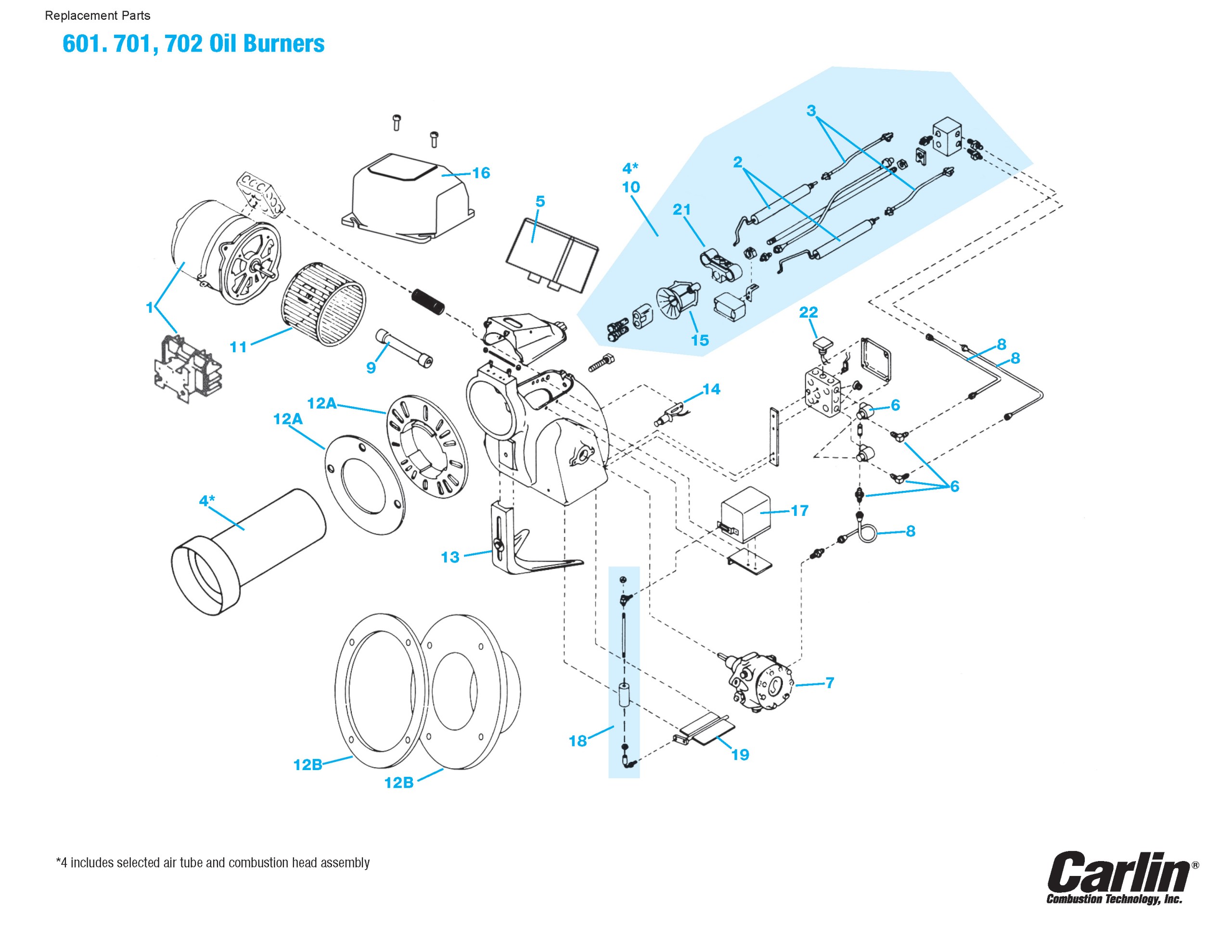

601CRD Commercial Oil Burner
Specs At A Glance
Min output (GPH) 6
Max output (GPH) 13.2
Fuels #2 B20
Control 70200
Ignition 45000
The 601CRD advanced oil burner features Carlin’s adjustable combustion head assembly – for unmatched fuel/air mixing, smooth light-offs and quiet running. Proven for years in the field and in extensive boiler and furnace testing, these
burners will meet your needs for commercial oil-burning applications.
Input
6.0to 13.2 GPH
Fuels
U.S.– No. 1 or No. 2 Fuel Oil
Canada – No. 1 Oil or No. 2 Furnace Oil
Canada – No. 1 Oil or No. 2 Furnace Oil
Nozzles
(1)Required, Sized 45¡ “SS” Hago or 45¡ “H”Hago
FuelUnit
2-Stage,”B” Style,150 PSIG
OilValves
InstantOpen Carlin SVC1OFF
Control
Carlin60200 Primary Control
Electrical
Power:120 vac/60Hz/1-Phase
Current:Approx. 9.0 amps
LimitCircuit Input (60200 Primary): 120 vac/60 Hz
Motor:1/2 HP, 3450 RPM, 60 Hz, Optional 208-230 vac/60 Hz
MotorFrame: 48-Frame, “N” Flange
Oil Valve Power: 120 vac/60 Hz
Current:Approx. 9.0 amps
LimitCircuit Input (60200 Primary): 120 vac/60 Hz
Motor:1/2 HP, 3450 RPM, 60 Hz, Optional 208-230 vac/60 Hz
MotorFrame: 48-Frame, “N” Flange
Oil Valve Power: 120 vac/60 Hz
Ignition
CarlinModel 41000 solid state electronic ignition IgnitionVoltage: 14,000 volts
Agencies
ULListed: US & Canada
Commercial Oil Burner Brochure
601CRD Oil Burner Data Sheet
601CRD Oil Burner Instruction Manual
-
