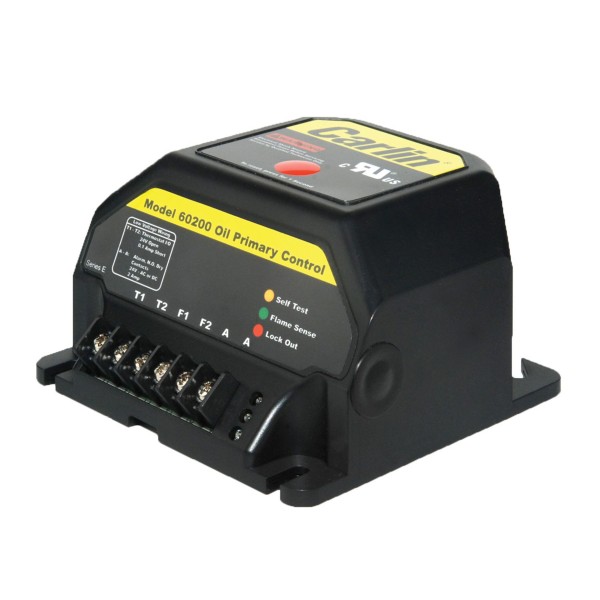

60200 Primary Control
- Interrupted Duty Ignition
- Recycle on Flame Failure
- Serviceman Reset Protection ( Latch-up after three consecutive lockouts)
- Diagnostic LED’s
- Valve Delay on/motor Delay OFF (Pre/post purge – Contact Carlin for Available Timings)
- 15 Second Trial for Ignition (TFI) Other Timings Available
- 1.3 Second Flame Failure response time (FFRT)
- Alarm Contacts
- Thermostat/Aquastat Compatible
- SMC (Safety Monitoring Circuit) Technology
Power Input (Red/White Wire)
120 vac, 60 Hz, 9 VA
Limit Circuit Input (Black Wire)
120 vac, 60 Hz
Motor Load
10 FLA, 60 LRA
Ignitor Load
120 vac, 60 Hz, 500 VA
Valve Load
120 vac, 60 Hz, 0.3 Amps
Alarm Contacts
24 V, AC/DC, 2 Amps
Operating Temperature Limits
+ 32ºF to + 140ºF
Storage Temperature Limits
-40ºF to +185ºF
Thermostat Anticipator Current
0.1 A, AC
Agencies
UL & ULC Recognized Component United States & Canada

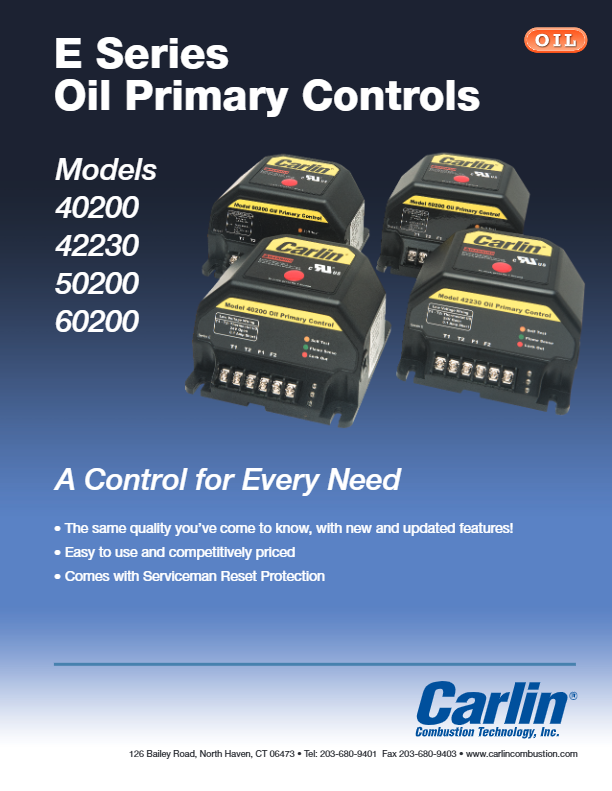

Series-E Oil Primary Controls Product Sheet
60200 5-Wire/Limit Powered Oil Primary Control Data Sheet
60200 CAD Oil Primary Control Data Sheet

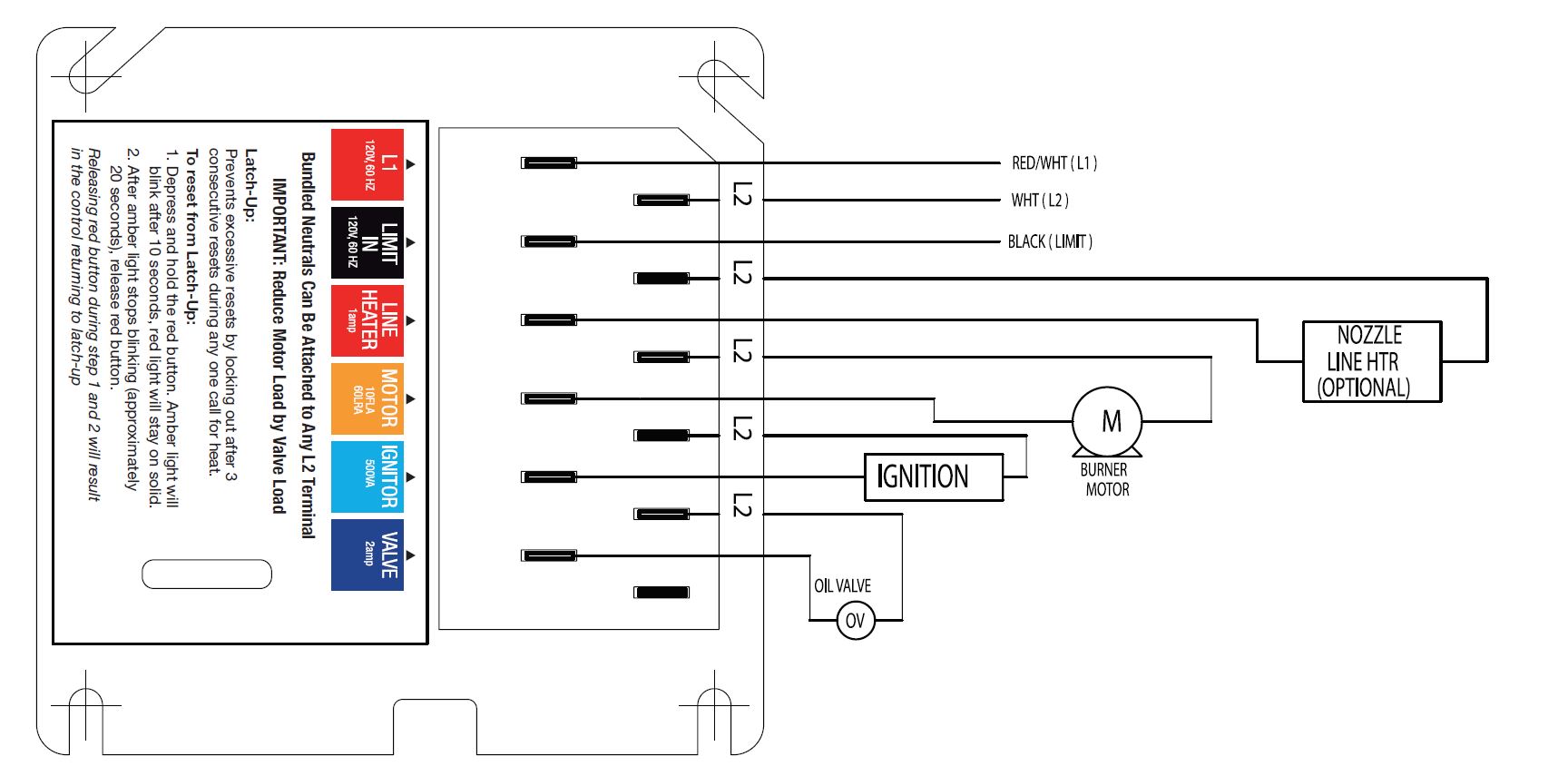

60200FR Wiring to Commerical Gas Train
60200 Wiring (Small Commercial Appliance)
60200 Wiring (Large Commercial Appliance)
-
60200 Primary Replacement Control 6020002S
TFI (secs) Fixed 15Pre purge 15Post Purge 15Recycles YesIgnition Type Interuptted -
60200 Primary Replacement Control 6020002S015120
TFI (secs) Fixed 15Pre purge 15Post Purge 120Recycles YesIgnition Type Interuptted -
60200 Primary Replacement Control 6020002S030015
TFI (secs) Fixed 15Pre purge 30Post Purge 15Recycles YesIgnition Type Interuptted -
60200 Primary Replacement Control 6020002S030030
TFI (secs) Fixed 15Pre purge 30Post Purge 30Recycles YesIgnition Type Interuptted -
60200 Primary Replacement Control 6020002S030120
TFI (secs) Fixed 15Pre purge 30Post Purge 120Recycles YesIgnition Type Interuptted -
60200 Primary Replacement Control 6020002S030300
TFI (secs) Fixed 15Pre purge 30Post Purge 300Recycles YesIgnition Type Interuptted -
60200 Primary Replacement Control 6020002S060010
TFI (secs) Fixed 15Pre purge 60Post Purge 10Recycles YesIgnition Type Interuptted -
60200 Primary Replacement Control 6020051S
TFI (secs) Fixed 15Pre purge 10Post Purge 0Recycles YesIgnition Type Interuptted -
60200 Primary Replacement Control 60240S11
TFI (secs) Fixed 15Pre purge 10Post Purge 10Recycles YesIgnition Type Interuptted -
60200FR Primary Programmable Control 60200FRNS
TFI (secs) Fixed 4Pre purge 30Post purge 30Recycles NO -
60200FR Primary Programmable Control 60200FRS
TFI (secs) ProgrammablePre purge 0, 10, 30, 90Post purge 0, 10, 15, 30, 60, 120Recycles NO
