90224 Temperature Limit Control
Specs At A Glance
Temperature Limit (ºF) 50-240 Selectable
High Limit N/A
Power Input (VAC) 24
Features & Benefits
- 24 vac
- Microprocessor-operated (Processor coordinates operation and diagnostic)
- Easy remote sense (Electronic sensor, wired to control)
- Select from Break-on-Rise or Make-on-Rise operation
- Self-checking program (Control locks out on diagnostic failure)
- Diagnostic/status LED’s (LED’s indicate power, call for heat, and lockout
Model90224A
- 1 Break-on-Rise contact
- 1 Electronic sensor
- Lockout on diagnostic failure
- Reset from lockout via power cycle
PowerInput(Black-Red Wire)
24vac, 1 VA
Contacts
1 Break-on-Rise
ContactRating
24 vac, 1 Amp
Wires
Quantity:2
Contact In/Out: Black-red/Black-yellow
Contact In/Out: Black-red/Black-yellow
AdjustableOperating Range
Anyrange between 50ºF to 240ºF
FixedDifferential (Subtractive)
Anyvalue from 5ºF to 100ºF
OperatingTemperature Limits
+32ºF to +140ºF
StorageTemperature Limits
-40ºF to +185ºF
Agencies
UL& ULC Recognized Component (US &Canada)
Model90224B
- Make-on-Rise contact
- 1 Electronic sensor
- Lockout on diagnostic failure
- Reset from lockout via power cycle
PowerInput(Black-Red Wire)
24vac, 1 VA
Contacts
1 Mreak-on-Rise
ContactRating
24 vac, 1 Amps
Wires
Quantity: 2
Contact In/Out: Black-red/Black-yellow
Contact In/Out: Black-red/Black-yellow
AdjustableOperating Limit Range
Any range between 90ºF to 160ºF
FixedDifferential (Subtractive)
Anyvalue from 5ºF to 100ºF
OperatingTemperature Limits
+32ºF to +140ºF
StorageTemperature Limits
-40ºF to +185ºF
Agencies
UL& ULC Listed Component (US & Canada)

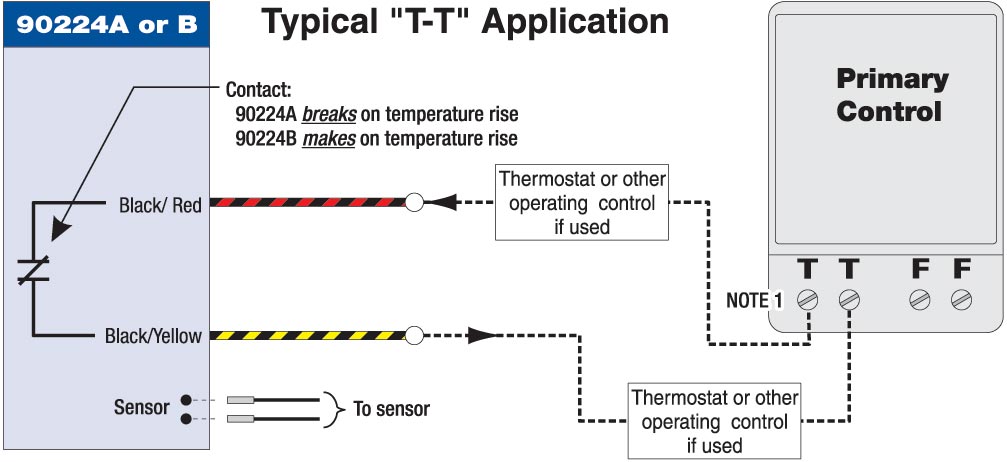

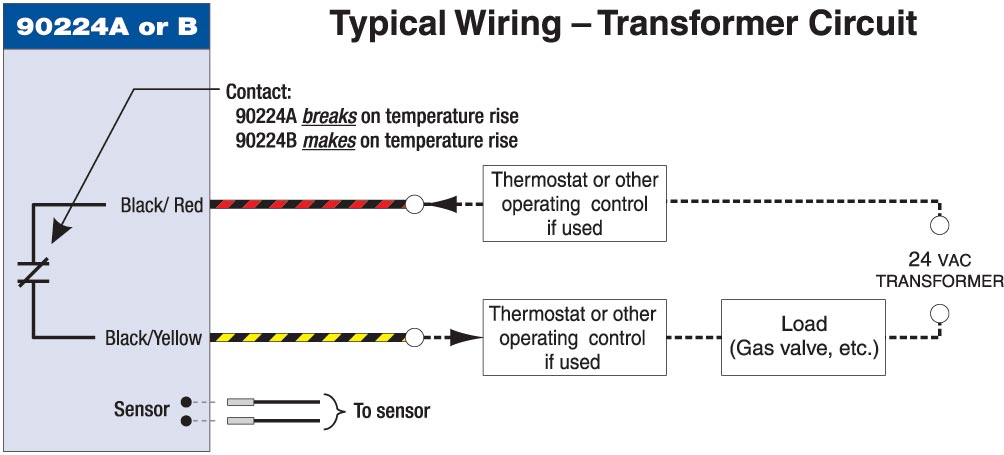

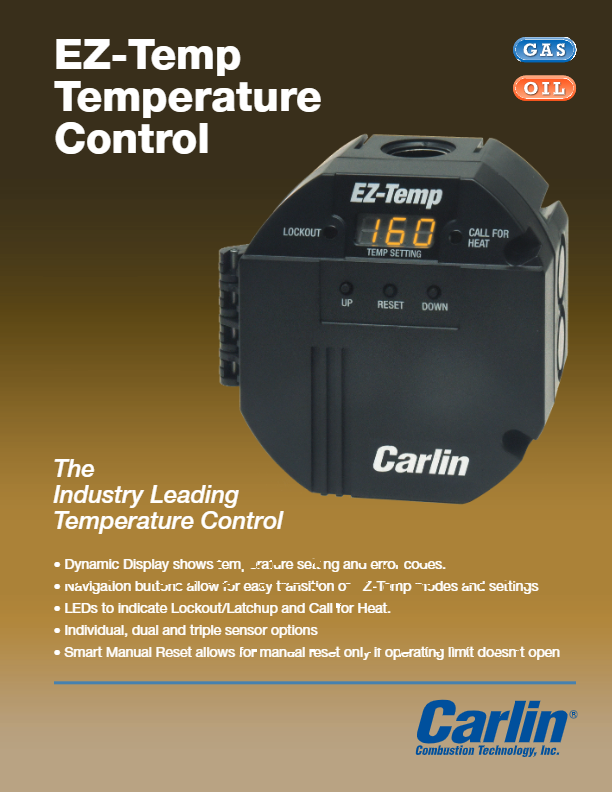

EZ-Temp Product Sheet
