EZ 1 Residential Oil Burner
Specs At A Glance
Ready When You Are:
Always looking to set the standard, all Carlin Residential Oil Burners are now UL Listed for B100*. This marks the next step in the industry’s commitment to a clean carbon-free environment that we are very proud to play a role in. Get the same Carlin burner you’ve come to rely on, now UL Listed for B100! Confidently burn #2, B5, B100 or any biofuel blend in between.
*B20 manufactured between 2/16/2021 and 11/17/2023
*B100 manufactured after 11/20/2023
What you get with your EZ-Series Burner:

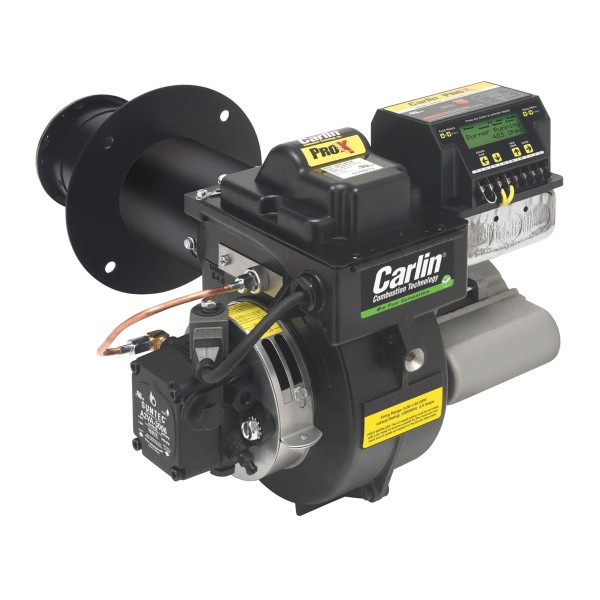

The EZ-Series advanced oil burners combines state of the art components with the proven range and reliability of a Carlin burner. Available in any of three configurations: EZ-1, EZ-2, or EZ-3 (Specify tube length when ordering).
State-of-the-Art Technology
- Pro-X 70200 Diagnostic Oil Primary Control
- Built in LCD Display
- 3 Different Ignition Types
- Last Fault Alert
- Detailed Fault History
- Simple, on screen navigation
- Pro-X 45000 Universal Oil Ignitor
- Tested under extreme conditions, giving trusted confidence in any situation
- Robust circuit design, providing further reliability
- Optimized heat management for added durability
Unmatched Performance
-
- EZ Design – Developed with the Tech in mind for simplified setup and servicing
- OEM Specifications – Factory set to individual OEM requirements for optimal appliance performance and efficiency
- Quiet Operation – Engineered for smooth light-off, combustion and minimal burner noise

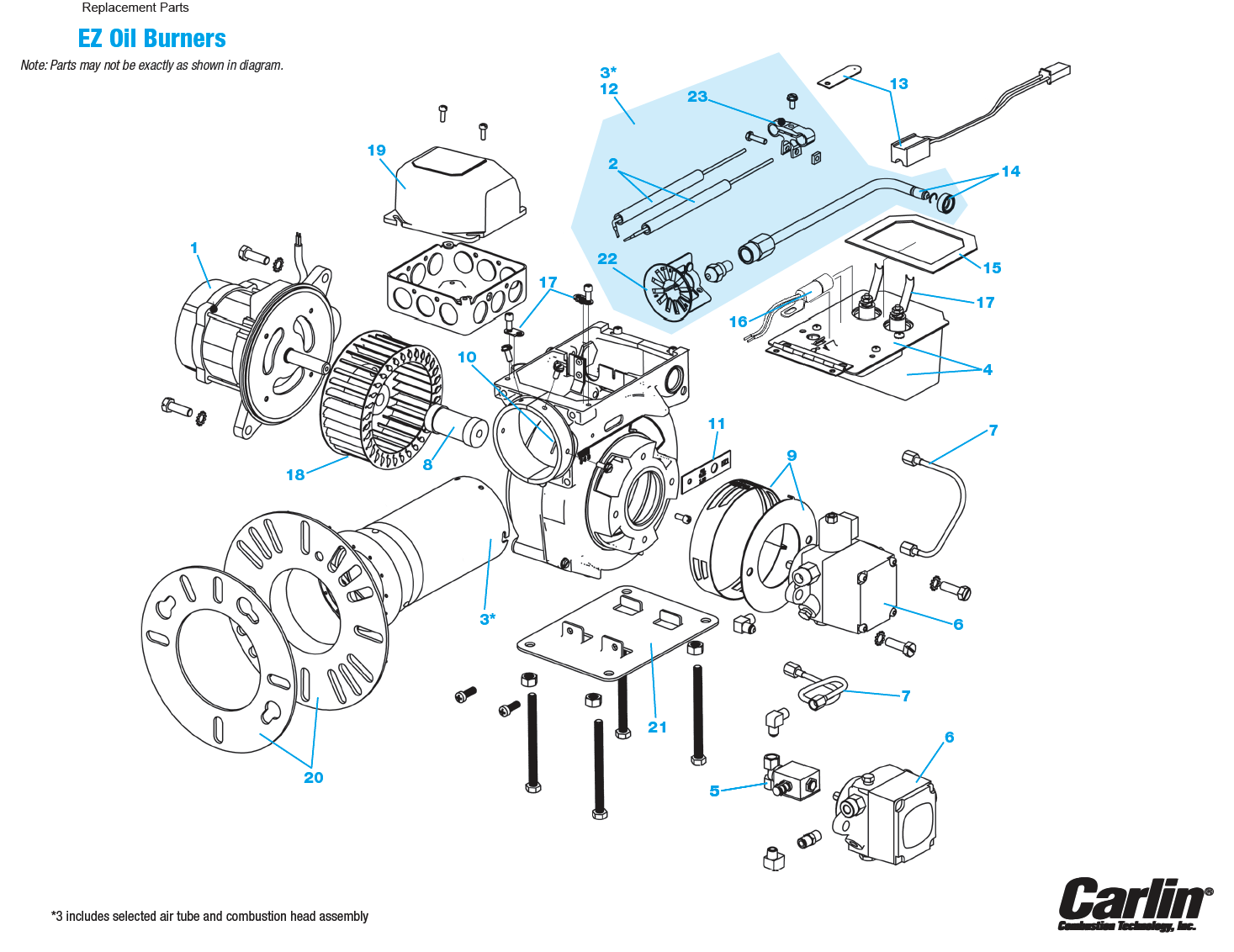

Highest Quality Components & Attention to Detail:
-
- Stainless steel nozzle lines mated with custom formed oil lines, for strip-proof alignment
- Suntec ÒBÓ fuel pumps with latest advancements for optimal performance with today’s fuels
- PSC Motor provides required torque with reduced energy consumption
EZ-2: 1.50 to 2.25 GPH
EZ-3: 2.00 to 2.50 GPH
Canada – No. 1 Oil or No. 2 Furnace Oil
Current: Approximately 5.8 Amps
Limit Circuit Input: 120 vac, 60 Hz
Motor (PSC): 1/6 HP, 3450 RPM
Motor Frame: 48-Frame, “M” Flange
Oil Valve Power: 120 vac, 60 Hz
Alarm Contacts (Isolated): 24 VAC/VDC, 2 Amps
Ignition Voltage: 19,000 volts
EZ 123 Oil Burner Instruction Manual
Annual Maintenance
We recommend a tune-up of your HVAC system at least once a year to keep everything running at peak efficiency. Ideally, this should be scheduled in the summer months to confirm your system is ready to go before heating season (October – February) arrives.
Freeze Protection
Central heating systems are prone to shut down as a result of power or fuel outages, safety related fault conditions or equipment failure. Installation of freeze protection monitoring or other precautions is recommended for unattended dwellings in climates subject to sustained below-freezing temperatures.
-
EZ 1 Residential Oil Burner 81201
Firing Range (GPH) 0.5 - 1.65Fuels #2 B20Control 48245Ignition 41000Air Tube N/A -
EZ 1 Residential Oil Burner 8120100B
Firing Range (GPH) 0.5 - 1.65Fuels #2 B20Control 40200Ignition 41000Air Tube N/A -
EZ 1 Residential Oil Burner 96876-05A
Firing Range (GPH) 0.5 - 1.65Fuels #2 B20Control 48245Ignition 41000Air Tube 5" -
EZ 1 Residential Oil Burner 96876-05B
Firing Range (GPH) 0.5 - 1.65Fuels #2 B20Control 40200Ignition 41000Air Tube 5" -
EZ 1 Residential Oil Burner 96876-05JP
Firing Range (GPH) 0.5 - 1.65Fuels #2 B20Control 70200Ignition 45000Air Tube 5" -
EZ 1 Residential Oil Burner 96876-0700K
Firing Range (GPH) 0.5 - 1.65Fuels #2 B20Control 42230Ignition 41000Air Tube 7" -
EZ 1 Residential Oil Burner 96876-07A
Firing Range (GPH) 0.5 - 1.65Fuels #2 B20Control 48245Ignition 41000Air Tube 7" -
EZ 1 Residential Oil Burner 96876-07B
Firing Range (GPH) 0.5 - 1.65Fuels #2 B20Control 40200Ignition 41000Air Tube 7" -
EZ 1 Residential Oil Burner 96876-07JP
Firing Range (GPH) 0.5 - 1.65Fuels #2 B20Control 70200Ignition 45000Air Tube 7" -
EZ 1 Residential Oil Burner 96876-0900K
Firing Range (GPH) 0.5 - 1.65Fuels #2 B20Control 42230Ignition 41000Air Tube 9" -
EZ 1 Residential Oil Burner 96876-09A
Firing Range (GPH) 0.5 - 1.65Fuels #2 B20Control 48245Ignition 41000Air Tube 9" -
EZ 1 Residential Oil Burner 96876-09B
Firing Range (GPH) 0.5 - 1.65Fuels #2 B20Control 40200Ignition 41000Air Tube 9" -
EZ 1 Residential Oil Burner 96876-09JP
Firing Range (GPH) 0.5 - 1.65Fuels #2 B20Control 70200Ignition 45000Air Tube 9" -
EZ 1 Residential Oil Burner 9687600E
Firing Range (GPH) 0.5 - 1.65Fuels #2 B20Control N/AIgnition 41000Air Tube N/A -
EZ 1 Residential Oil Burner 9687600JI
Firing Range (GPH) 0.5 - 1.65Fuels #2 B20Control 70200Ignition 41000Air Tube N/A -
EZ 1 Residential Oil Burner 9687607JC
Firing Range (GPH) 0.5 - 1.65Fuels #2 B20Control 70200Ignition 45000Air Tube 7" -
EZ 1 Residential Oil Burner 9687609JC
Firing Range (GPH) 0.5 - 1.65Fuels #2 B20Control 70200Ignition 45000Air Tube 9" -
EZ 1 Residential Oil Burner 9687611JC
Firing Range (GPH) 0.5 - 1.65Fuels #2 B20Control 70200Ignition 45000Air Tube 11"
