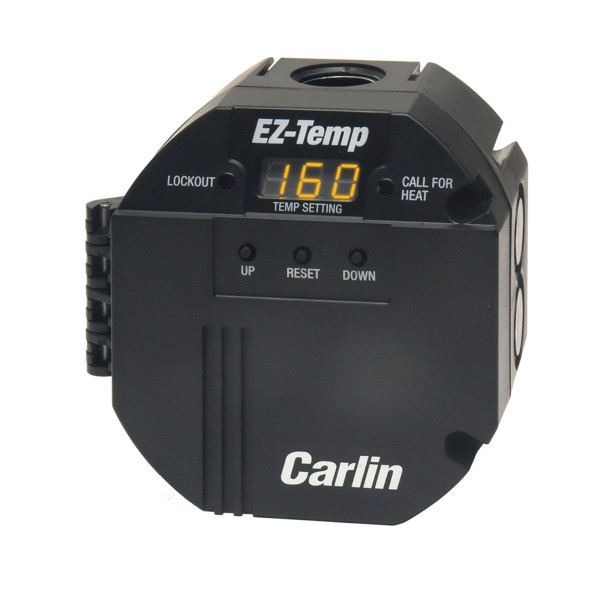

EZ-Temp 90000 Temperature Single Limit Control

Features & Benefits

• Multiple Sensor Option (1 or 2) (Using individual and/or dual sensor assemblies)
• Easy Remote Sense (Electronic sensors, wired to control)
• Smart Manual Reset (Manual reset only if operating limit doesn’t open)
• Serviceman reset protection (Latch-up after three consecutive lockouts)
• Latch-up mode shuts down the control after three consecutive lockouts and requires a special procedure to reset. This ensures the owner will call in a licensed technician to troubleshoot and correct burner problems.
• Power-independent Lockout (Power cycling won’t reset from lockout or latch-up)
• Diagnostic LED’s (Power, Call for Heat, Lockout/latch-up)
• SMC Technology (Safety Monitoring Circuit)
• Provides two limit relays. Carlin’s Safety Monitoring Circuit monitors the contacts for both relays. Lockout occures if a limit relay contact is found closed when it should be open.)

EZ-Temp Product Sheet

EZ Temp Model 90000 Data Sheet

EZ-Temp Temperature Control - Instruction Manual
