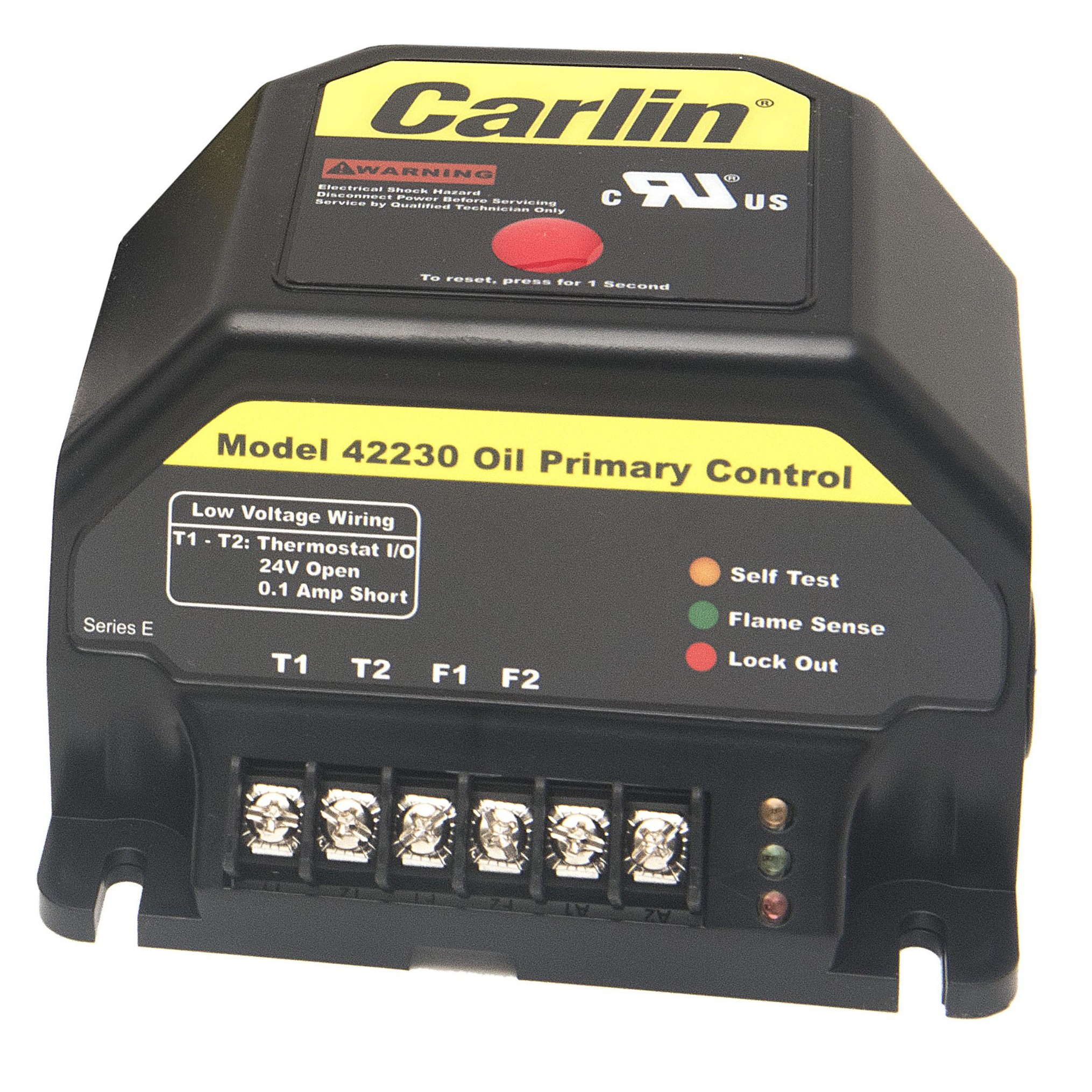

42230 Primary Control
- Interrupted Duty Ignition
- 30-Second TFI (1.3 Second Flame Failure Response Time – FFRT)
- Recycle on Flame Failure
- Thermostat/Aquastat Compatible
- Safety Monitoring Circuit (SMC) Technology
Tech Specs
| Power Input (From Limit Circuit) | 120 vac, 60 Hz, 10 VA |
| Motor Load | 10 FLA, 60 LRA |
| Ignitor Load | 120 vac, 60 Hz, 500 VA |
| Operating Temperature Limits | 32°F to 140°F |
| Storage Temperature Limits | -40°F to 185°F |
| Thermostat Anticipator Current | 0.1 Amp, AC |
| Agencies | UL Recognized in the United States and Canada |
