Carlin Air Boot
Basic Setup:
Carlin burners are factory set. However, you must use a combustion analyzer to verify that the burner is properly set up per the appliance manufacturer’s listed settings.
- Remove the air band access cover
- Loosen the lock screw and move the air band to achieve the desired CO2 setting. Consult the appliance manufacturer’s literature included with this unit for the proper settings.
- Tighten the air band lock screw.
- Replace the air band access cover and use a combustion analyzer to verify that the burner is properly set up per the appliance manufacturer’s listed settings.
Carlin Air Boot
Basic Setup:
Carlin burners are factory set. However, you must use a combustion analyzer to verify that the burner is properly set up per the appliance manufacturer’s listed settings.
- Remove the air band access cover
- Loosen the lock screw and move the air band to achieve the desired CO2 setting. Consult the appliance manufacturer’s literature included with this unit for the proper settings.
- Tighten the air band lock screw.
- Replace the air band access cover and use a combustion analyzer to verify that the burner is properly set up per the appliance manufacturer’s listed settings.

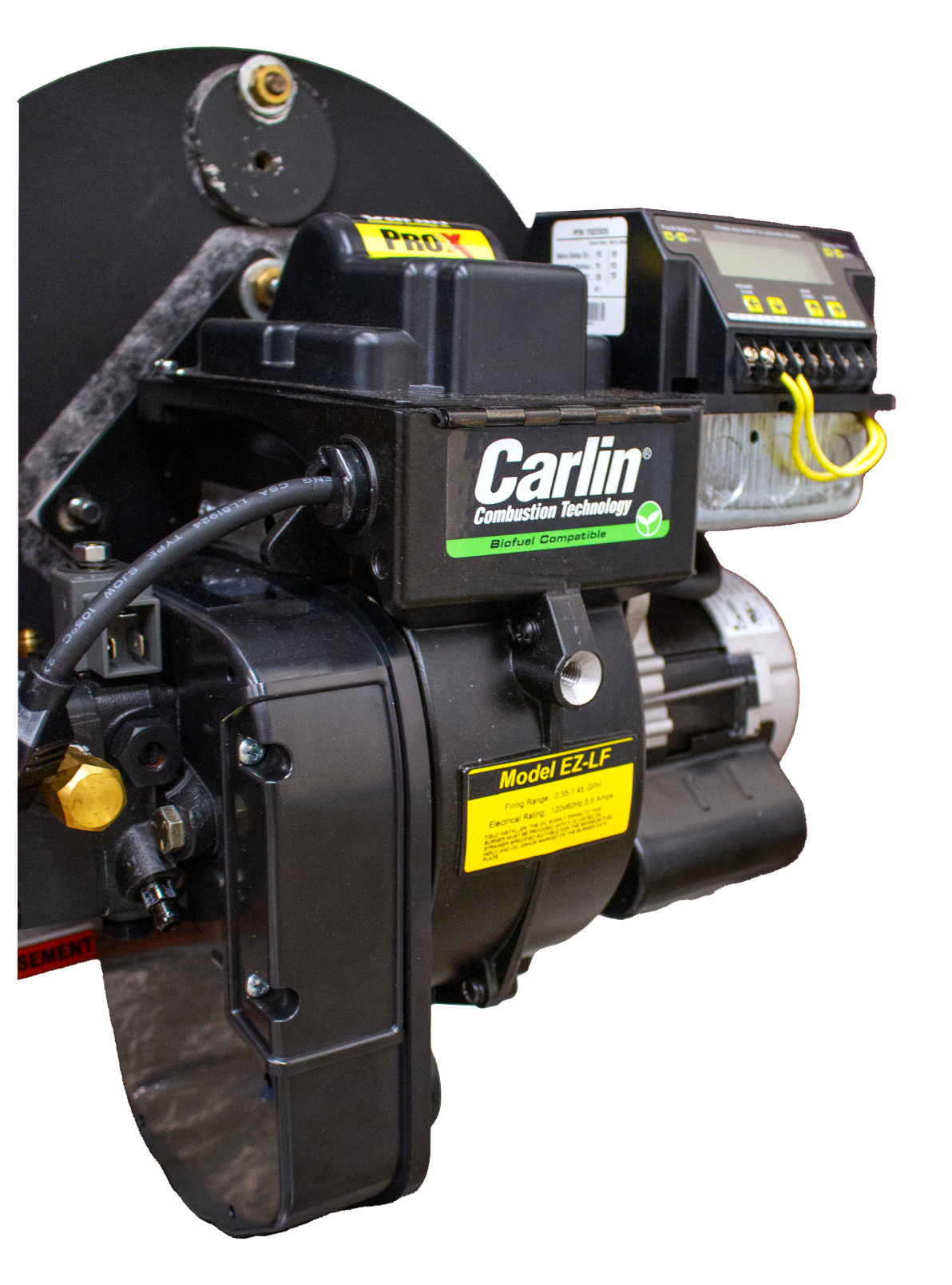

Components

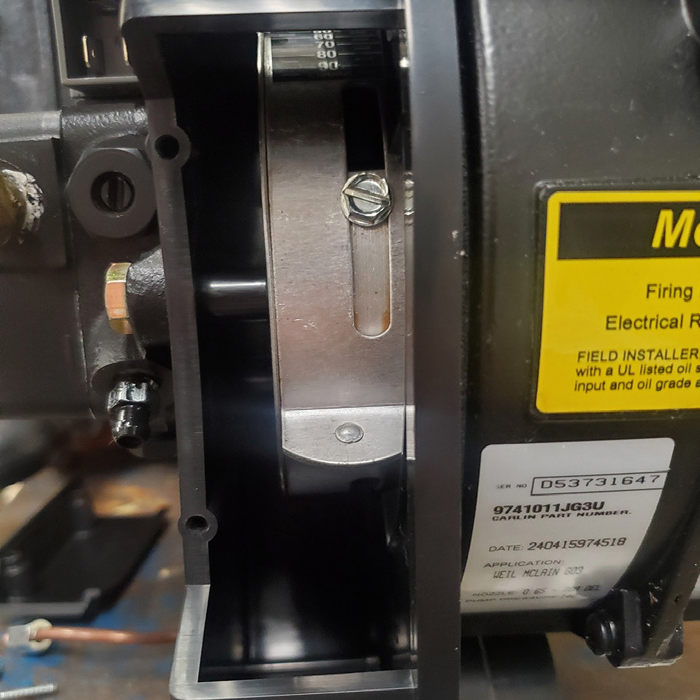

Air Band Access Cover (Removed)

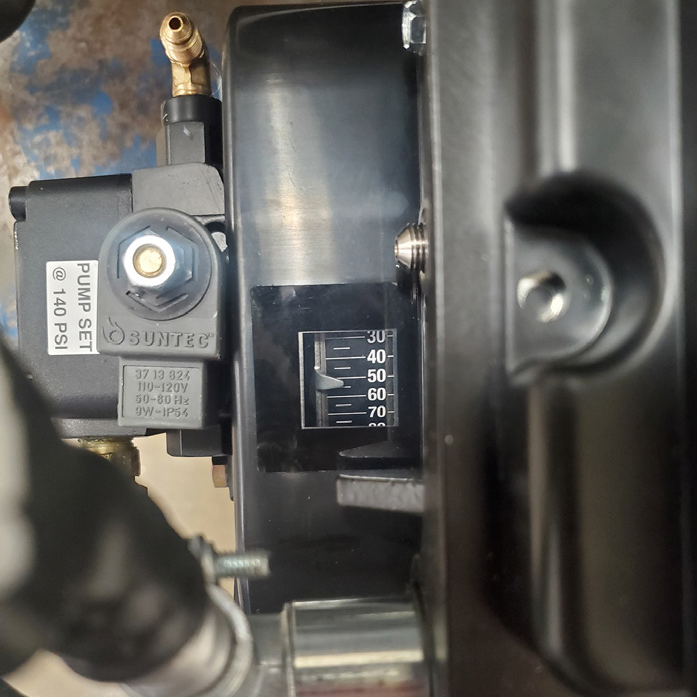

Air Setting Window
Air Inlet
Components:
Air Band Access Cover
Air Setting Window
Air Inlet
