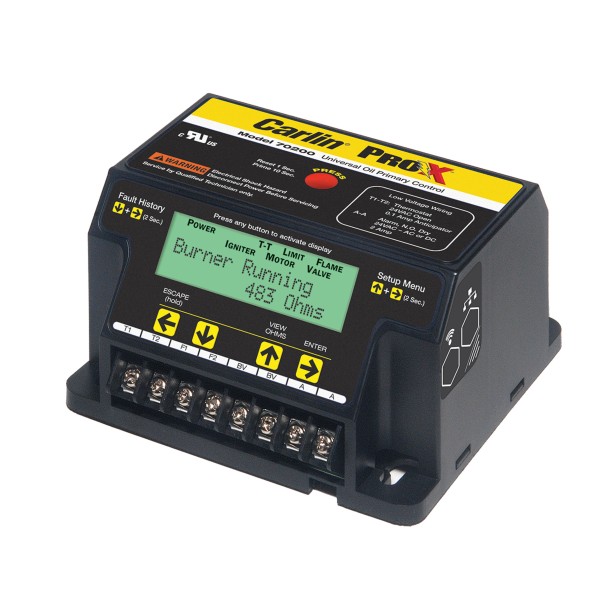

Pro-X 70200 Programmable Primary Control
Specs At A Glance
TFI (secs) Programmable 10, 15, 30, 45
Pre purge 0, 3, 10, 15, 30, 60, 120
Post purge 0, 10, 15, 30 secs 2mins, 5mins, 15mins
Recycles Yes
Ignition Type Interuptted Intermittnent Smart Igntion
Pro-X 70200 Control:
- ¥ Replaces virtually any oil primary control
- Pinpoints cause of burner faults for fast, accurate repairs
- Provides built-in alarm contacts
Features & Benefits:
- Last Fault Alert – Displays fault reason, even if homeowner resets control
- Larger LCD Display – For improved visibility
- Improved Menu Options – Simplifies setup and navigation
- Recessed Wiring Terminals – Added wiring space in j-box
- Communications Capable – Remote monitoring and alerts
- Low Voltage Blocked Vent Contacts – Allows for easy connections
PowerInput(Red/White Wire)
120 vac, 60 Hz, 9 VA
LimitCircuit Input(Black Wire)
120vac, 60 Hz
MotorLoad
10 FLA / 60 LRA (reduce by valve load)
IgnitorLoad
120 vac, 60 Hz, 500 VA
Valve Load
120 vac, 60 Hz, 2A
Vent Load
0.1 Amp
Line Heater
1 Amp
AlarmContacts(dry contacts)
24V, AC/DC, 2 Amps
OperatingTemperature Limits
+32ºF to + 140ºF
StorageTemperature Limits
-40ºF to +185ºF
ThermostatAnticipator Current
0.1Amp, AC
Agencies
UL Recognized (US & Canada)
Carlin Universal Oil Primary Control Product Sheet
Pro-X 70200 Universal Oil Primary Data Sheet
70200 Error Message Guide
70200 3-Wire Diagram
70200 6-Wire Diagram (Residential Appliance)
70200 Wiring Diagram (Large Commercial Appliance)

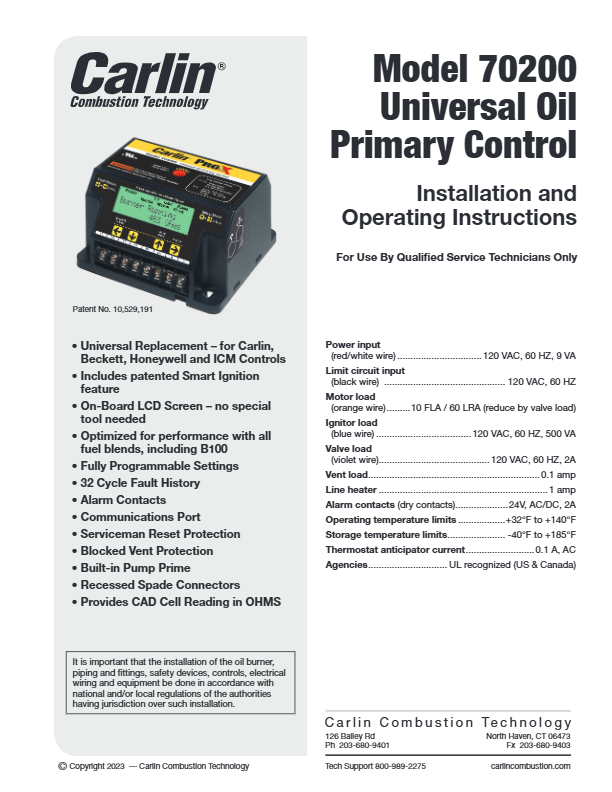

Introduction
<
Chapter 1: Installation
Chapter 2: Set Up
Chapter 3: Start Up
Chapter 4: Status Icons & Screen Messages
Chapter 5: Fault History
Chapter 6: Trouble Shooting
Click Here for training videos on the previous generation 70200
Description
Universal Fully Adjustable Control with Alarm & Blocked Vent Contacts
