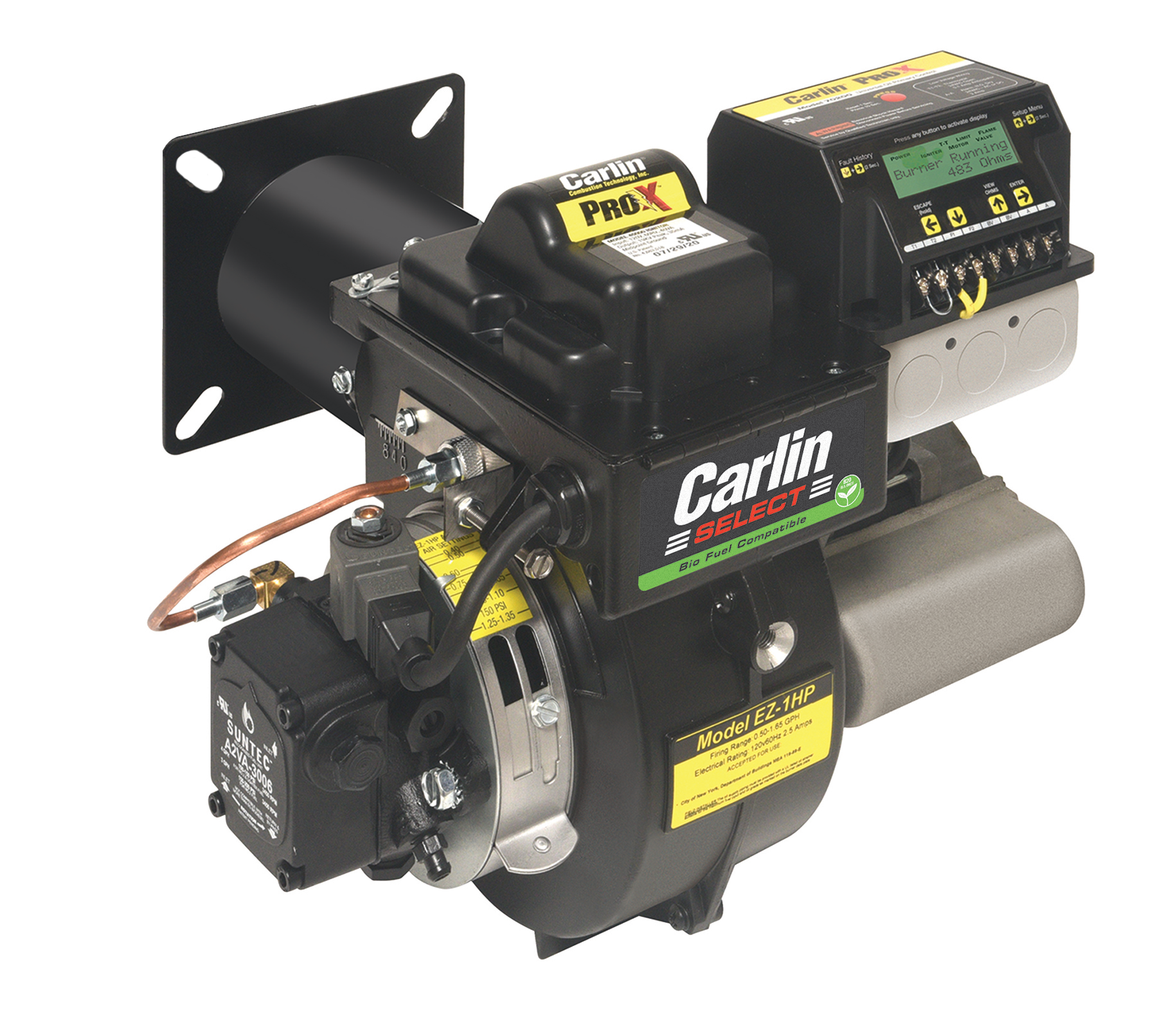

Carlin Select
The Carlin Select provides added flexibility for 3-pass boilers and other demanding applications. The Select’s adjustable head for simple setup and precision combustion. It’s also equipped with a stainless-steel flame wrap for added heat retention, delivering smooth lights-off and quiet combustion.
Standard Equipment
Carlin EZ Burners are fitted with the Pro-X 70200 universal oil primary control. The superior technology in this control boasts built-in alarm contacts, last fault alert, an LCD screen to easily view and change settings. Its standard settings have been optimized to perform with biodiesel blends up to and including B100.
The Pro-X 45000 universal ignitor is Carlin’s most durable ignitor, ever. Tested through hundreds of thousands of on/off cycles at high temperatures at maximum temperature, you can be sure this ignitor has been built to last.
UL Listed B100 Suntec Pump
All burners are equipped with the industry-leading Suntec 3006 pump with integral valve.
*Some burners are fitted with the Suntec 7116 pump with UL rated external valve.
Tech Specs
| Models & GPH | EZ-1: 0.5 – 1.65 GPH EZ LF: 0.35 to 1.45 GPH |
| Fuels | U.S. – No.1 or No. 2 fuel oil, biofuel blends up to and including B100 Canada – No. 1 oil or No. 2 furnace oil |
| Electrical | Power: 120 VAC, 60Hz, 1-Phase Current: Approximately 5.8 Amps Limit Circuit Input: 120 VAC, 60Hz Motor (PSC): 1/6 HP, 3450 RPM Oil Valve Power: 120 VAC, 60Hz Alarm Contacts (Isolated): 24 VAC/VDC. 2 Amps |
| Ignition | Carlin Pro-X 45000 solid state electronic ignition. Ignition Voltage: 19,000 volts |
| Control | Carlin Pro-X 70200 microprocessor control |
| Operating Temperature Limits | Maximum Ambient: 140°F (60°C) |
| Agencies | UL Listed: U.S. & Canada |
Homeowner Information
Annual Maintenance
We recommend a tune-up of your HVAC system at least once a year to keep everything running at peak efficiency. Ideally, this should be scheduled in the summer months to confirm your system is ready to go before heating season (October-February) arrives.
Freeze Protection
Central heating systems are prone to shut down as a result of power or fuel outages, safety related fault conditions or equipment failure. Installation of freeze protection monitoring or other precautions is recommended for unattended dwellings in climates subject to sustained below-freezing temperatures.
