Burn Bio With Confidence

Always looking to set the standard, all Carlin Residential Oil Burners are now UL Listed for Bio Fuel* (blends up to B20). This marks the next step in the industry’s commitment to a clean carbon-free environment that we are very proud to play a role in. Get the same Carlin burner you’ve come to rely on, now UL Listed for B20!

*manufactured after 02/16/2021

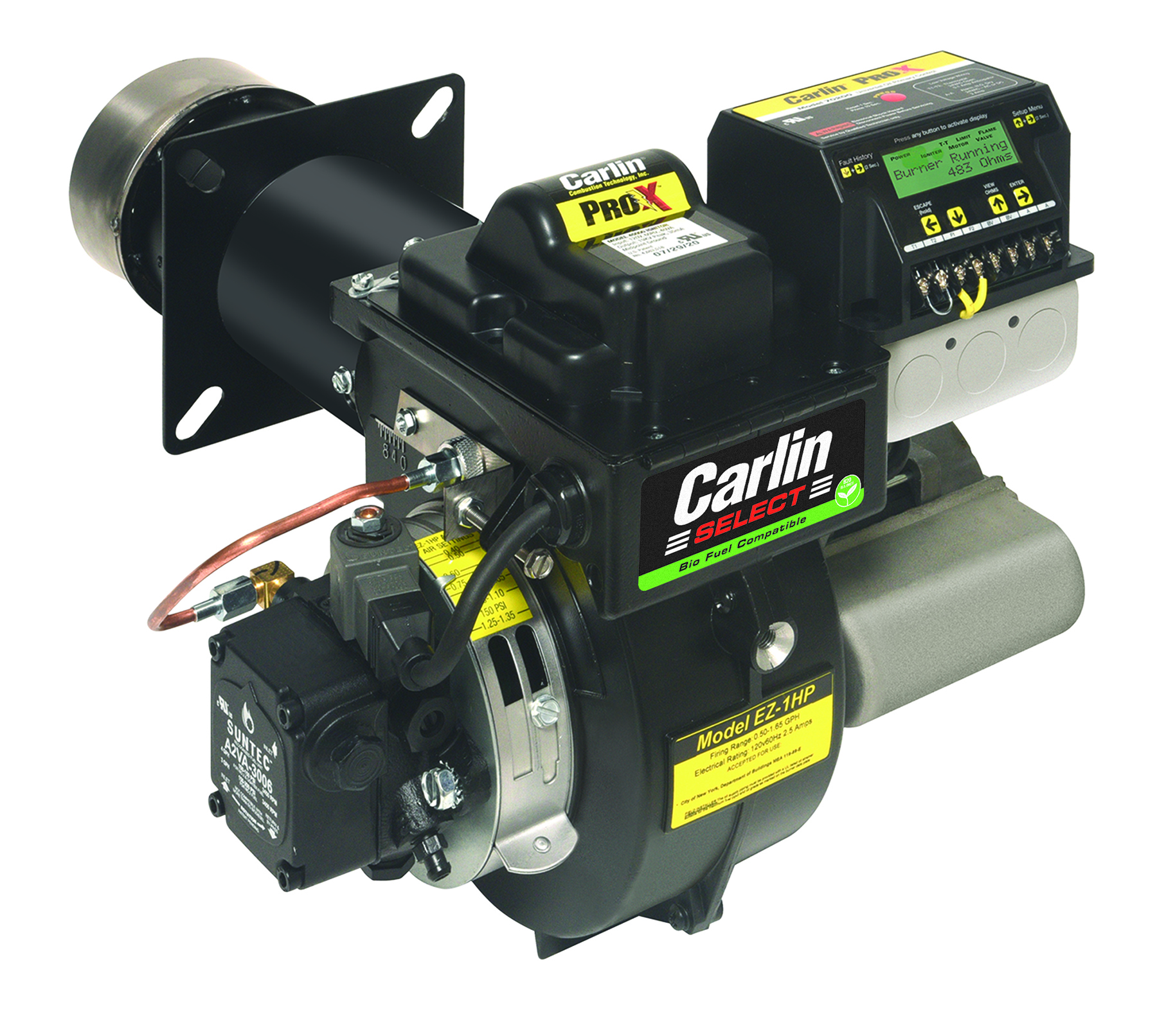

Advanced Performance for today’s Demanding Applications!

Designed with technicians in mind, the Carlin EZ Select provides added flexibility for 3-Pass Boilers and other demanding applications, with features including:

  • Adjustable head for simple setup and precision combustion
  • Stainless steel flame wrap for added heat retention, delivering smooth light-offs and quiet combustion
  • Factory-set and shipped to OEM specs for optimal appliance efficiency and performance straight out of the box
  • Pro-X 70200 Universal Oil Primary with advanced diagnostics and plain language display for fast, accurate repairs

Input

 EZ-1, EZ-1HP: 0.50 to 1.65 GPH

Fuels

 U.S. – No. 1 or No. 2 Fuel Oil
Canada – No. 1 Oil or No. 2 Furnace Oil

Electrical

 Power – 120 VAC/60 Hz/1-phase
Current – Approximately 2.5 amps
Limit circuit input – 120 VAC/60 Hz Motor (PSC) – 1/6 HP, 3450 RPM
Oil valve power – 120 VAC/60 Hz
Alarm contacts (isolated) – 24 VAC/VDC, 2 amps

Ignition

 Carlin Model Pro-X 45000 solid state electronic ignition
Ignition Voltage: 19,000 volts

Control

 Carlin Model Pro-X 70200 Microprocessor Control

Operating Temperature Limits

 Maximum Ambient: 140° F (60° C)

Agencies

 UL Listed: US & Canada

Legislation calling for aggressive reductions in carbon emissions has been adopted throughout states in the northeast.  The Oil Heat Industry has committed to meet this challenge by unanimously ratifying a resolution put forth by The National Energy & Fuels Institute (NEFI) calling for a 15% reduction in carbon emissions by 2023, followed by a 40% reduction by 2030 and Net Zero emissions by 2050.

Bio Fuel blends with increased levels of bio content meet these challenges and create a path forward for the industry. B20 Bio fuel, for which the Carlin burner is now approved, meets the first target of a 15% carbon reduction.

Studies/ White Papers

Videos

Website Resources

Carlin Combustion & Bio Fuel

  • Press Release
  • Burner Sales Sheet

Best Practices

Proper Filtration

The National Oilheat Research Alliance (NORA) recommends single pipe oil systems and high-quality filtration for all fuel types. This should include at least a 10 micron Spin-on filter. Double filtration provides even greater assurance clean fuel will get to the pump. Contaminants in the tank that enter the fuel supply to the burner can cause pump sticking/seizing. These contaminants may increase in the early stages of transitioning to modern fuels (Ultra Low Sulfur and Bio Blends). High quality filtration adds protection against pump sticking

Annual Maintenance

We recommend a tune-up of your HVAC system at least once a year to keep everything running at peak efficiency. Ideally, this should be scheduled in the summer months to confirm your system is ready to go before heating season (October – February) arrives.

Freeze Protection

Central heating systems are prone to shut down as a result of power or fuel outages, safety related fault conditions or equipment failure. Installation of freeze protection monitoring or other precautions is recommended for unattended dwellings in climates subject to sustained below-freezing temperatures.
