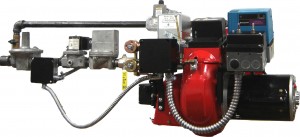

702G/O Dual Fuel Commercial Burner
6.0 to 11.2 GPH Oil
840 to 1600 MBH Gas
The 702GO advanced combination gas/oil burner features Carlin’s adjustable combustion head assembly for unmatched fuel/air mixing, smooth light-offs and quiet running. The automatically-closed air damper and low-high-low step modulation improves efficiency by closer matching the output to the demand and reduces stand-by losses.
|
Input
|
Oil High fire 6.0 to 11.2 GPH Low fire 3.5 to 6.5 GPHGas High fire 840 to 1,600 MBH Low fire 490 to 940 MBH |
|
|
Fuels
|
U.S. – No. 1 or No. 2 Fuel Oil and Natural gas or propane | |
|
Oil Valves |
(2) oil solenoid valves | |
|
Fuel Unit
|
2-Stage, 300 PSIG with internal blocking valve | |
|
Gas Train
|
Two main gas valves & RV-61 or RV-81 regulator, butterfly gas valve for input regulation, 1″ gas train standard, 1 1/4″ , or 1 1/2″ | |
|
Control
|
Honeywell RM7895C | |
|
Electrical
|
Power: 120 vac/60Hz/1-Phase
Limit Circuit Input (RM7895C Primary): 120 vac/60 Hz Control Circuit Load (120 vac): 1.2 amps Motor: 1/2 HP, 3450 RPM, 60 Hz, 115/208-230 vac, 1-Phase, 8.4/3.8-4.2 amps Motor Frame: 48-Frame, “N” Flange Oil Valve Gas Valve Power: 120 vac/60 Hz Damper motor with End Switch: Honeywell M436A |
|
|
Ignition
|
Carlin Model 41000 solid state electronic ignition
Ignition Voltage: 14,000 volts |
|
|
Agencies
|
UL Listed: US
City of New York MEA Approval and State of Massachusetts Approval |
