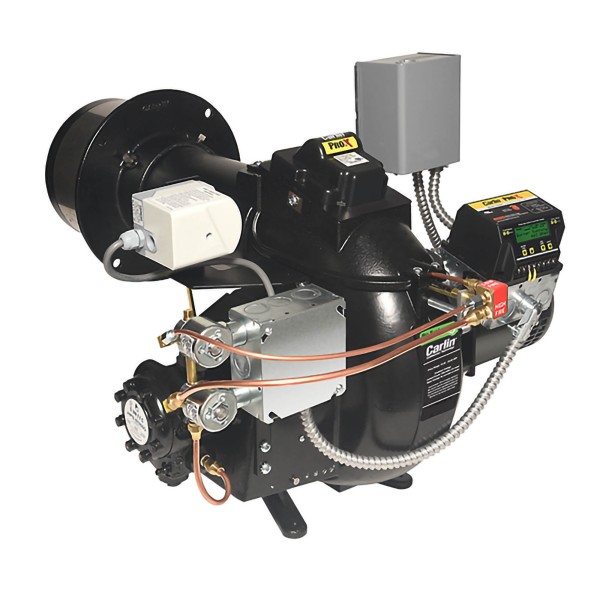

1150FFD Commercial Oil Burner
Specs At A Glance
Min output (GPH) 20
Max output (GPH) 35
Fuels #2 B20
Control Varies
Ignition Varies
The 1050FFD and 1150FFD advanced oil burners feature Carlin’s flame-funnel combustion head design. For unmatched fuel/air mixing, smooth light-offs and quiet running. The automatically-closed air damper and low-high-low step modulation (approximately 2:1 turndown) improve efficiency by closer matching of output.
To demand and reduced stand-by losses typically savings of 15-20% in seasonal fuel usage when compared to single-stage flame retention burners. Proven for years in the field and in extensive boiler and furnace testing, these burners will meet your needs for commercial oil-burning applications.
Input
1050FFD: High Fire: 15.0 to 25.0 GPH, Low Fire: 9.0 to 12.0 GPH
1150FFD: High Fire: 20.0 to 35.0 GPH, Low Fire: 12.0 to 15.0 GPH
1150FFD: High Fire: 20.0 to 35.0 GPH, Low Fire: 12.0 to 15.0 GPH
Fuels
U.S.– No. 1 or No. 2 Fuel Oil
Canada– No. 1 Oil or No. 2 Furnace Oil
Canada– No. 1 Oil or No. 2 Furnace Oil
Nozzles
(3) 45¡ “SS” Hago
Fuel Unit
2-Stage, “H” Style, 100 PSIG
Oil Valves
(2) Oil solenoid valves
Control
1050FFD (To 20 GPH Only): Carlin 60200 Primary Control
1050FFD & 1150FFD (Over 20 GPH): Specify Control Set
1050FFD & 1150FFD (Over 20 GPH): Specify Control Set
Electrical
Power:120 vac/60Hz/1-Phase
Limit Circuit Input (60200 Primary): 120 vac/60 Hz
Limit Circuit Input (60200 Primary): 120 vac/60 Hz
Control Circuit Load: 120 vac, 1.2 amps
Motor: 1050FFD: 1 HP, 3450 RPM, Standard 115/208-230 vac, 60 Hz, 1 Phase, 12.0/6.2 amps, Optional 208-230/460 vac, 60 Hz, 3 Phase, 3.7/1.85 amps 1150FFD: 1 1/2 HP, 3450 RPM, 60 Hz, Standard 115/208-230 vac, 60 Hz, 1 Phase, 13.4/7.4 amps, Optional 208-230/460 vac, 60 Hz, 3 Phase, 5.0/2.5 amps Motor Frame: 1050FFD: 56C Frame 1150FFD: 56C Frame
Oil Valve Power: 120 vac/60 Hz
Damper Motor (With End Switch): Honeywell M436A
Limit Circuit Input (60200 Primary): 120 vac/60 Hz
Limit Circuit Input (60200 Primary): 120 vac/60 Hz
Control Circuit Load: 120 vac, 1.2 amps
Motor: 1050FFD: 1 HP, 3450 RPM, Standard 115/208-230 vac, 60 Hz, 1 Phase, 12.0/6.2 amps, Optional 208-230/460 vac, 60 Hz, 3 Phase, 3.7/1.85 amps 1150FFD: 1 1/2 HP, 3450 RPM, 60 Hz, Standard 115/208-230 vac, 60 Hz, 1 Phase, 13.4/7.4 amps, Optional 208-230/460 vac, 60 Hz, 3 Phase, 5.0/2.5 amps Motor Frame: 1050FFD: 56C Frame 1150FFD: 56C Frame
Oil Valve Power: 120 vac/60 Hz
Damper Motor (With End Switch): Honeywell M436A
Ignition
Carlin Model 41000 solid state electronic ignition Ignition Voltage: 14,000 volts
Agencies
UL Listed: US & Canada
Commercial Oil Burner Brochure

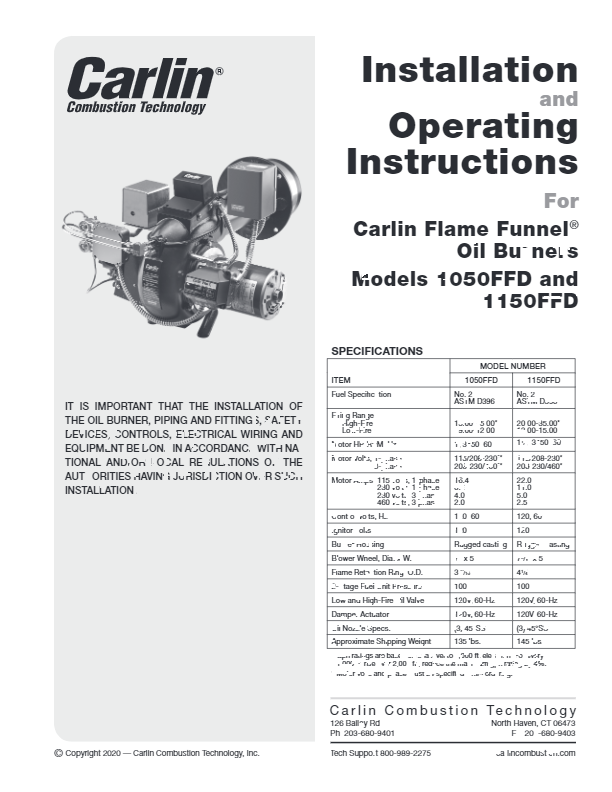

1050FFD / 1150FFD Advanced Oil Burner Instruction Manual
-
1150FFD Commercial Oil Burner 7311415U43
Min output (GPH) 20Max output (GPH) 35Fuels #2 B20Control Honeywell EMX43UVIgnition 41000 -
1150FFD Commercial Oil Burner 7311415U43N
Min output (GPH) 20Max output (GPH) 35Fuels #2 B20Control Honeywell EMX43UVIgnition 41000
