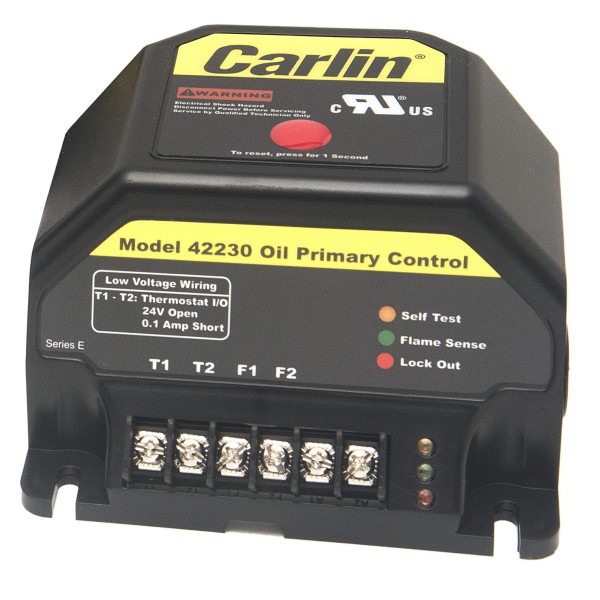

42230 PrimaryControl

Specs At A Glance

TFI (secs) Fixed 30

Pre purge N/A

Post Purge N/A

Recycles Yes

Ignition Type Interuptted

Interrupted Duty Ignition
15-Second Trial for Ignition 40200 (1.3 second flame failure response time (FFRT)
30-Second Tiral for Ignition 42230 (1.3 second flame failure response time (FFRT)
Recycle on flame Failure
Thermostat/aquastat Compatible
SMC (Safety Monitoring Curcuit) Technology

Power Input(From Limit Circuit)

120 vac, 60 Hz, 10 VA

Motor Load

10 FLA, 60 LRA

Ignitor Load

120 vac, 60 Hz, 500 VA

Operating Temperature Limits

+32ºF to +140ºF

Storage Temperature Limits

-40ºF to +185ºF

Thermostat Anticipator Current

0.1 A, AC

Agencies

UL & ULC Recognized Component United States & Canada
