Pro-X 45000 Universal Ignitor
Specs At A Glance
The Pro-X 45000 Universal Ignitor is Carlin’s most durable ignitor ever. Built to last and tested through hundreds of thousands of on/off cycles at high temperatures at maximum voltage, this ignitor defines durable. But long life is only half the story. The Pro-X 45000 is Universal. The rugged thermoplastic housing features mounting locations for virtually any burner, any brand. If you’re looking for a tough as nails ignitor that will fit any burner you work with, the Pro-X 45000 is for you.
Power Input : 120 vac, 60 hz, 40 va
Ignitor Output : 19 kv, 35mA RMS
Secondary Grounding: Midpoint
Operating Temperature Limits: +32 ºF to +140 ºF
Storage Temperature Limits : -40 ºF to + 185 ºF
Agencies: UL Recognized U.S and Canada
Available in (3) configurations:
| Part# | Description |
| 45000S | Universal Ignitor – Mounts to virtually any manufacturer’s existing ignitor base plate. |
| 45000S0CAS | 45000 Ignitor with Baseplate – Carlin Residential Burners |
| 45000S0BK1 | 45000 Ignitor with Baseplate – Beckett AF, AFG |

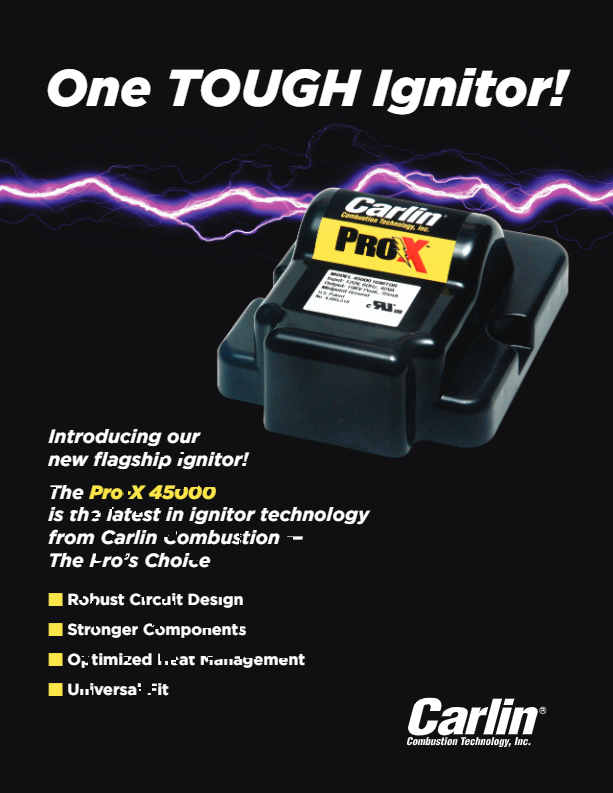

45000 Universal Ignitor Sell Sheet
Ignitor Test Procedure

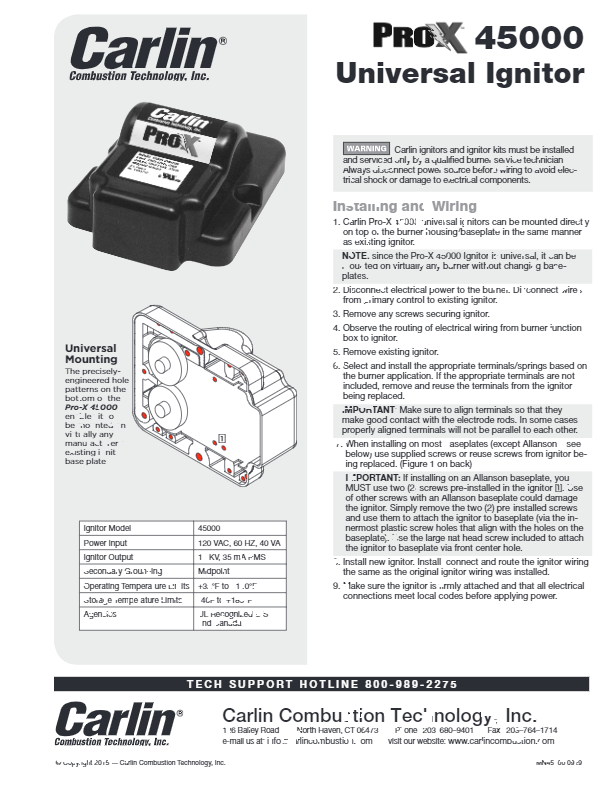

45000 Universal Ignitor Data Sheet
