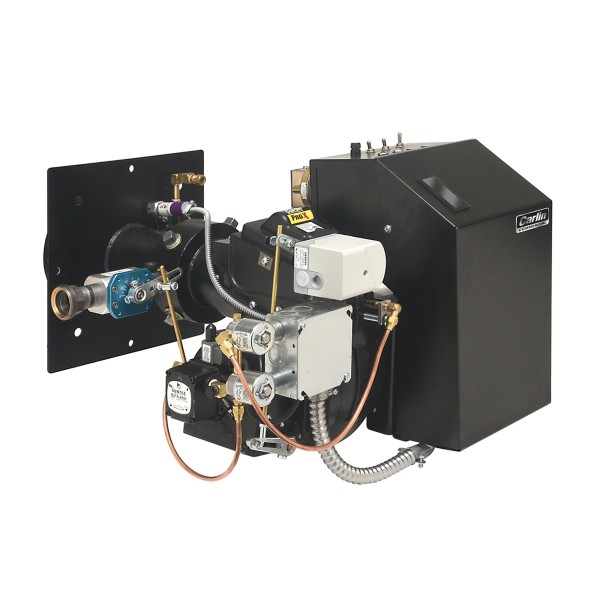

702GO Commercial Dual Fuel Burner
Specs At A Glance
Min output (BTUH) 840,000
Max output (BTUH) 1,600,000
Fuels Oil Gas
Control Honeywell RM7897C
Ignition 45000
Introducing the newly upgraded, 702G/O Dual Fuel Commercial Burner!
Features include…
- Robust build designed to withstand demanding use in both Low-Fire and High-Fire
- Upgraded, state-of-the art components including our new pilot design, low profile panel with optional configurations and Siemens damper actuator
- Designed with technicians in mind for simple adjustments and servicing
- Fully assembled Gas Trains available with standard pressure, low pressure, and vent-less
- All firing rates use the same air handling parts with simple adjustments of the combustion head and air shutter
- Short lead times to get YOU the burner when YOU need it
- Use with #2 Oil & Natural Gas/ Propane
Oil Input
High fire: 6.0 to 11.2 GPH
Gas Input
High fire: 840 to 1,600 MBH
Fuel
No. 1 or No. 2 Fuel Oil Natrual Gas or Propane
Fuel Unit
2-Stage, 150 PSIG
Oil Valves
(2) Oil solenoid valves
Control
Honeywell RM7897C
Electrical
Power:120 vac/60Hz/1-Phase
Limit Circuit Input: 120 vac/60 Hz
Control Circuit Load: 120 vac, 1.2 amps
Oil Valve Power: 120 vac/60 Hz
Damper Motor (With End Switch): Siemens SQN71
Limit Circuit Input: 120 vac/60 Hz
Control Circuit Load: 120 vac, 1.2 amps
Oil Valve Power: 120 vac/60 Hz
Damper Motor (With End Switch): Siemens SQN71
Motor
1/2 hp, 3450 rpm, 48-frame, ÒNÓ flange 115 / 208-230 vac/60 hz/1-ph, 8.4 / 3.8-4.2 amps
Ignition
Gas: Carlin Model 41800 Solid State Ignitor Ignition Voltage:9000 volts
Oil: Carlin Model 45000 solid state ignitor Ignition Voltage: 14000 volts
Oil: Carlin Model 45000 solid state ignitor Ignition Voltage: 14000 volts
Agencies
UL Listed: US & Canada
Derate Chart

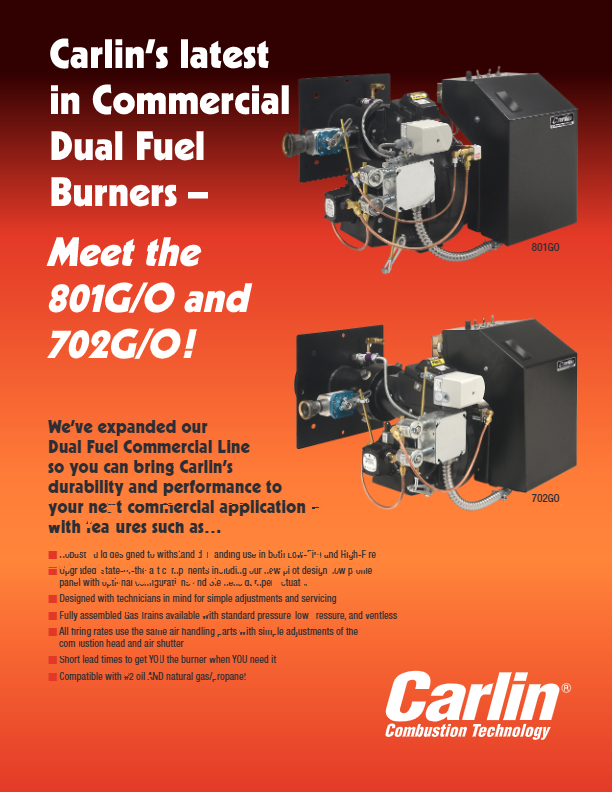

801GO & 702GO Commercial Dual Fuel Burner Sales Sheet
