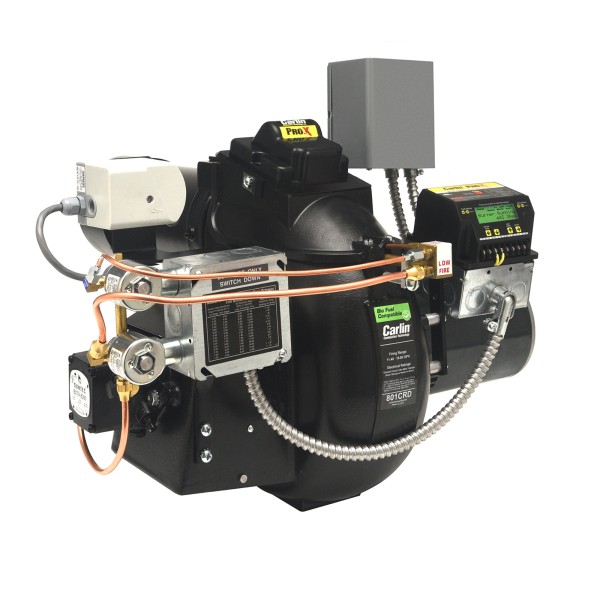

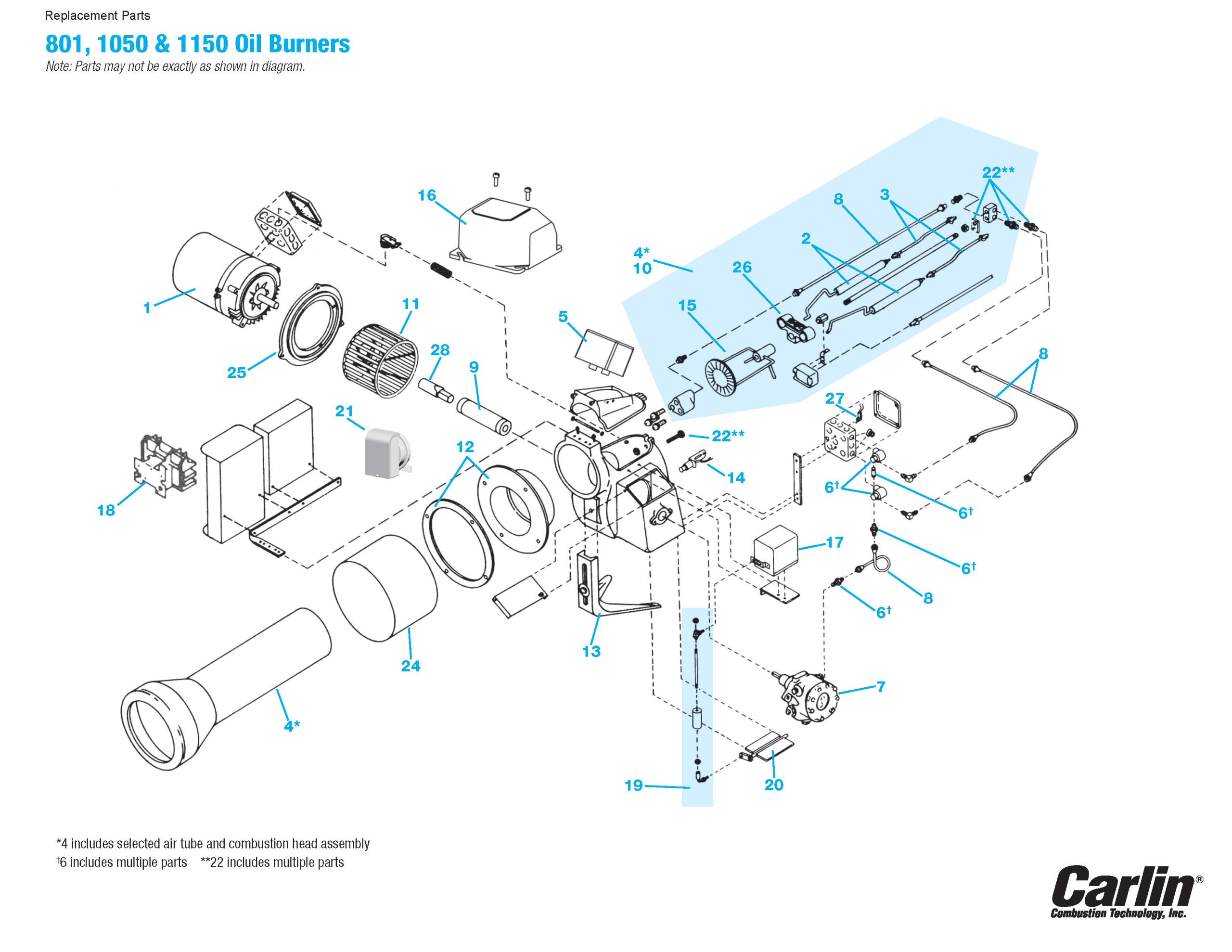

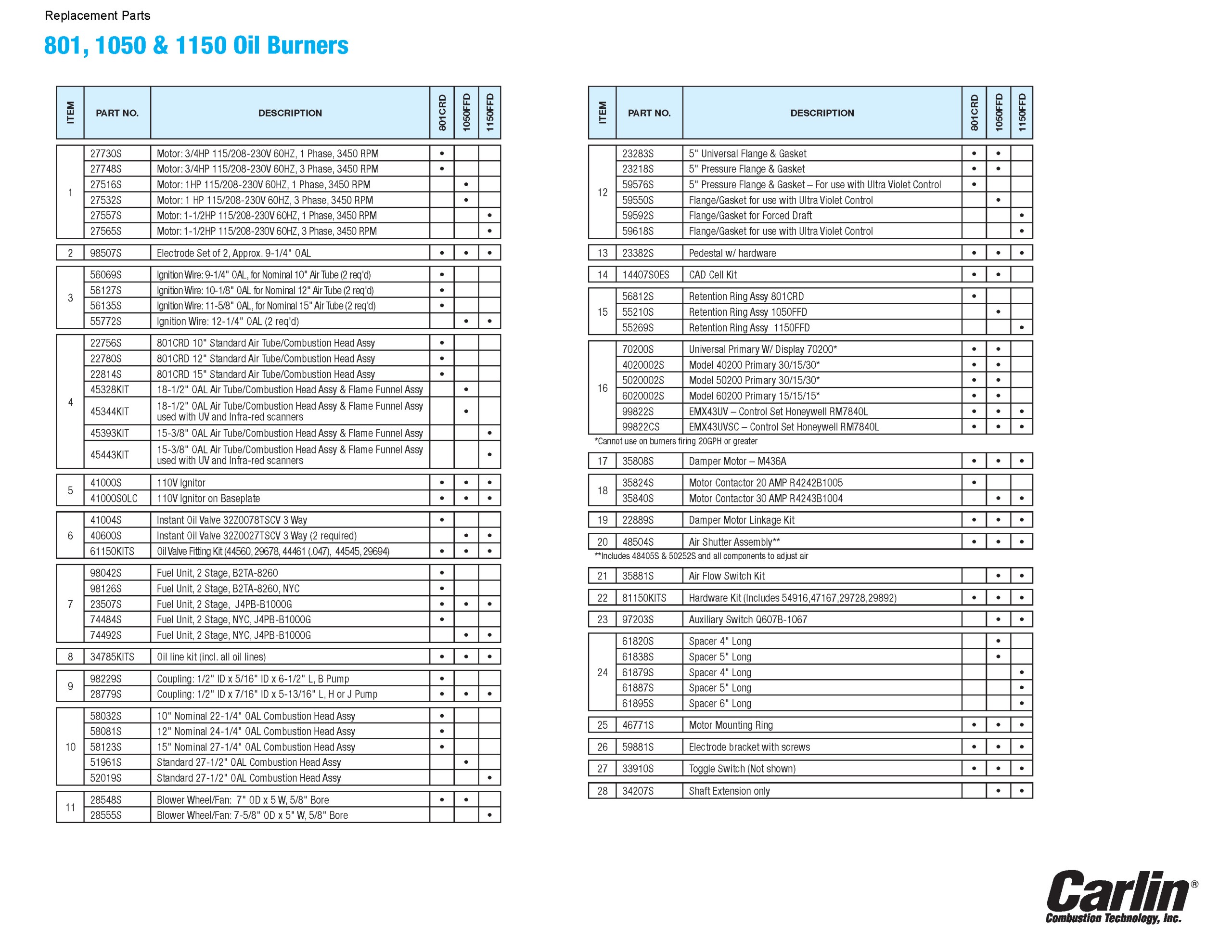

801CRD Commercial Oil Burner
Specs At A Glance
Min output (GPH) 11.4
Max output (GPH) 19.8
Fuels #2 B20
Control 70200
Ignition 45000
The 701CRD and 801CRD advanced oil burners feature Carlin’s adjustable combustion head assembly – for unmatched fuel/air mixing, smooth light-offs and quiet running.
The automatically-closed air damper and low-high-low step modulation (approximately 2:1 turndown) improve efficiency by closer matching of output to demand and reduced stand-by losses. Typically savings of 15-20% in seasonal fuel usage when compared to single-stage flame retention burners. Proven for years in the field and in extensive boiler and furnace testing, these burners will meet your needs for commercial oil-burning applications.
Input
701CRD: High Fire: 6.0 to 13.2 GPH,Low Fire: 3.6 to 6.6 GPH
801CRD: High Fire: 11.4 to 19.8 GPH, Low Fire: 6.6 to 8.4 GPH
801CRD: High Fire: 11.4 to 19.8 GPH, Low Fire: 6.6 to 8.4 GPH
Fuels
U.S.– No. 1 or No. 2 Fuel Oil
Canada– No. 1 Oil or No. 2 Furnace Oil
Canada– No. 1 Oil or No. 2 Furnace Oil
Nozzles
Low Fire Nozzle, (1) High Fire Nozzle, pattern and angle vary with application
Fuel Unit
2-Stage,”B” Style, 150 PSIG
Oil Valves
(2) Oil solenoid valves
Control
Carlin 60200 Primary Control
Electrical
Power:120 vac/60Hz/1-Phase
Limit Circuit Input (60200 Primary): 120 vac/60 Hz
Control Circuit Load: 120 vac, 1.2 amps
Motor: 701CRD: 1/2 HP, 3450 RPM, 115/208-230 vac, 60 Hz, 1 phase, 8.4/3.8-4.2 amps 801CRD: 3/4 HP, 3450 RPM, 60 Hz, 115/208-230 vac, 60 Hz, 1phase, 9.8/4.8-4.9 amps. Optional 208-230/460 vac, 60 Hz, 3 phase, 3.0-3.2/1/6 amps
Motor Frame: 701CRD: 48-Frame, “N” Flange 801CRD: 56C-Frame
Oil Valve Power: 120 vac/60 Hz
Damper Motor (With End Switch): Honeywell M436A
Limit Circuit Input (60200 Primary): 120 vac/60 Hz
Control Circuit Load: 120 vac, 1.2 amps
Motor: 701CRD: 1/2 HP, 3450 RPM, 115/208-230 vac, 60 Hz, 1 phase, 8.4/3.8-4.2 amps 801CRD: 3/4 HP, 3450 RPM, 60 Hz, 115/208-230 vac, 60 Hz, 1phase, 9.8/4.8-4.9 amps. Optional 208-230/460 vac, 60 Hz, 3 phase, 3.0-3.2/1/6 amps
Motor Frame: 701CRD: 48-Frame, “N” Flange 801CRD: 56C-Frame
Oil Valve Power: 120 vac/60 Hz
Damper Motor (With End Switch): Honeywell M436A
Ignition
Carlin Model 41000 solid state electronic ignition Ignition Voltage: 14,000 volts
Agencies
UL Listed: US & Canada
Commercial Oil Burner Brochure
701CRD / 801CRD Oil Burner Instruction Manual
Siemens SQN71 Damper Actuator Supplement
Siemens SQN71 Instructions
-
