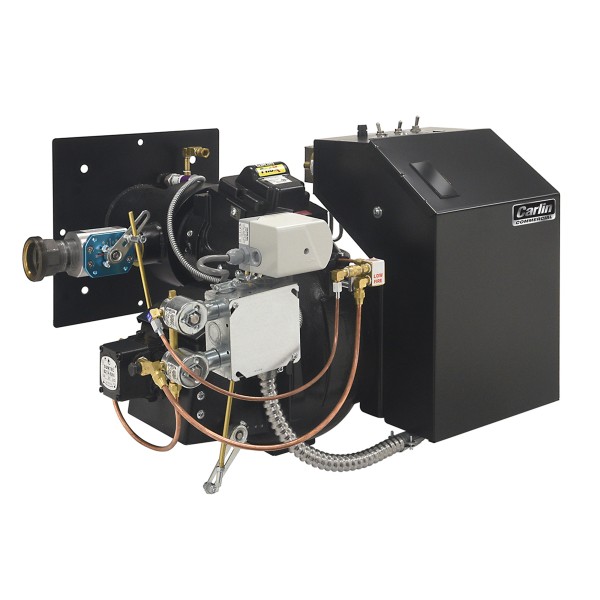

Introducing the latest entry to our Dual Fuel Commercial Burner Line, the 801GO!

Features includeÉ

• Robust build designed to withstand demanding use in both Low-Fire and High-Fire
• Upgraded, state-of-the art components including our new pilot design, low profile panel with optional configurations and Siemens damper actuator
• Designed with technicians in mind for simple adjustments and servicing
• Fully assembled Gas Trains available with standard pressure, low pressure, and vent-less
• All firing rates use the same air handling parts with simple adjustments of the combustion head and air shutter
• Short lead times to get YOU the burner when YOU need it
• Use with #2 Oil & Natural Gas/ Propane

Tech Specs

Oil Input

801 G/O [High Rate (51600B)]: High fire: 15 to 17 GPH
801 G/O [Low Rate (51600A)]: High fire: 10.4 to 15 GPH

Gas Input

801 G/O [High Rate (51600B)]: High fire: 2100 to 2500 MBH
801 G/O [Low Rate (51600A)]: High fire: 1400 to 2100 MBH

Fuel

No. 1 or No. 2 Fuel Oil Natrual Gas or Propane

Fuel Unit

2-Stage, 150 PSIG

Oil Valves

(2) Oil solenoid valves

Control

Honeywell RM7897C

Electrical

Power:120 vac/60Hz/1-Phase
Limit Circuit Input: 120 vac/60 Hz
Control Circuit Load: 120 vac, 1.2 amps
Oil Valve Power: 120 vac/60 Hz
Damper Motor (With End Switch): Siemens SQN71

Motor

801 G/O [High Rate (51600B)]: 1 1/2 hp, 3450 rpm, 56C-frame208-230 / 460 vac/60 hz/3-ph, 3.0-3.2 / 1.6 amps
801 G/O [Low Rate (51600A)]: 3/4 hp, 3450 rpm, 56C-frame 115 / 208-230 vac/60 hz/1-ph, 9.8 / 4.8-4.9 amps

Ignition

Gas: Carlin Model 41800 Solid State Ignitor Ignition Voltage:9000 volts
Oil: Carlin Model 45000 solid state ignitor Ignition Voltage: 14000 volts

Agencies

UL Listed: US & Canada

Literature

801GO & 702GO Commercial Dual Fuel Burner Sales Sheet

801G/O Dual Fuel Burner Instruction Manual

OEM Ordering Matrix - 702GO & 801GO

• 801GO Commercial Dual Fuel Burner 51600A

  Min output (BTUH) 1,400,000
  Max output (BTUH) 2,100,000
  Fuels Oil Gas
  Control Honeywell RM7897C
  Ignition 45000

• 801GO Commercial Dual Fuel Burner 51600AN

  Min output (BTUH) 1,400,000
  Max output (BTUH) 2,100,000
  Fuels Oil Gas
  Control Honeywell RM7897C
  Ignition 45000

• 801GO Commercial Dual Fuel Burner 51600B

  Min output (BTUH) 2,100,000
  Max output (BTUH) 2,499,999
  Fuels Oil Gas
  Control Honeywell RM7897C
  Ignition 45000

• 801GO Commercial Dual Fuel Burner 51600BN

  Min output (BTUH) 2,100,000
  Max output (BTUH) 2,499,999
  Fuels Oil Gas
  Control Honeywell RM7897C
  Ignition 45000
