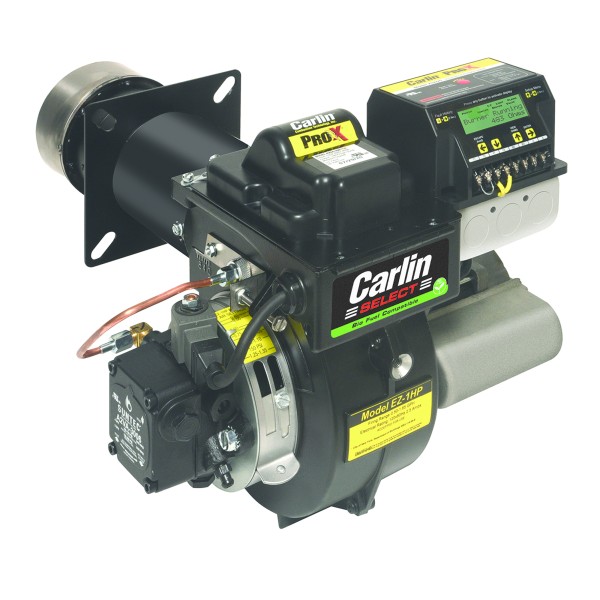

Carlin Select Residential Oil Burner

Ready When You Are:

Always looking to set the standard, all Carlin Residential Oil Burners are now UL Listed for B100*. This marks the next step in the industry’s commitment to a clean carbon-free environment that we are very proud to play a role in. Get the same Carlin burner you’ve come to rely on, now UL Listed for B100! Confidently burn #2, B5, B100 or any biofuel blend in between.

*B20 manufactured between 2/16/2021 and 11/17/2023

*B100 manufactured after 11/20/2023

Advanced Performance for today’s Demanding Applications!

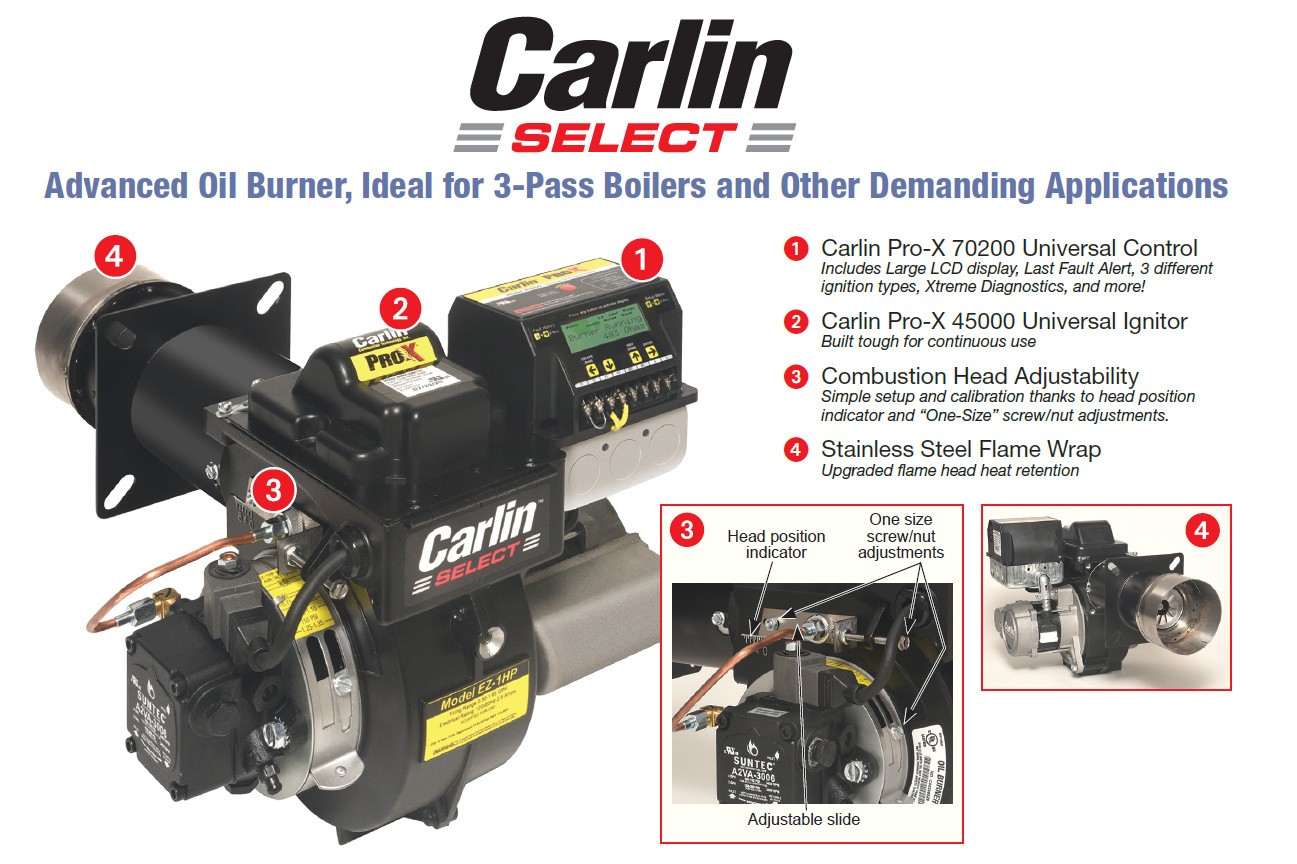

Designed with technicians in mind, the Carlin EZ Select provides added flexibility for 3-Pass Boilers and other demanding applications, with features including:

Adjustable head for simple setup and precision combustion
Stainless steel flame wrap for added heat retention, delivering smooth light-offs and quiet combustion
Factory-set and shipped to OEM specs for optimal appliance efficiency and performance straight out of the box
Pro-X 70200 Universal Oil Primary with advanced diagnostics and plain language display for fast, accurate repairs

Tech Specs

Input

EZ-1, EZ-1HP: 0.50 to 1.65 GPH

Fuels

U.S. – No. 1 or No. 2 Fuel Oil
Canada – No. 1 Oil or No. 2 Furnace Oil

Electrical

Power – 120 VAC/60 Hz/1-phase
Current – Approximately 2.5 amps
Limit circuit input – 120 VAC/60 Hz
Motor (PSC) – 1/6 HP, 3450 RPM
Oil valve power – 120 VAC/60 Hz
Alarm contacts (isolated) – 24 VAC/VDC, 2 amps

Ignition

Carlin Model Pro-X 45000 solid state electronic ignition
Ignition Voltage: 19,000 volts

Control

Carlin Model Pro-X 70200 Microprocessor Control

Operating Temperature Limits

Maximum Ambient: 140ºF (60¡ C)

Agencies

UL Listed: US & Canada

Literature

Carlin Select Burner Sales Sheet

Carlin Select Burner Installation and Operation Manual

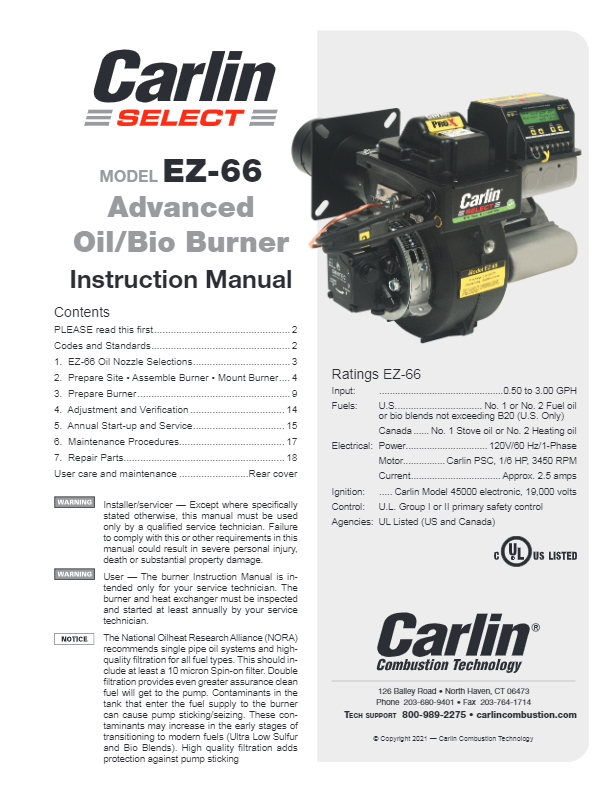

Carlin Select EZ 66 Installation Manual
