EZGas Pro Residential Gas Burner

Specs At A Glance

As a natural gas conversion burner, this model is available with or without a burner cover. The EZGas Pro burner converts existing oil-fired boilers, furnaces, and water heaters to natural gas or propane at a fraction of the cost of replacing the appliance. This natural gas converter comes factory packed with combustion control and gas fuel train. Unlike other conversion burners, it does not require a refractory liner – fires with or without a combustion chamber. Proven in extensive boiler and furnace testing, these gas conversion burners will meet your needs for residential gas burning applications. If you have any questions about this or any other oil to gas conversion burner, please contact us at your convenience.





Input

50,000 to 275,000 BTUHs

Fuels

Natural Gas or Propane Gas Maximum Supply Pressure: 14 inches w.c. Minimum Supply Pressure: 5.0 inches w.c. Manifold Pressure: 3.5 inches w.c.

Control

Carlin 60200FR Microprocessor Control 4 sec. Trial for Ignition (TFI)1.3 Sec. FFRT Pre-purge and post-purge Serviceman Reset Protection Latch-up after three consecutive lockouts Interrupted Duty Ignition Recycle on Flame Failure

Electrical

Power:120 vac, 60Hz, 1-Phase

Current: Approximately 2.0 Amps

Limit Circuit Input: 120 vac, 60 Hz

Motor: 1/15 HP, 3450 RPM, 60 Hz

Motor Frame: 48 Frame, “M” Flange

Fuel Valve Power: 120 vac, 60 Hz

Ignition

Carlin Model 41800 Solid State Electronic Ignition Ignition Voltage: 9,000 volts

Orifice Selection

Agencies

UL Listed: US & Canada – US per ANSI Z21.17, Canada per CSA 2.7















EZGAS-Pro, White Roger Gas Valve Retro Fit Supplement

EZ Gas Pro Burner Sales Brochure

EZ Gas w/9-Slot Diffuser

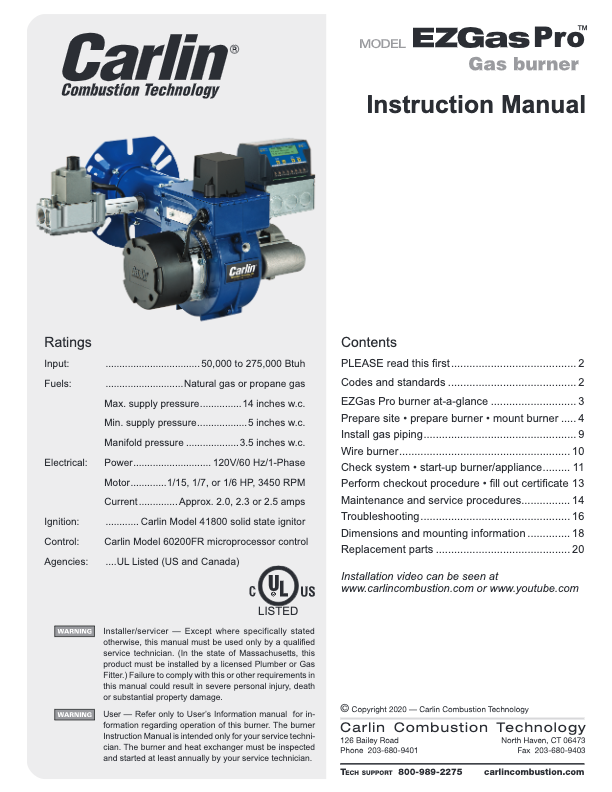

EZ Gas Pro Instruction Manual

• EZGas Pro Residential Gas Burner 9859210AFR1A

  Min output (BTUH) 150,000
  Max output (BTUH) 275,000
  Fuels LP NG
  Control 60200FR
  Ignition 41800

• EZGas Pro Residential Gas Burner 9859210BFR1

  Min output (BTUH) 50,000
  Max output (BTUH) 175,000
  Fuels LP NG
  Control 60200FR
  Ignition 41800

• EZGas Pro Residential Gas Burner 9859210FRU

  Min output (BTUH) 50000
  Max output (BTUH) 275000
  Fuels LP NG
  Control 60200FR
  Ignition 41800

• EZGas Pro Residential Gas Burner 9859210FRU1

  Min output (BTUH) 50000
  Max output (BTUH) 275000
  Fuels LP NG
  Control 60200FR
  Ignition 41800

• EZGas Pro Residential Gas Burner 9859210SFR1

  Min output (BTUH) 70,000
  Max output (BTUH) 230,000
  Fuels LP NG
  Control 60200FR
  Ignition 41800

• EZGas Pro Residential Gas Burner 9859212AFR1

  Min output (BTUH) 150,000
  Max output (BTUH) 275,000
  Fuels LP NG
  Control 60200FR
  Ignition 41800

• EZGas Pro Residential Gas Burner 9859212BFR1

  Min output (BTUH) 50,000
  Max output (BTUH) 175,000
  Fuels LP NG
  Control 60200FR
  Ignition 41800

• EZGas Pro Residential Gas Burner 9859212SFR1

  Min output (BTUH) 70,000
  Max output (BTUH) 230,000
  Fuels LP NG
  Control 60200FR
  Ignition 41800

• EZGas Pro Residential Gas Burner 9859214AFR1

  Min output (BTUH) 150,000
  Max output (BTUH) 275,000
  Fuels LP NG
  Control 60200FR
  Ignition 41800

• EZGas Pro Residential Gas Burner 9859214BFR1

  Min output (BTUH) 50,000
  Max output (BTUH) 175,000
  Fuels LP NG
  Control 60200FR
  Ignition 41800

• EZGas Pro Residential Gas Burner 9859214FRU

  Min output (BTUH) 50000
  Max output (BTUH) 275000
  Fuels LP NG
  Control 60200FR
  Ignition 41800

• EZGas Pro Residential Gas Burner 9859214FRU1

  Min output (BTUH) 50000
  Max output (BTUH) 275000
  Fuels LP NG
  Control 60200FR
  Ignition 41800

• EZGas Pro Residential Gas Burner 9859214SFR3

  Min output (BTUH) 70,000
  Max output (BTUH) 230,000
  Fuels LP NG
  Control 60200FR
  Ignition 41800

• EZGas Pro Residential Gas Burner 9859216AFR

  Min output (BTUH) 150,000
  Max output (BTUH) 275,000
  Fuels LP NG
  Control 60200FR
  Ignition 41800

• EZGas Pro Residential Gas Burner 9859216BFR

  Min output (BTUH) 50,000
  Max output (BTUH) 175,000
  Fuels LP NG
  Control 60200FR
  Ignition 41800

• EZGas Pro Residential Gas Burner 9859218AFR

  Min output (BTUH) 150,000
  Max output (BTUH) 275,000
  Fuels LP NG
  Control 60200FR
  Ignition 41800

• EZGas Pro Residential Gas Burner 9859218BFR1

  Min output (BTUH) 50,000
  Max output (BTUH) 175,000
  Fuels LP NG
  Control 60200FR
  Ignition 41800
