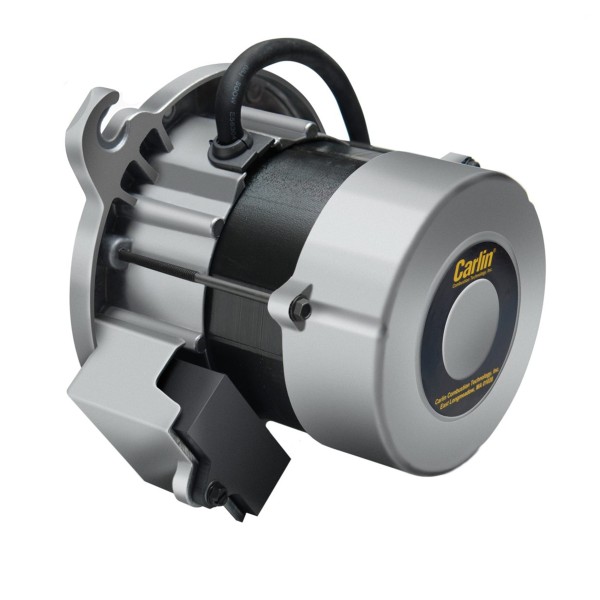

PSC Motors Residential Oil/ Gas Motors
- More Efficient both Starting and Running
- More Reliable
- Auto Reset Thermal Overload
- Quiet Sealed Ball Bearings
- Eliminates Centrifugal Start Switch
- More Versatile
- Replace 1/15 to 1/4 HP Motors
- Replaceable Capacitor
Model 98022
For Residential Burners
Power Input
120 vac, 1-Phase
Frequency
60 Hz
Rating
1/6 HP
Starting/Running Currents
6.1 Amps, 1.8 RMS
Speed
3450 RPM
Frame
48M
Lead Length
10 Inches
Rotation (Looking from Rear)
Clockwise
Capacitor Location (Looking from Rear)
9:00
Capacitor
16 µF
Agencies
UL & ULC Recognized Component (US &Canada)
Model 98611
For Carlin 201Gas Burner
Power Input
120 vac, 1-Phase
Frequency
60 Hz
Rating
1/6 HP
Starting/Running Currents
6.1 Amps, 1.8 RMS
Speed
3450 RPM
Frame
48N
Lead Length
10 Inches
Rotation (Looking from Rear)
Clockwise
Capacitor Location (Looking from Rear)
9:00
Capacitor
16 µF
Agencies
UL & ULC Recognized Component (US &Canada)
Model 98627
For Residential Burners
Power Input
220/240 vac, 1-Phase
Frequency
50/60 Hz
Rating
1/6 HP
Starting/Running Currents
3.9 Amps, 1.0 RMS
Speed
2840/3390 RPM
Frame
48M
Lead Length
10 Inches
Rotation (Looking from Rear)
Clockwise
Capacitor Location (Looking from Rear)
9:00
Capacitor
5 µF
Agencies
UL & ULC Recognized Component (US &Canada)
Model 98628
For Becket AFII Burner
Power Input
120 vac, 1-Phase
Frequency
60 Hz
Rating
1/6 HP
Starting/Running Currents
6.1 Amps, 1.8 RMS
Speed
3450 RPM
Frame
48N5
Lead Length
20 Inches
Rotation (Looking from Rear)
Counterclockwise
Capacitor Location (Looking from Rear)
6:00
Capacitor
16 µF
Agencies
UL & ULC Recognized Component (US &Canada)
Model 98629
For Carlin EZ-Gas Burner
Power Input
120 vac, 1-Phase
Frequency
60 Hz
Rating
1/15 HP
Starting/Running Currents
4.3 Amps, 1.25 RMS
Speed
3450 RPM
Frame
48M
Lead Length
10 Inches
Rotation (Looking from Rear)
Clockwise
Capacitor Location (Looking from Rear)
9:00
Capacitor
12.5 µF
Agencies
UL & ULC Recognized Component (US &Canada)
Model 98630
For Carlin 201CRD & 301CRD Burners
Power Input
120 vac, 1-Phase
Frequency
60 Hz
Rating
1/4 HP
Starting/Running Currents
12.1 Amps, 2.7 RMS
Speed
3450 RPM
Frame
48N
Lead Length
10 Inches
Rotation (Looking from Rear)
Clockwise
Capacitor Location (Looking from Rear)
9:00
Capacitor
25 µF
Agencies
UL & ULC Recognized Component (US &Canada)
Model 98866
For Carlin 201Gas Burner, 201CRD & 301CRD Burners
Power Input
120 vac, 1-Phase
Frequency
60 Hz
Rating
1/6 HP
Starting/Running Currents
4.3 Amps, 1.25 RMS
Speed
1725 RPM
Frame
48N
Lead Length
10 Inches
Rotation (Looking from Rear)
Clockwise
Capacitor Location (Looking from Rear)

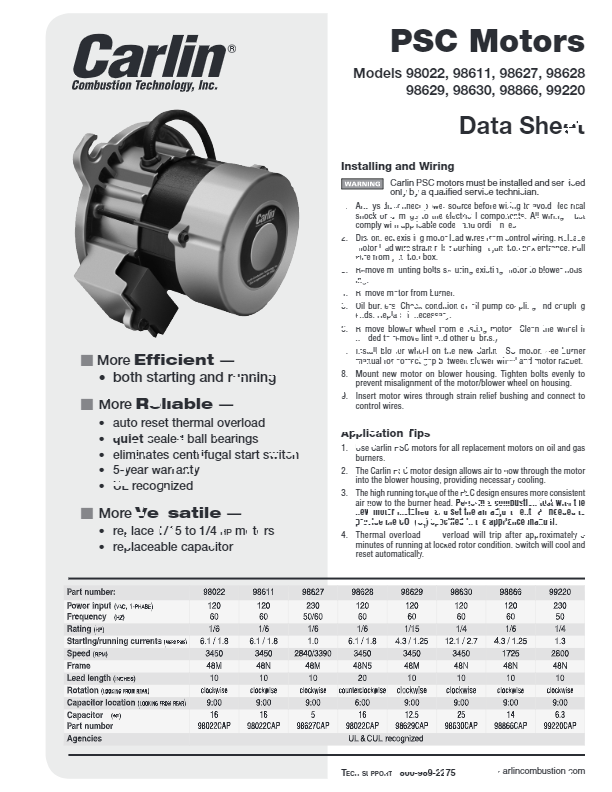

PSC Motors - Data Sheet
-
PSC Motors Residential Oil/ Gas Motors 98022
Power Input (VAC 1-Phase) 120Frequency (hz) 60Rating (HP) 1/6Speed (rpm) 3450 -
PSC Motors Residential Oil/ Gas Motors 98611
Power Input (VAC 1-Phase) 120Frequency (hz) 60Rating (HP) 1/6Speed (rpm) 3450 -
PSC Motors Residential Oil/ Gas Motors 98627
Power Input (VAC 1-Phase) 230Frequency (hz) 50/60Rating (HP) 1/6Speed (rpm) 2840/3390 -
PSC Motors Residential Oil/ Gas Motors 98629
Power Input (VAC 1-Phase) 120Frequency (hz) 60Rating (HP) 1/15Speed (rpm) 3450 -
PSC Motors Residential Oil/ Gas Motors 98630
Power Input (VAC 1-Phase) 120Frequency (hz) 60Rating (HP) 1/4Speed (rpm) 3450 -
PSC Motors Residential Oil/ Gas Motors 98866
Power Input (VAC 1-Phase) 120Frequency (hz) 60Rating (HP) 1/6Speed (rpm) 1725 -
PSC Motors Residential Oil/ Gas Motors 99220
Power Input (VAC 1-Phase) 230Frequency (hz) 50Rating (HP) 1/4Speed (rpm) 2800
