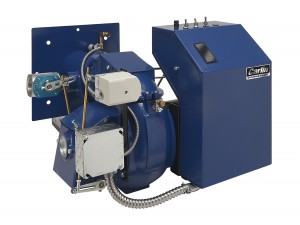

801GAS Commercial Gas Burner

Introducing the latest entry to our Commercial Gas Burner Line, the 801GAS!
Features include…
- Robust build designed to withstand demanding use in both Low-Fire and High-Fire
- Upgraded, state-of-the art components including our new pilot design, low profile panel with optional configurations and Siemens damper actuator
- Designed with technicians in mind for simple adjustments and servicing
- Fully assembled Gas Trains available with standard pressure, low pressure, and vent-less
- All firing rates use the same air handling parts with simple adjustments of the combustion head and air shutter
- Short lead times to get YOU the burner when YOU need it
| Gas Input | 801 GAS [High Rate (52600B)]: High fire: 2100 to 2500 MBH 801 GAS [Low Rate (52600A)]: |
| Fuel | Natural Gas or Propane |
| Control | Honeywell RM7897C |
| Electrical | Power: 120 vac/60Hz/1-Phase |
| Limit Circuit Input: 120 vac/60 Hz | |
| Control Circuit Load: 120 vac, 1.2 amps | |
| Damper Motor (With End Switch): Siemens SQN71 | |
| Motor | 801 GAS [High Rate (52600B)]:
1 1/2 hp, 3450 rpm, 56C-frame 208-230 / 460 vac/60 hz/3-ph, 3.0-3.2 / 1.6 amps 801 GAS [Low Rate (52600A)]: |
| Ignition | Carlin Model 41800 Solid State Ignitor Ignition Voltage: 9000 volts |
| Agencies | UL Listed: US & Canada |
