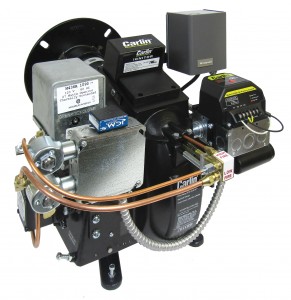

701CRD & 801CRD Commercial Oil Burners
Advanced Oil Burners – 6.0 to 13.2 GPH & 11.4 to 19.8 GPH
High Fire Input Capacity
The automatically-closed air damper and low-high-low step modulation (approximately 2:1 turndown) improve efficiency by closer matching of output to demand and reduced stand-by losses. Typically savings of 15-20% in seasonal fuel usage when compared to single-stage flame retention burners. Proven for years in the field and in extensive boiler and furnace testing, these burners will meet your needs for commercial oil-burning applications.
|
Input
|
701CRD: High Fire: 6.0 to 13.2 GPH,Low Fire: 3.6 to 6.6 GPH801CRD: High Fire: 11.4 to 19.8 GPH, Low Fire: 6.6 to 8.4 GPH |
|
| Fuels | U.S. – No. 1 or No. 2 Fuel Oil
Canada – No. 1 Oil or No. 2 Furnace Oil |
|
| Nozzles | Low Fire Nozzle, (1) High Fire Nozzle, pattern and angle vary with application | |
|
Fuel
Unit |
2-Stage,”B” Style, 150 PSIG | |
| Oil Valves |
(2) Oil solenoid valves | |
| Control | Carlin 60200 Primary Control | |
| Electrical | Power: 120 vac/60Hz/1-Phase
Limit Circuit Input (60200 Primary): 120 vac/60 Hz Control Circuit Load: 120 vac, 1.2 amps
Motor: 701CRD: 1/2 HP, 3450 RPM, 115/208-230 vac, 60 Hz, 1 phase, 8.4/3.8-4.2 amps 801CRD: 3/4 HP, 3450 RPM, 60 Hz, 115/208-230 vac, 60 Hz, 1phase, 9.8/4.8-4.9 amps. Optional 208-230/460 vac, 60 Hz, 3 phase, 3.0-3.2/1/6 amps Motor Frame: 701CRD: 48-Frame, “N” Flange 801CRD: 56C-Frame Oil Valve Power: 120 vac/60 Hz Damper Motor (With End Switch): Honeywell M436A |
|
| Ignition | Carlin Model 41000 solid state electronic ignition
Ignition Voltage: 14,000 volts |
|
|
Agencies
|
UL Listed: US & Canada |
