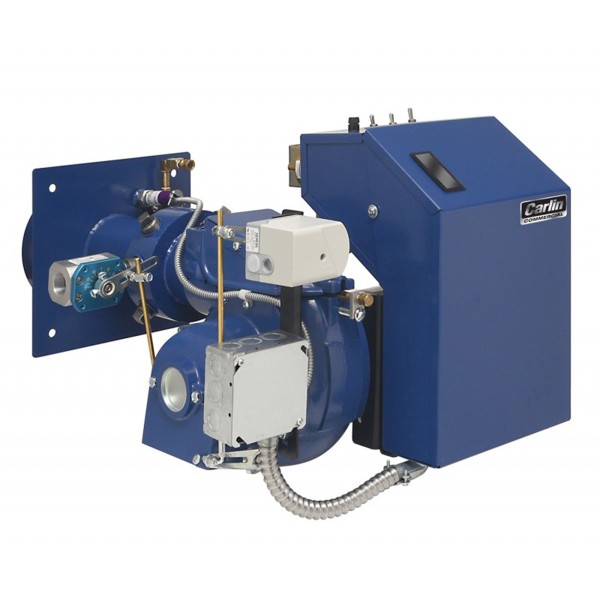

702GAS Commercial Gas Burner
Specs At A Glance
Min output (BTUH) 840,000
Max output (BTUH) 1,600,000
Fuels LP NG
Control Honeywell RM7897C
Ignition 41800
Introducing the newly upgraded, 702GAS Commercial Gas Burner!
Features include…
- Robust build designed to withstand demanding use in both Low-Fire and High-Fire
- Upgraded, state-of-the art components including our new pilot design, low profile panel with optional configurations and Siemens damper actuator
- Designed with technicians in mind for simple adjustments and servicing
- Fully assembled Gas Trains available with standard pressure, low pressure, and vent-less
- All firing rates use the same air handling parts with simple adjustments of the combustion head and air shutter
- Short lead times to get YOU the burner when YOU need it
Gas Input
High fire: 840 to 1,600 MBH
Fuel
Natural Gas or Propane
Control
Honeywell RM7897C
Electrical
Power:120 vac/60Hz/1-Phase
Limit Circuit Input: 120 vac/60 Hz
Control Circuit Load: 120 vac, 1.2 amps
Damper Motor (With End Switch): Siemens SQN71
Limit Circuit Input: 120 vac/60 Hz
Control Circuit Load: 120 vac, 1.2 amps
Damper Motor (With End Switch): Siemens SQN71
Motor
1/2 hp, 3450 rpm, 48-frame, ÒNÓ flange 115 / 208-230 vac/60 hz/1-ph, 8.4 / 3.8-4.2 amps
Ignition
Carlin Model 41800 Solid State Ignitor Ignition Voltage: 9000 volts
Agencies
UL Listed: US & Canada
Derate Chart
801GAS & 702GAS Commercial Burner Sales Sheet
702G/O Dual Fuel Burner Instruction Manual
801G/O Dual Fuel Burner Instruction Manual

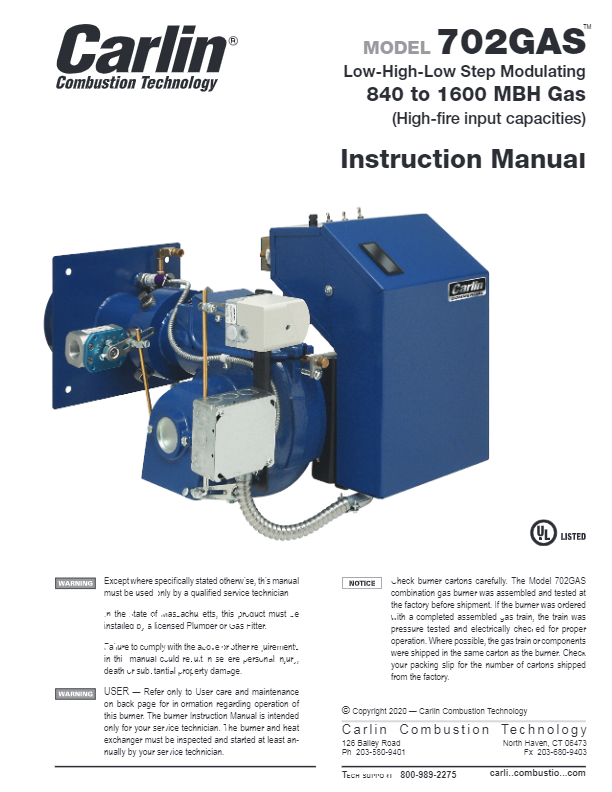

702GAS Instruction Manual
