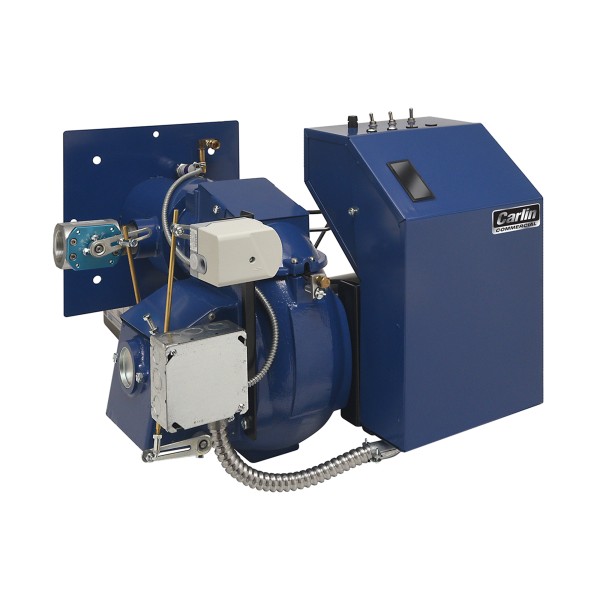

801GAS Commercial Gas Burner
Specs At A Glance
Min output (BTUH) 1,400,000
Max output (BTUH) 2,499,999
Fuels LP NG
Control Honeywell RM7897C
Ignition 41800
Introducing the latest entry to our Commercial Gas Burner Line, the 801GAS!
Features include
- Robust build designed to withstand demanding use in both Low-Fire and High-Fire
- Upgraded, state-of-the art components including our new pilot design, low profile panel with optional configurations and Siemens damper actuator
- Designed with technicians in mind for simple adjustments and servicing
- Fully assembled Gas Trains available with standard pressure, low pressure, and vent-less
- All firing rates use the same air handling parts with simple adjustments of the combustion head and air shutter
- Short lead times to get YOU the burner when YOU need it
Gas Input
801 GAS [High Rate (52600B)]: High fire: 2100 to 2500 MBH
801 GAS [Low Rate (52600A)]: High fire: 1400 to 2100 MBH
801 GAS [Low Rate (52600A)]: High fire: 1400 to 2100 MBH
Fuel
Natural Gas or Propane
Control
Honeywell RM7897C
Electrical
Power:120 vac/60Hz/1-Phase
Limit Circuit Input: 120 vac/60 Hz
Control Circuit Load: 120 vac, 1.2 amps
Damper Motor (With End Switch): Siemens SQN71
Limit Circuit Input: 120 vac/60 Hz
Control Circuit Load: 120 vac, 1.2 amps
Damper Motor (With End Switch): Siemens SQN71
Motor
801 GAS [High Rate (52600B)]: 1 1/2 hp, 3450 rpm, 56C-frame 208-230 / 460 vac/60 hz/3-ph, 3.0-3.2 / 1.6 amps
801 GAS [Low Rate (52600A)]: 3/4 hp, 3450 rpm, 56C-frame 115 / 208-230 vac/60 hz/1-ph, 9.8 / 4.8-4.9 amps
801 GAS [Low Rate (52600A)]: 3/4 hp, 3450 rpm, 56C-frame 115 / 208-230 vac/60 hz/1-ph, 9.8 / 4.8-4.9 amps
Ignition
Carlin Model 41800 Solid State Ignitor Ignition Voltage: 9000 volts
Agencies
UL Listed: US & Canada

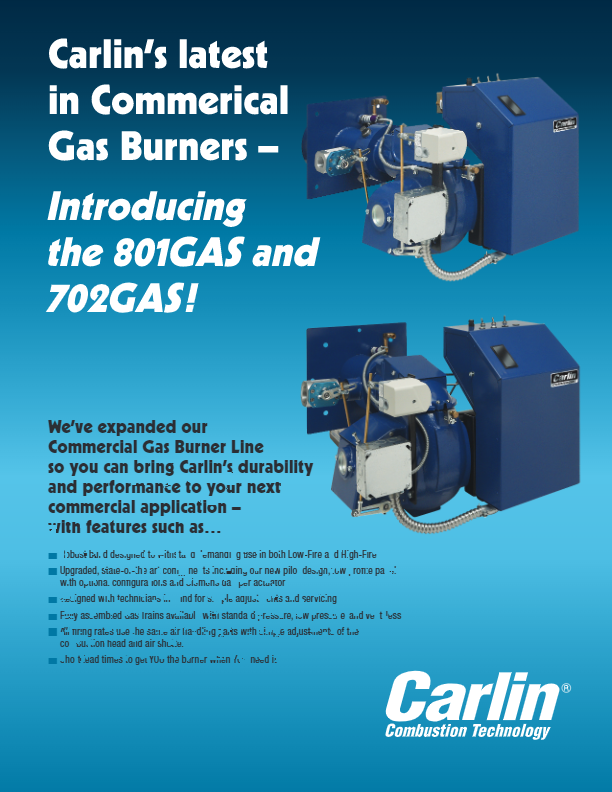

801GAS & 702GAS Commercial Burner Sales Sheet
702G/O Dual Fuel Burner Instruction Manual
801G/O Dual Fuel Burner Instruction Manual

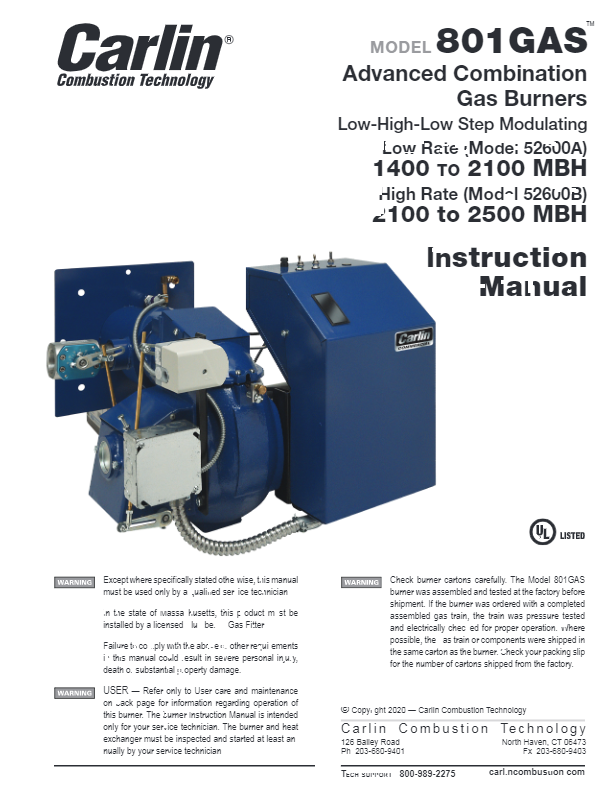

801GAS Instruction Manual

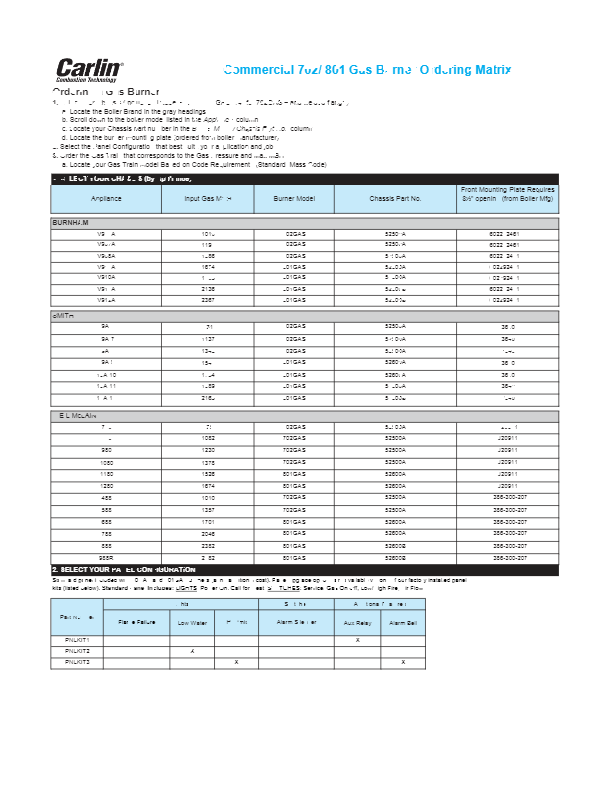

OEM Ordering Matrix - 702GAS & 801GAS
-
801GAS Commercial Gas Burner 52600A
Min output (BTUH) 1,400,000Max output (BTUH) 2,100,000Fuels LP NGControl Honeywell RM7897CIgnition 41800 -
801GAS Commercial Gas Burner 52600B
Min output (BTUH) 2,100,000Max output (BTUH) 2,499,999Fuels LP NGControl Honeywell RM7897CIgnition 41800
